FRONT CALIPER

LS650 BOULEVARD S40 2014 (L4) USA (E03)

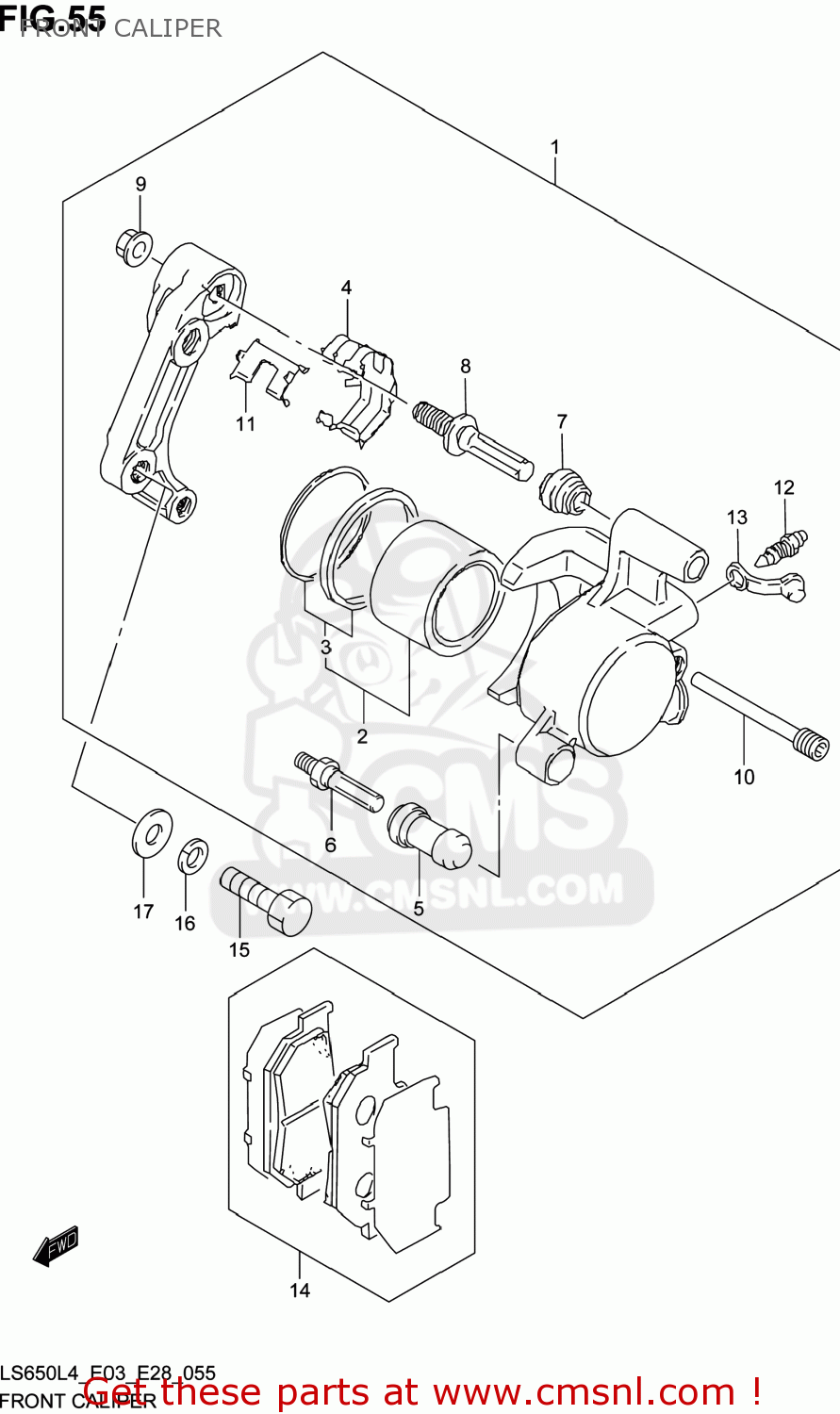

Front caliper diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

5930024B40999
ref: 1

CALIPER ASSY,FR

€ 0.00

5930024820
ref: 2

PISTON SET

€ 58.00

5930024810
ref: 3

SEAL SET,PISTON

€ 14.00

5931514600
ref: 4

SPRING

€ 6.50

5938613A00
ref: 5

BOOT

€ 6.50

5938227C30
ref: 6

BOLT

€ 7.50

5930314500
ref: 7

BOOT

€ 5.50

5930514500
ref: 8

PIN,SLIDE

€ 12.50

5930614500
ref: 9

NUT,SLIDE PIN

€ 2.50

5934514600
ref: 10

PIN,HANGER

€ 10.50

5931624B10
ref: 11

RETAINER

€ 6.00

5912101A00
ref: 12

BLEEDER

€ 8.50

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

5930024830
ref: 14

PAD SET (NAS)

€ 41.50

0910410029
ref: 15

BOLT(10X38)

€ 3.50

0916210008
ref: 16

WASHER,LOCK

€ 3.00

0832201107
ref: 17

WASHER

€ 2.50
