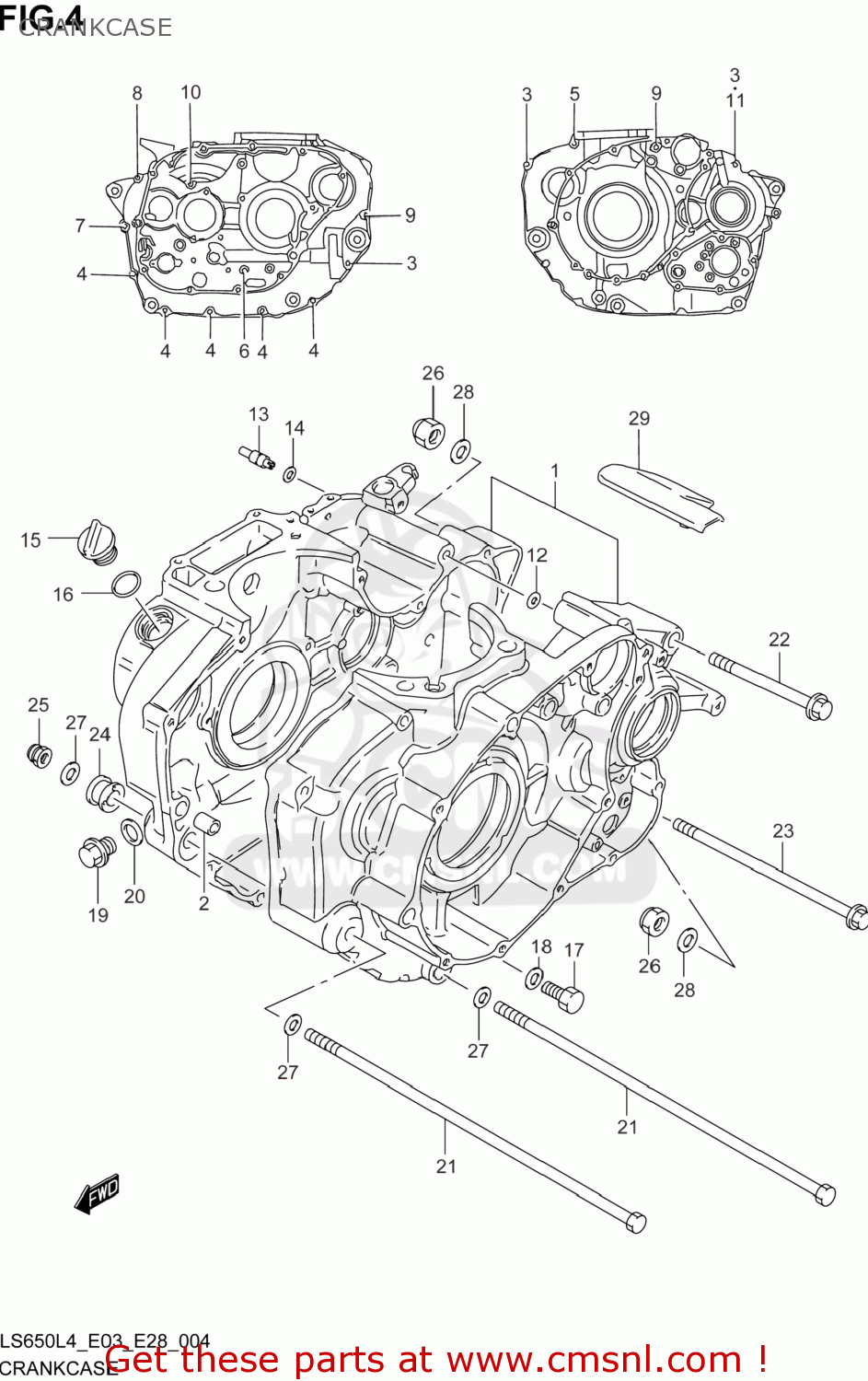

CRANKCASE

ref

part #

description

quantity

1

1130124870
ref: 1

CRANKCASE SET

€ 1,171.50

2

0920611007
ref: 2

PIN(8.4X11X20)

€ 1.50

3

015470640A
ref: 3

BOLT

€ 2.50

4

015470645A
ref: 4

BOLT

€ 2.50

5

015470660A
ref: 5

BOLT

€ 2.50

6

015470655A
ref: 6

BOLT

€ 2.50

7

0154706657
ref: 7

BOLT

€ 2.00

8

0154706657
ref: 8

BOLT

€ 2.00

9

015470670A
ref: 9

BOLT

€ 2.50

10

015470675A
ref: 10

BOLT

€ 2.00

11

0916806023
ref: 11

GASKET(5.8X13X1.2) (NAS)

€ 2.00

12

0928010013
ref: 12

O RING(D:2.4,ID:9.6)

€ 5.50

13

0949336004
ref: 13

JET,OIL GALLERY(18)

€ 8.00

14

0928004004
ref: 14

O RING(D:1.2,ID:4)

€ 2.00

15

1197125D00
ref: 15

PLUG,ENGINE OIL FILLER

€ 5.50

16

0928017003
ref: 16

O RING(D:3.1,ID:16.8)

€ 2.00

17

0924712011
ref: 17

PLUG(12X20)

€ 4.50

18

0916812002
ref: 18

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

19

0924714026
ref: 19

PLUG(14X12)

€ 3.50

20

0916814002
ref: 20
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

21

0910410034
ref: 21

BOLT(10X323)

€ 16.50

22

0910310087
ref: 22

BOLT(10X105)

€ 6.50

23

0910310053
ref: 23

BOLT(10X180)

€ 7.50

24

1161038400
ref: 24

SPACER,ENGINE MOUNT(L20)

€ 9.00

25

0915910064
ref: 25

NUT

€ 8.50

26

0915910047
ref: 26

NUT

€ 7.50

27

0832201107
ref: 27

WASHER

€ 2.50

28

083220110A
ref: 28

WASHER

€ 2.00

29

1138424B01
ref: 29

COVER,CRANKCASE START MOT

€ 18.00
