Buy Suzuki M Parts Online


BATTERY-SELENIUM RECTIFIER-MAIN WIRING HARNESS-IGNITION SWITCH

M15 M15D M12 1968 USA (E03)

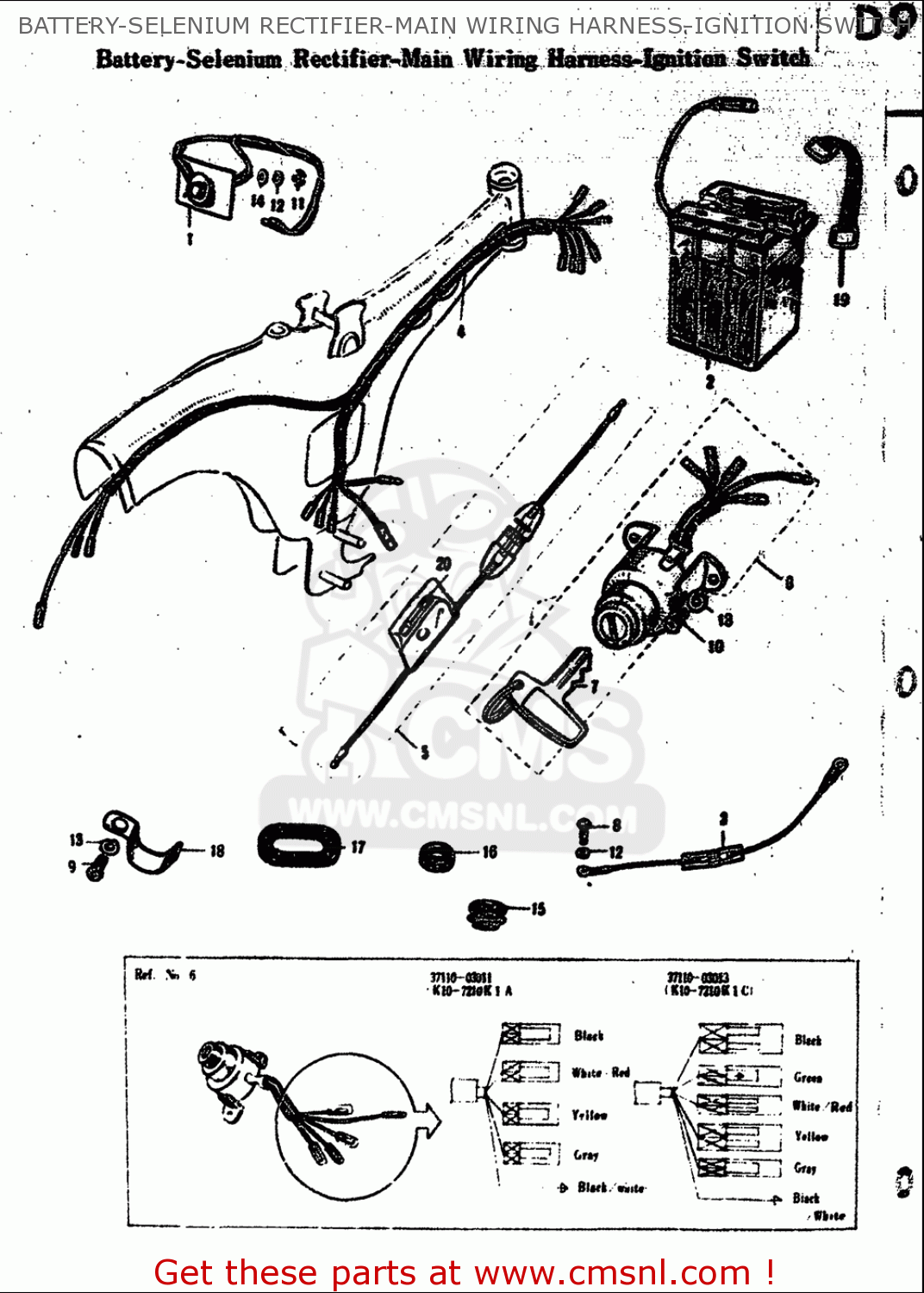

Battery-selenium rectifier-main wiring harness-ignition switch diagram M15 M15D M12 1968 USA (E03)

BATTERY-SELENIUM RECTIFIER-MAIN WIRING HARNESS-IGNITION SWITCH M15 M15D M12 1968 USA (E03)
BATTERY-SELENIUM RECTIFIER-MAIN WIRING HARNESS-IGNITION SWITCH M15 M15D M12 1968 USA (E03)
BATTERY-SELENIUM RECTIFIER-MAIN WIRING HARNESS-IGNITION SWITCH M15 M15D M12 1968 USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3280016A00
ref: 1
RECTIFIER ASSY
3280016A00
€ 10.50
2
3361003010
ref: 2
BATTERY ASSY(6N4-2A4.2AH)
3361003010
€ 42.00
10
0211206127
ref: 10
SCREW
0211206127
€ 2.00
11
0831000057
ref: 11
NUT
0831000057
€ 2.50
12
0832101057
ref: 12
WASHER,LOCK
0832101057
€ 2.00
13
0832101067
ref: 13
WASHER,LOCK
0832101067
€ 2.50
14
0832201057
ref: 14
WASHER
0832201057
€ 2.50
16
0930812002
ref: 16
GROMMET
0930812002
€ 2.00
19
0946200067
ref: 19
BAND
0946200067
€ 4.50
