MUFFLER-STAND-REAR BRAKE-FOOTREST-BRAKE LAMP SWITCH

M15 M15D M12 1968 USA (E03)

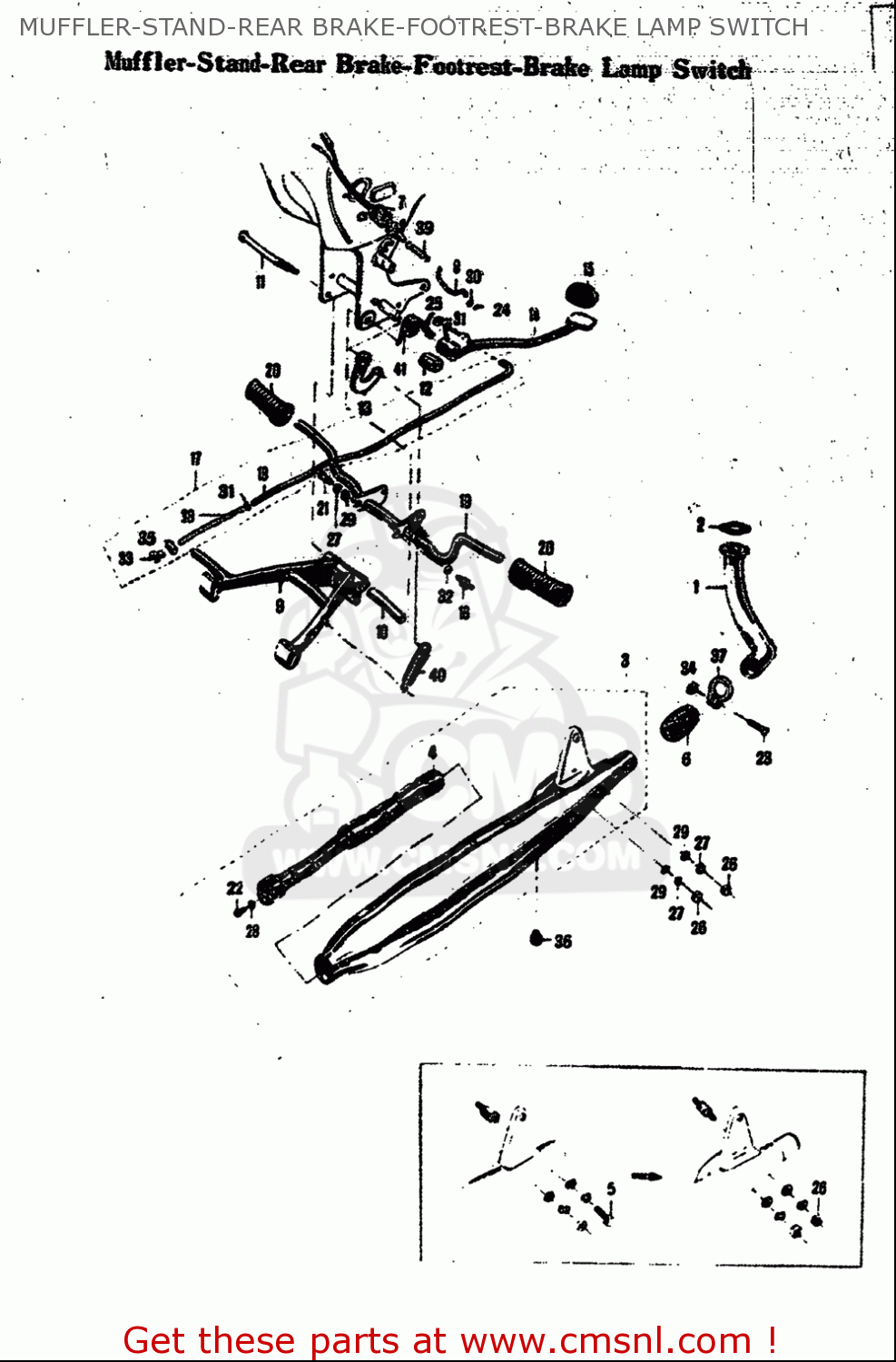

Muffler-stand-rear brake-footrest-brake lamp switch diagram M15 M15D M12 1968 USA (E03)

MUFFLER-STAND-REAR BRAKE-FOOTREST-BRAKE LAMP SWITCH M15 M15D M12 1968 USA (E03)

MUFFLER-STAND-REAR BRAKE-FOOTREST-BRAKE LAMP SWITCH M15 M15D M12 1968 USA (E03)

prices are in EUR

ref

part #

description

quantity

10

4221103001
ref: 10

SPACER

€ 4.50

16

4322103001
ref: 16

STOPPER,BRAKE PEDAL

€ 6.00

20

4355103001
ref: 20

RUBBER,FR FOOTREST

€ 5.00

21

0150008163
ref: 21

BOLT

€ 2.00

22

0912505122
ref: 22

SCREW(5X6)

€ 4.00

24

0411120108
ref: 24

PIN 20X10

€ 1.50

26

0831000087
ref: 26

NUT

€ 2.00

27

0832101087
ref: 27

WASHER,LOCK

€ 2.00

28

0832201057
ref: 28

WASHER

€ 2.50

29

0832201087
ref: 29

WASHER

€ 2.00

30

0832201047
ref: 30

WASHER

€ 2.00

31

0832201057
ref: 31

WASHER

€ 2.50

32

0832201087
ref: 32

WASHER

€ 2.00

33

09150C05101J000
ref: 33

BRAKE ROD ADJ N

09150C05101J000

€ 20.00

33-1

0915005001
ref: 33-1

NUT

€ 3.50

35

09209C10001J000
ref: 35

BRAKE ROD LEVER

09209C10001J000

€ 4.50

36

0932110001
ref: 36

CUSHION

€ 2.50

38

0944009004
ref: 38

SPRING

€ 2.00

39

0944307010
ref: 39

SPRING

€ 0.00

40

0944316007
ref: 40

SPRING

€ 12.00
