FLYWHEEL MAGNETO-IGNITION COIL
M15 M15D M12 1968 USA (E03)

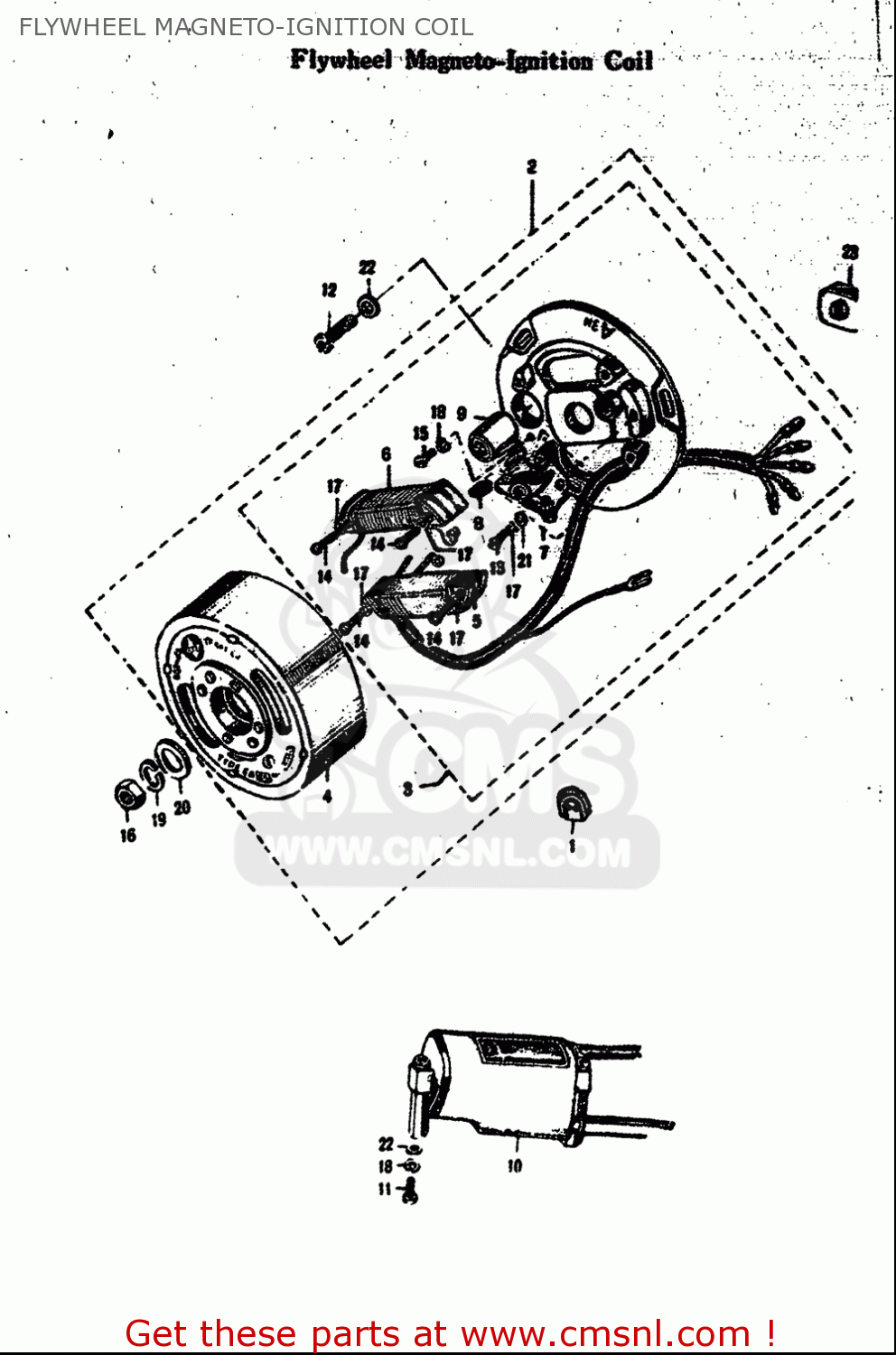

Flywheel magneto-ignition coil diagram M15 M15D M12 1968 USA (E03)
FLYWHEEL MAGNETO-IGNITION COIL M15 M15D M12 1968 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
7
3224003120
ref: 7
POINT ASSY,CONTACT
€ 40.00
9
3234103020
ref: 9
CONDENSER
€ 9.50
11
0211205167
ref: 11
SCREW
€ 2.50
12
0211205167
ref: 12
SCREW
€ 2.50
13
0231104128
ref: 13
SCREW
€ 2.00
15
0231105108
ref: 15
.SCREW
€ 0.00
16
0831000107
ref: 16
NUT
€ 2.50
17
0832101043
ref: 17
WASHER,LOCK
€ 2.00
18
0832101057
ref: 18
WASHER,LOCK
€ 2.00
19
0832101107
ref: 19
WASHER,LOCK
€ 2.00
20
0832201107
ref: 20
WASHER
€ 2.50
21
0832201047
ref: 21
WASHER
€ 2.00
22
0832201057
ref: 22
WASHER
€ 2.50
