THROTTLE GRIP-BRAKE LEVER-CLUTCH LEVER-RIGHT SWITCH-LEFT SWITCH

M15 M15D M12 1968 USA (E03)

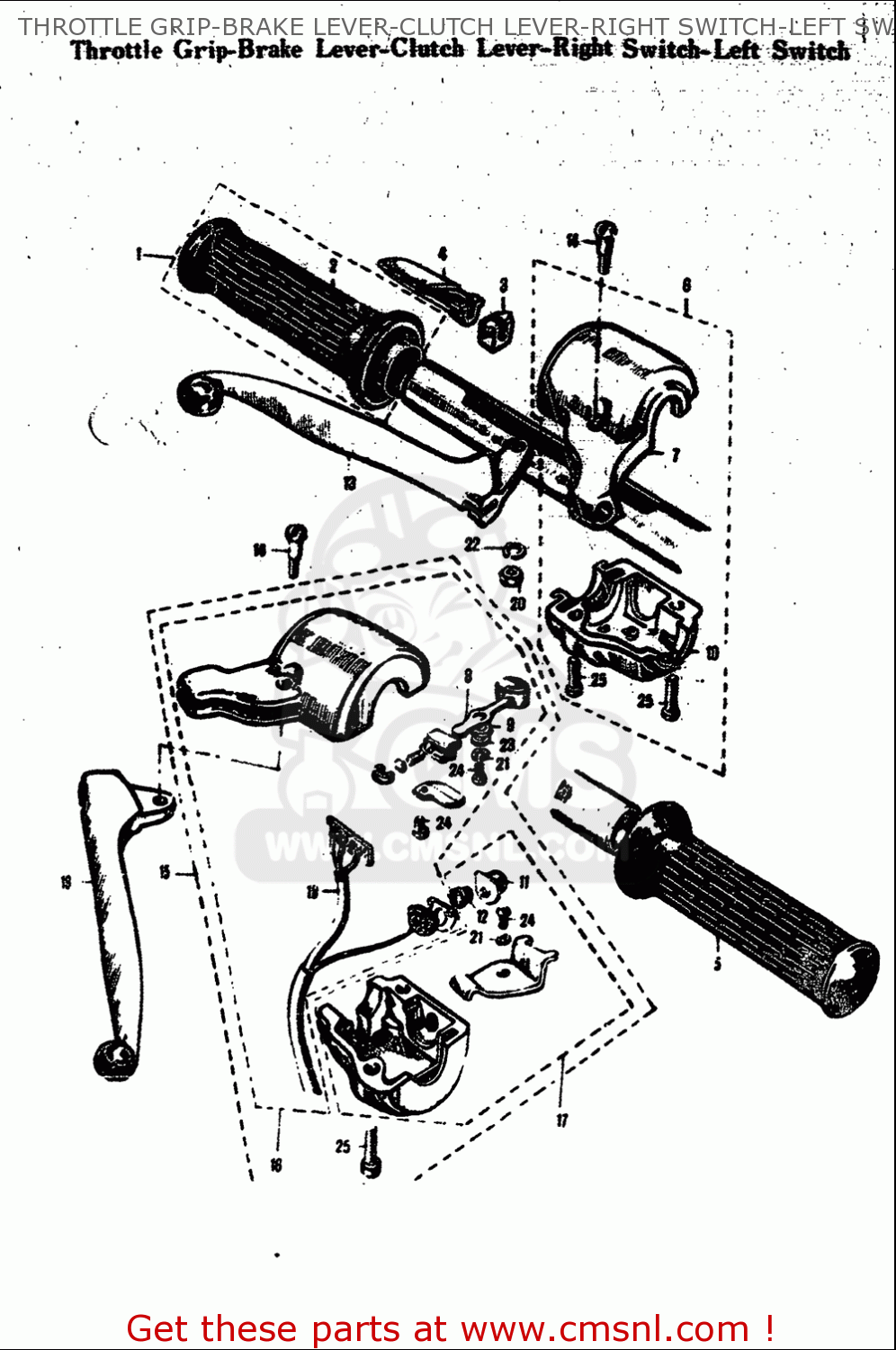

Throttle grip-brake lever-clutch lever-right switch-left switch diagram M15 M15D M12 1968 USA (E03)

THROTTLE GRIP-BRAKE LEVER-CLUTCH LEVER-RIGHT SWITCH-LEFT SWITCH M15 M15D M12 1968 USA (E03)
THROTTLE GRIP-BRAKE LEVER-CLUTCH LEVER-RIGHT SWITCH-LEFT SWITCH M15 M15D M12 1968 USA (E03)
THROTTLE GRIP-BRAKE LEVER-CLUTCH LEVER-RIGHT SWITCH-LEFT SWITCH M15 M15D M12 1968 USA (E03)
prices are in EUR
ref
part #
description
quantity
11
5737001311
ref: 11
BUTTON
5737001311
€ 4.00
12
5738201311
ref: 12
SPRING
5738201311
€ 3.00
20
0831000057
ref: 20
NUT
0831000057
€ 2.50
21
0916203001
ref: 21
WASHER,LOCK
0916203001
€ 1.50
22
0832101057
ref: 22
WASHER,LOCK
0832101057
€ 2.00
23
0832201037
ref: 23
WASHER
0832201037
€ 2.00
25*
0912505105
ref: 25*
SCREW
0912505105
€ 4.50
