CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER

M15 M15D M12 1968 USA (E03)

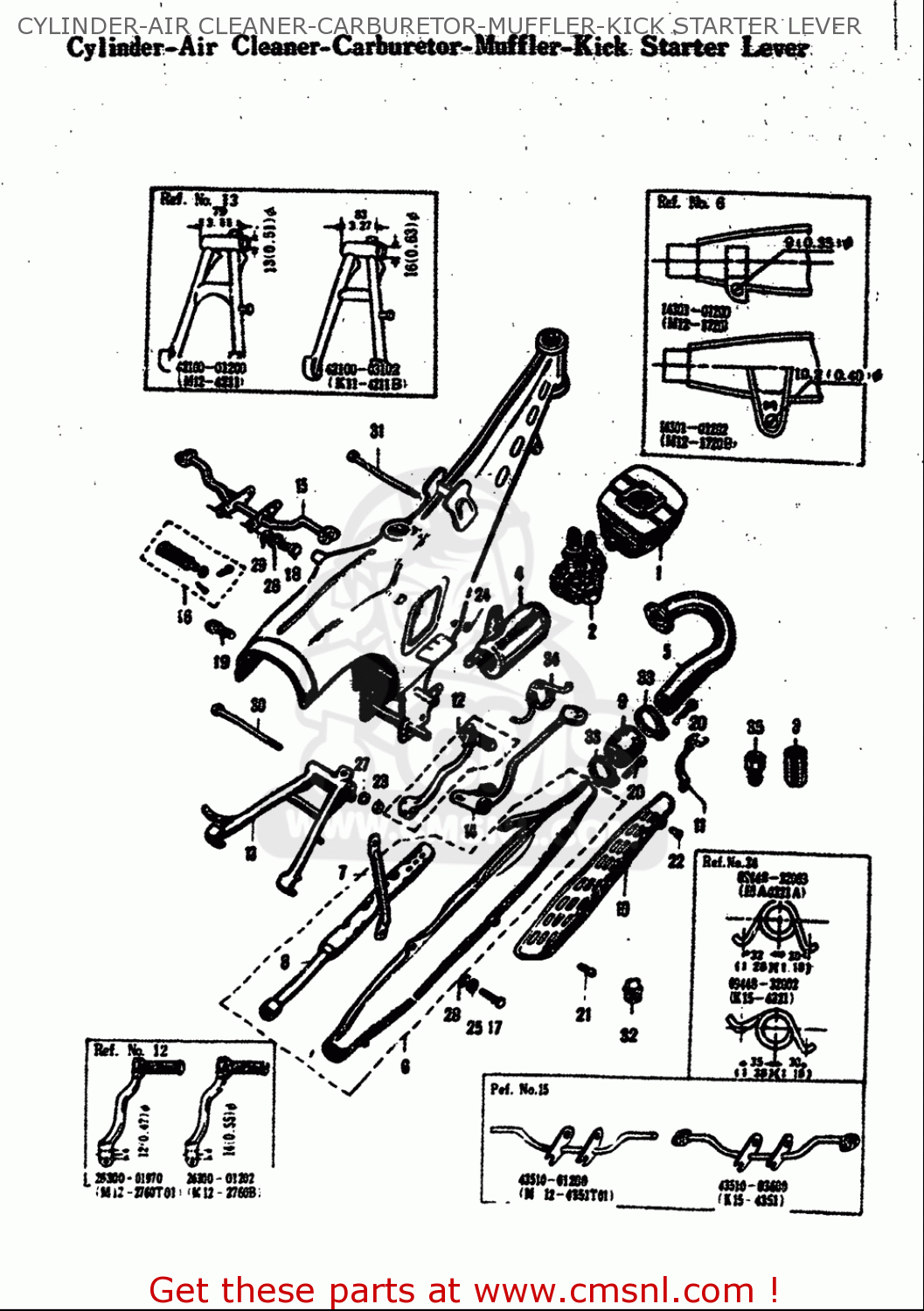

Cylinder-air cleaner-carburetor-muffler-kick starter lever diagram M15 M15D M12 1968 USA (E03)

CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER M15 M15D M12 1968 USA (E03)
CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER M15 M15D M12 1968 USA (E03)
CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER M15 M15D M12 1968 USA (E03)
prices are in EUR
ref
part #
description
quantity
18
0150008163
ref: 18
BOLT
0150008163
€ 2.00
19
0120408207
ref: 19
BOLT
0120408207
€ 3.00
23
0831000107
ref: 23
NUT
0831000107
€ 2.50
24
0831000087
ref: 24
NUT
0831000087
€ 2.00
25
0832101067
ref: 25
WASHER,LOCK
0832101067
€ 2.50
26
0832101087
ref: 26
WASHER,LOCK
0832101087
€ 2.00
27
0832101107
ref: 27
WASHER,LOCK
0832101107
€ 2.00
28
0832201067
ref: 28
WASHER
0832201067
€ 2.00
29
0832201087
ref: 29
WASHER
0832201087
€ 2.00
30
0910010018
ref: 30
BOLT
€ 4.50
32
0920020810
ref: 32
PLUG SET
0920020810
€ 8.00
