CLUTCH

M15 M15D M12 1968 USA (E03)

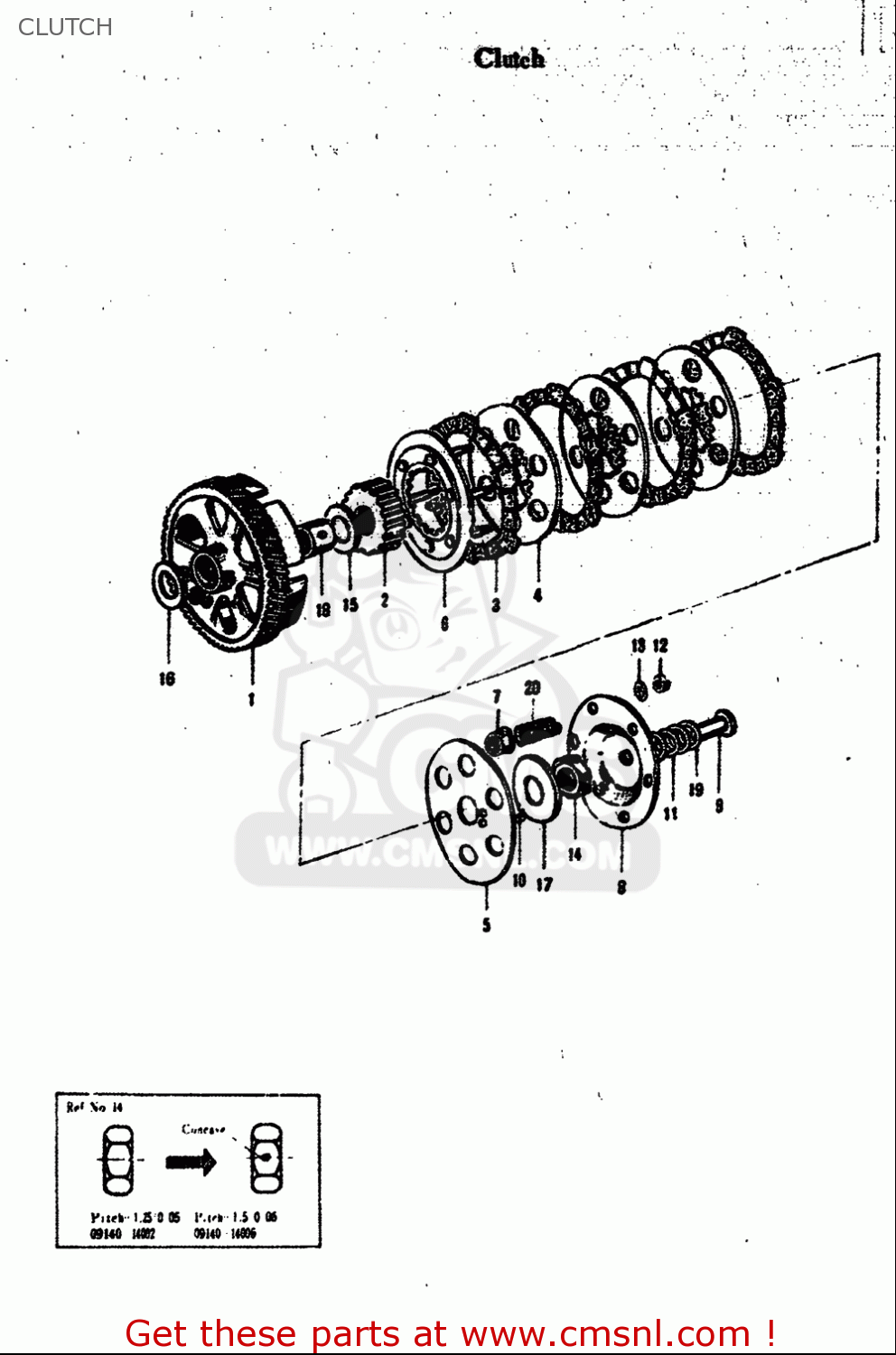

Clutch diagram M15 M15D M12 1968 USA (E03)

CLUTCH M15 M15D M12 1968 USA (E03)

CLUTCH M15 M15D M12 1968 USA (E03)

prices are in EUR

ref

part #

description

quantity

10

0422104109
ref: 10

PIN

€ 1.50

11

0821208151
ref: 11

WASHER

€ 0.00

12

0831000057
ref: 12

NUT

€ 2.50

14-1

0914014002
ref: 14-1

NUT

€ 4.00

15

0918117223
ref: 15

SHIM(17X30X1)

€ 3.00

16

0821117282
ref: 16

WASHER

€ 3.00

20

0944010004
ref: 20

CLUTCH SPRING

€ 0.00
