CARBURETOR
M15 M15D M12 1968 USA (E03)

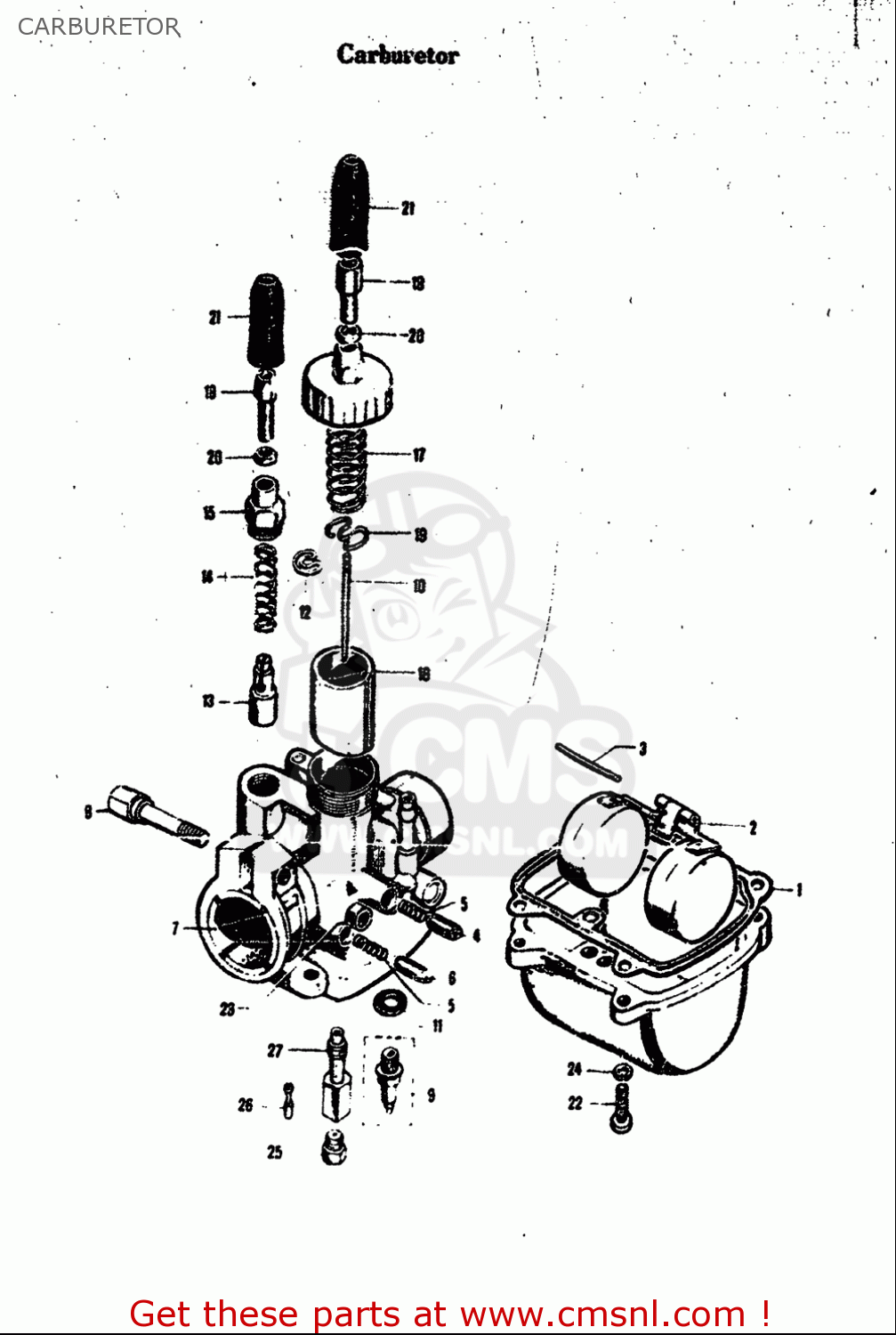

Carburetor diagram M15 M15D M12 1968 USA (E03)
CARBURETOR M15 M15D M12 1968 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1325101011
ref: 1
GASKET,FLOAT CHAMBER (NAS)
€ 5.50
3
1325401010
ref: 3
PIN,FLOAT
€ 3.00
4
1326701010
ref: 4
SCREW,THROTTLE STOP
€ 6.00
5
1326801010
ref: 5
SPRING
€ 3.50
6
1326901010
ref: 6
SCREW,PILOT AIR
€ 14.50
9
1337003310
ref: 9
VALVE ASSY,NEEDLE
€ 52.50
10
1338304110
ref: 10
NEEDLE,JET
€ 22.50
11
1339201010
ref: 11
GASKET,NEEDLE VALVE (NAS)
€ 2.50
12
1339410010
ref: 12
CLIP
€ 4.50
13
1341101010
ref: 13
PLUNGER,STARTER
€ 14.00
14
1341701010
ref: 14
SPRING
€ 3.50
17
1357301010
ref: 17
SPRING,THROTTLE VALVE
€ 5.50
18
1357748110
ref: 18
ADJUSTER,CABLE
€ 8.00
19
1358107910
ref: 19
PLATE
€ 6.50
20
1366103010
ref: 20
NUT
€ 3.50
24
0832101043
ref: 24
WASHER,LOCK
€ 2.00
25
0949175001
ref: 25
JET,MAIN
€ 6.50
25-2
0949170001
ref: 25-2
JET,MAIN
€ 6.00
25-3
0949180001
ref: 25-3
JET,MAIN (80)
€ 12.00
