FRONT FENDER-MAIN WIRING HARNESS-REAR FENDER

M15 M15D M12 1968 USA (E03)

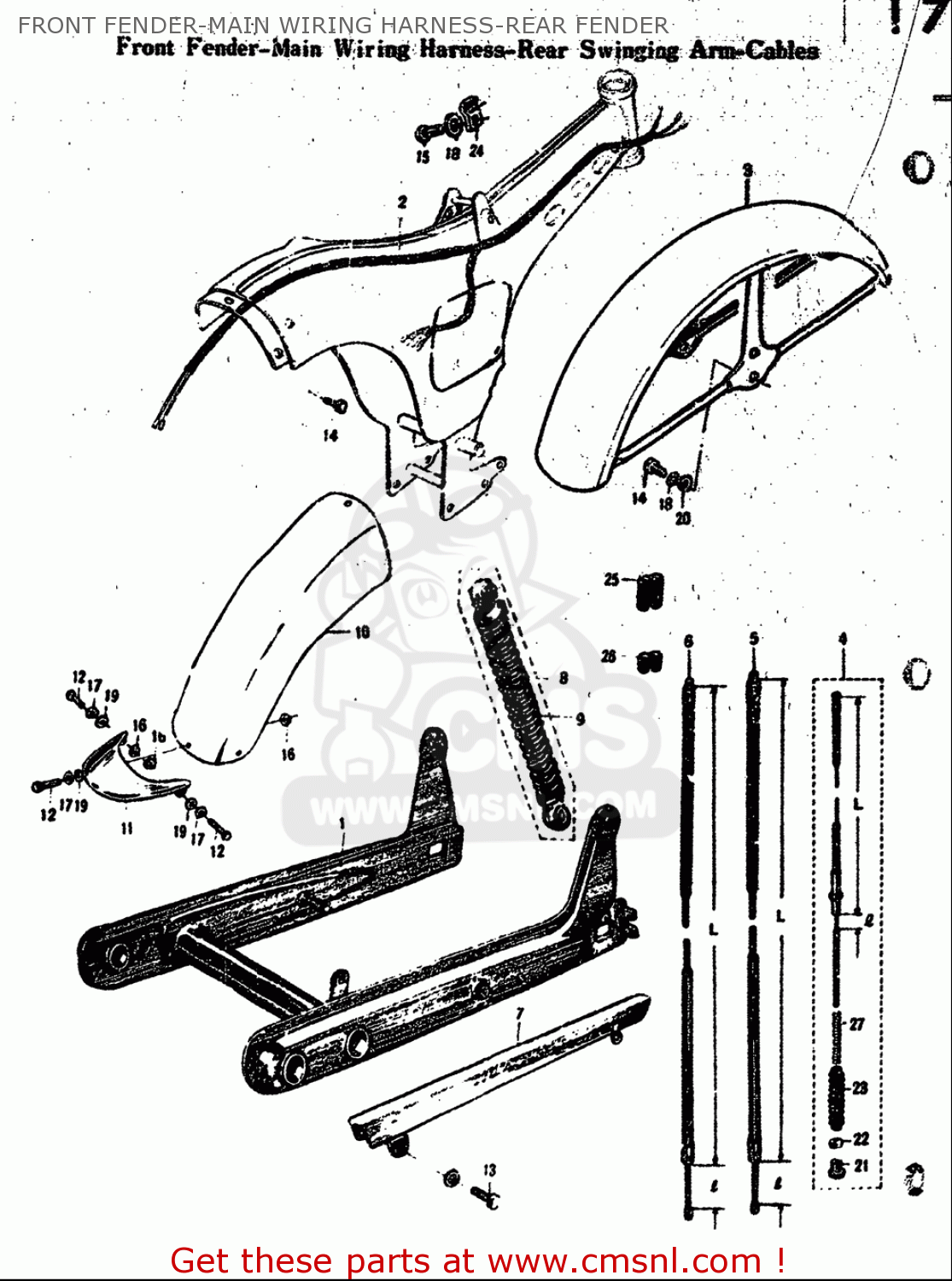

Front fender-main wiring harness-rear fender diagram M15 M15D M12 1968 USA (E03)

FRONT FENDER-MAIN WIRING HARNESS-REAR FENDER M15 M15D M12 1968 USA (E03)
FRONT FENDER-MAIN WIRING HARNESS-REAR FENDER M15 M15D M12 1968 USA (E03)
FRONT FENDER-MAIN WIRING HARNESS-REAR FENDER M15 M15D M12 1968 USA (E03)
prices are in EUR
ref
part #
description
quantity
14
0120406127
ref: 14
BOLT
0120406127
€ 1.50
16
0831000057
ref: 16
NUT
0831000057
€ 2.50
17
0832101057
ref: 17
WASHER,LOCK
0832101057
€ 2.00
18
0832101067
ref: 18
WASHER,LOCK
0832101067
€ 2.50
19
0832201057
ref: 19
WASHER
0832201057
€ 2.50
20
0832201067
ref: 20
WASHER
0832201067
€ 2.00
21
09150C05101J000
ref: 21
BRAKE ROD ADJ N
09150C05101J000
€ 20.00
21-1
0915005001
ref: 21-1
NUT
0915005001
€ 3.50
22
09209C10001J000
ref: 22
BRAKE ROD LEVER
09209C10001J000
€ 4.50
23
0928707001
ref: 23
SEAL,DUST(7X16X75)
0928707001
€ 2.00
25
0940800001
ref: 25
CLIP
0940800001
€ 2.50
26
0940800002
ref: 26
CLIP
0940800002
€ 2.00
27
0944006003
ref: 27
SPRING
0944006003
€ 2.00
