PISTON-CRANKSHAFT
M15 M15D M12 1968 USA (E03)

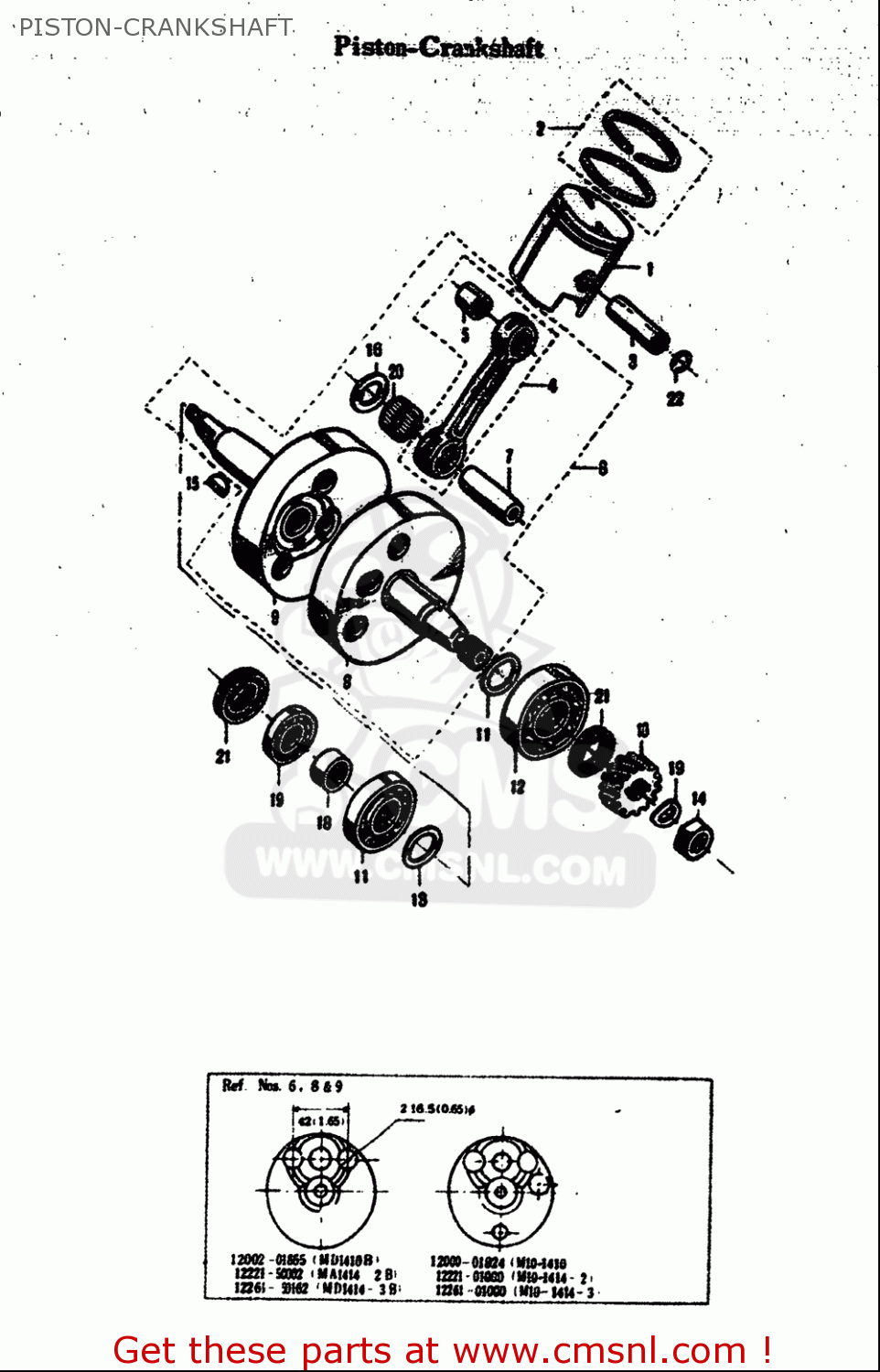

Piston-crankshaft diagram M15 M15D M12 1968 USA (E03)
PISTON-CRANKSHAFT M15 M15D M12 1968 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
1214005100
ref: 2
RING SET,PISTON
€ 40.00
2-4
1214001600100
ref: 2-4
PISTON RING OS1 (M12MARK2 OVER SIZE 1.0(-STONE TYPE)
€ 7.00
3
1215104700
ref: 3
PIN,PISTON
€ 9.00
11
0926217023
ref: 11
BEARING(17X40X12)
€ 14.00
12
0811363030
ref: 12
BEARING
€ 15.50
13
0918117130
ref: 13
SHIM(17X24X0.5)
€ 3.00
14
0831000107
ref: 14
NUT
€ 2.50
15
0834131039
ref: 15
KEY
€ 2.00
16
0916016011
ref: 16
WASHER(16X32X1)
€ 5.00
20
0926316034
ref: 20
BEARING(16X22X11.8)
€ 19.00
21
0928317001
ref: 21
SEAL,OIL(17X29X7)
€ 5.50
