KICK STARTER (14 TYPE)
M15 M15D M12 1968 USA (E03)

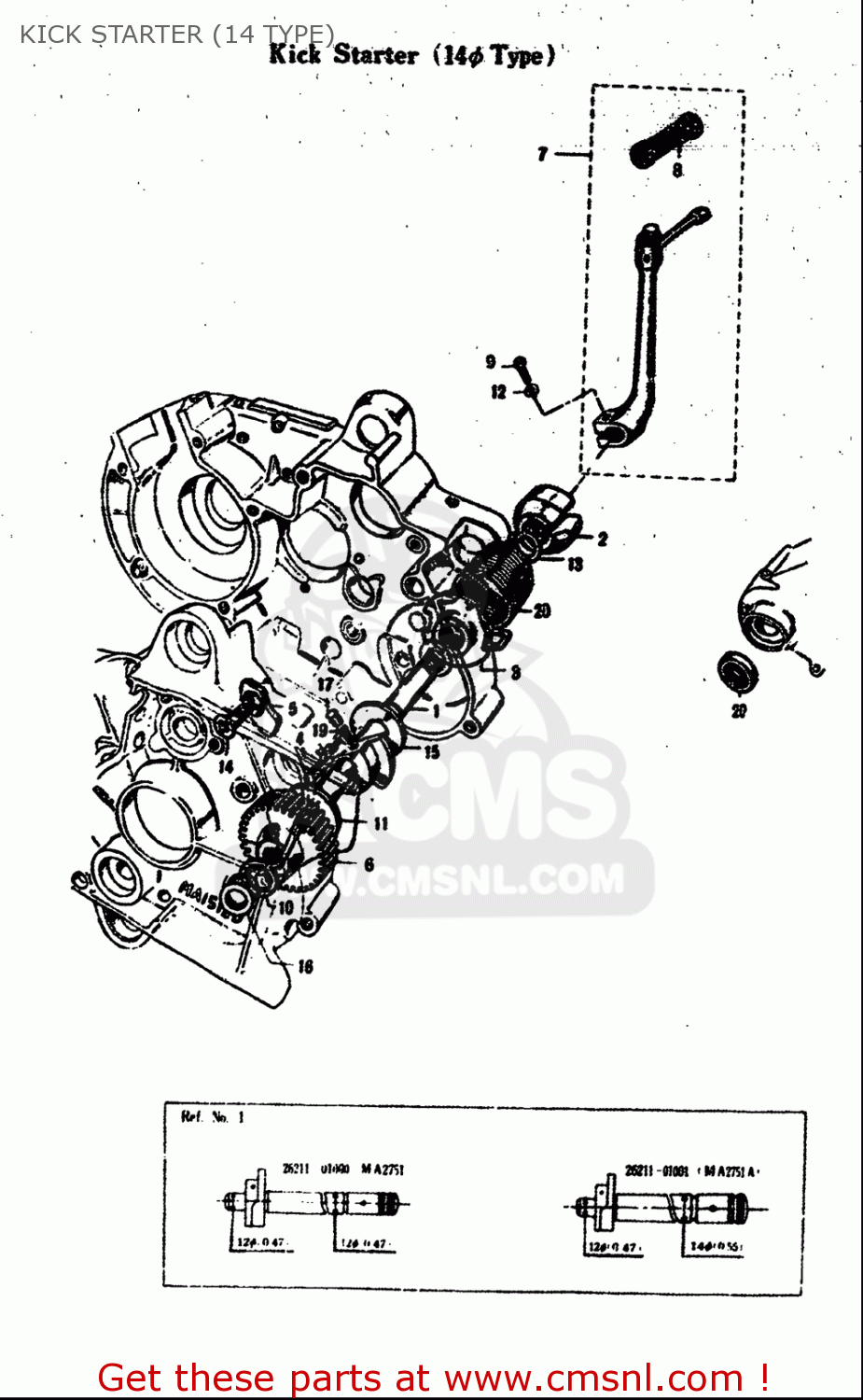

Kick starter (14 type) diagram M15 M15D M12 1968 USA (E03)
KICK STARTER (14 TYPE) M15 M15D M12 1968 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
2622101030
ref: 2
GUIDE,KICK SHAFT SPRING
€ 6.50
4
2623101000
ref: 4
PAWL,KICK STARTER
€ 11.50
5
2623201000
ref: 5
LIFTER,KICK STARTER PAWL
€ 8.00
7
2630035552
ref: 7
LEVER ASSY,KICK STARTER
€ 439.00
8
2635201000
ref: 8
RUBBER,KICK STARTER PEDAL
€ 3.50
9
0150006257
ref: 9
BOLT
€ 2.00
10
0821112201
ref: 10
WASHER,THRUST
€ 2.50
11
0821112302
ref: 11
WASHER
€ 2.50
12
0832101057
ref: 12
WASHER,LOCK
€ 2.00
13
0833131146
ref: 13
CIRCLIP
€ 2.00
14
0913906002
ref: 14
SCREW(6X19)
€ 2.50
15
0916014046
ref: 15
WASHER
€ 4.00
18
0928514001
ref: 18
SEAL,OIL(14X24X6)
€ 9.00
19
0944004003
ref: 19
SPRING
€ 1.50
