CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER

M15 M15D M12 1968 USA (E03)

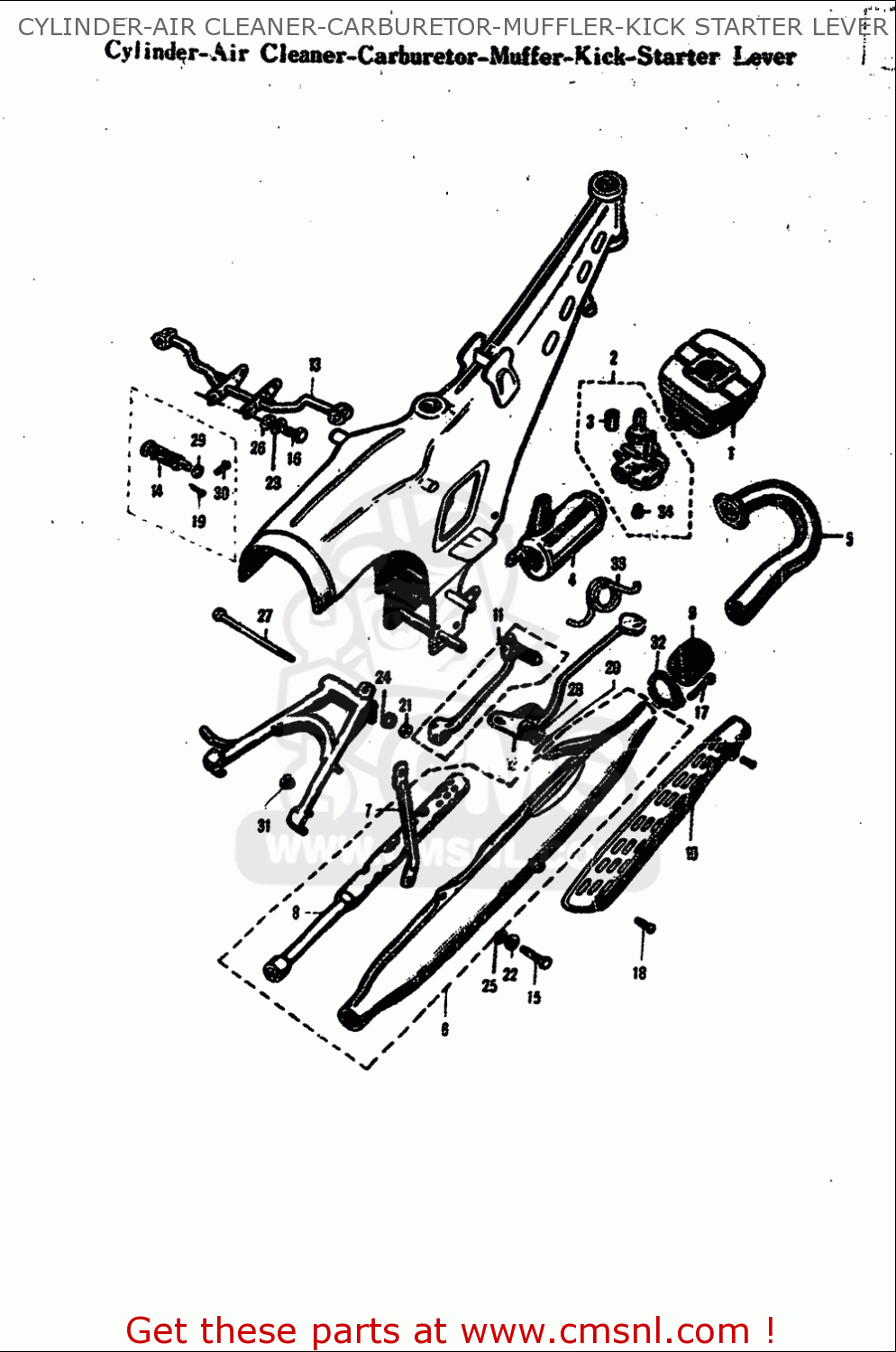

Cylinder-air cleaner-carburetor-muffler-kick starter lever diagram M15 M15D M12 1968 USA (E03)

CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER M15 M15D M12 1968 USA (E03)
CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER M15 M15D M12 1968 USA (E03)
CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER M15 M15D M12 1968 USA (E03)
prices are in EUR
ref
part #
description
quantity
16
0150008163
ref: 16
BOLT
0150008163
€ 2.00
21
0831000107
ref: 21
NUT
0831000107
€ 2.50
22
0832101067
ref: 22
WASHER,LOCK
0832101067
€ 2.50
23
0832101087
ref: 23
WASHER,LOCK
0832101087
€ 2.00
24
0832101107
ref: 24
WASHER,LOCK
0832101107
€ 2.00
25
083220106A
ref: 25
WASHER
083220106A
€ 2.00
26
0832201087
ref: 26
WASHER
0832201087
€ 2.00
27
0910010018
ref: 27
BOLT
€ 4.50
28
0916015002
ref: 28
WASHER(15.5X26X2.3)
0916015002
€ 2.00
29
0916022033
ref: 29
WASHER(22.5X38X1)
0916022033
€ 3.50
30
0920008002
ref: 30
PIN
0920008002
€ 2.00
31
0932110002
ref: 31
CUSHION(11.5X22X20)
0932110002
€ 2.00
