REAR SWINGING ARM-REAR SHOCK ABSORBER

M15 M15D M12 1968 USA (E03)

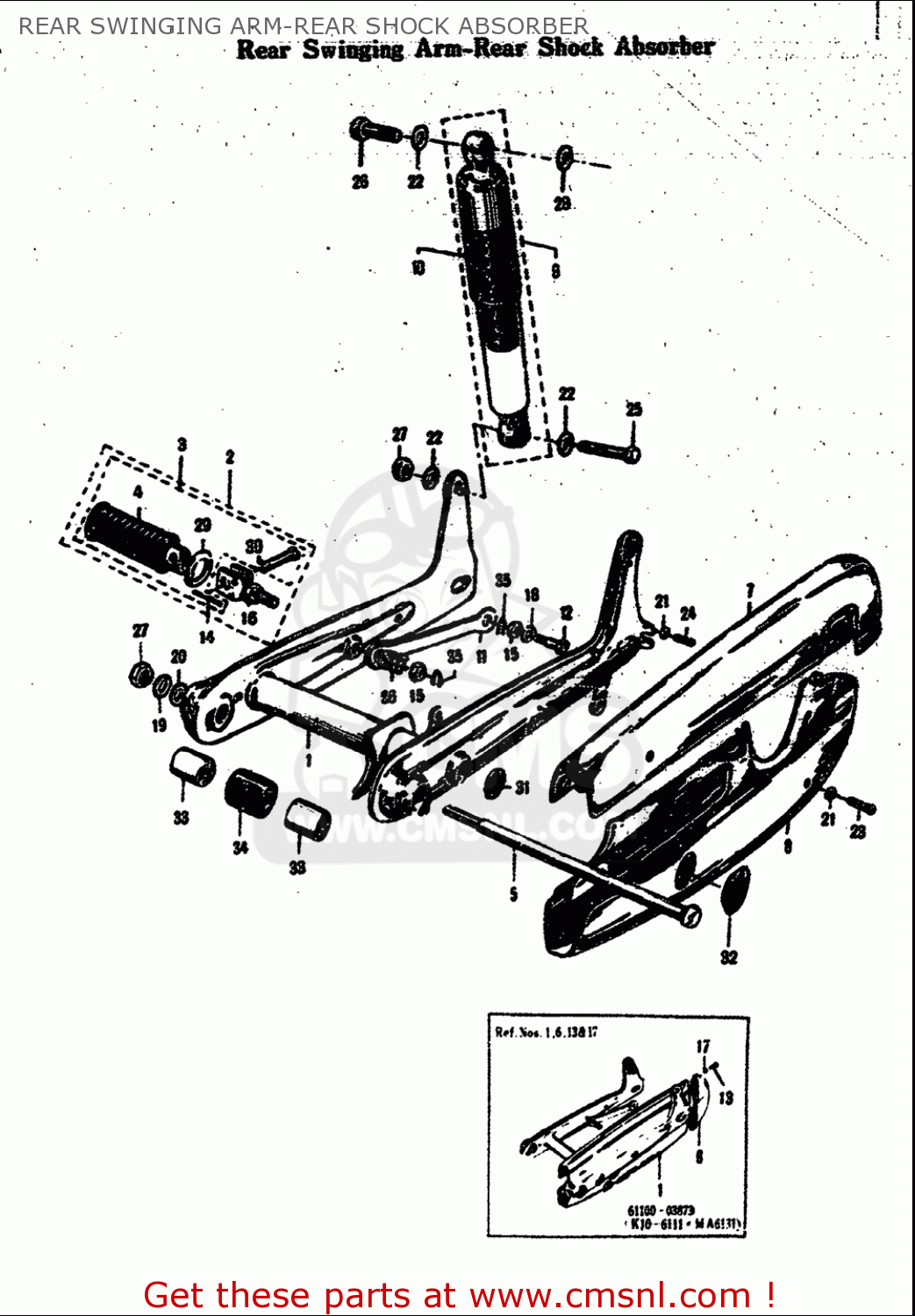

Rear swinging arm-rear shock absorber diagram M15 M15D M12 1968 USA (E03)

REAR SWINGING ARM-REAR SHOCK ABSORBER M15 M15D M12 1968 USA (E03)
REAR SWINGING ARM-REAR SHOCK ABSORBER M15 M15D M12 1968 USA (E03)
REAR SWINGING ARM-REAR SHOCK ABSORBER M15 M15D M12 1968 USA (E03)
prices are in EUR
ref
part #
description
quantity
15
0831000087
ref: 15
NUT
0831000087
€ 2.00
16
0831000107
ref: 16
NUT
0831000107
€ 2.50
17
0832101067
ref: 17
WASHER,LOCK
0832101067
€ 2.50
18
0832101087
ref: 18
WASHER,LOCK
0832101087
€ 2.00
19
0832101107
ref: 19
WASHER,LOCK
0832101107
€ 2.00
20
0832201107
ref: 20
WASHER
0832201107
€ 2.50
21
0832201067
ref: 21
WASHER
0832201067
€ 2.00
22
0832201107
ref: 22
WASHER
0832201107
€ 2.50
24
0910006067
ref: 24
BOLT(6X14)
0910006067
€ 2.50
28
0916010005
ref: 28
WASHER(10.5X20X3.2)
0916010005
€ 2.00
29
0916019024
ref: 29
WASHER(19.5X32X2)
0916019024
€ 2.00
30
0920006010
ref: 30
PIN
0920006010
€ 2.50
31
0925022002
ref: 31
CAP(OD:26)
0925022002
€ 2.00
32
0925030001
ref: 32
CAP(OD:40)
0925030001
€ 2.50
34
0932022001
ref: 34
CUSHION
0932022001
€ 2.00
35
0938408001
ref: 35
SPRING,RETAINER
0938408001
€ 3.00
