CRANKCASE-TRANSMISSION-DRIVE CHAIN
M15 M15D M12 1968 USA (E03)

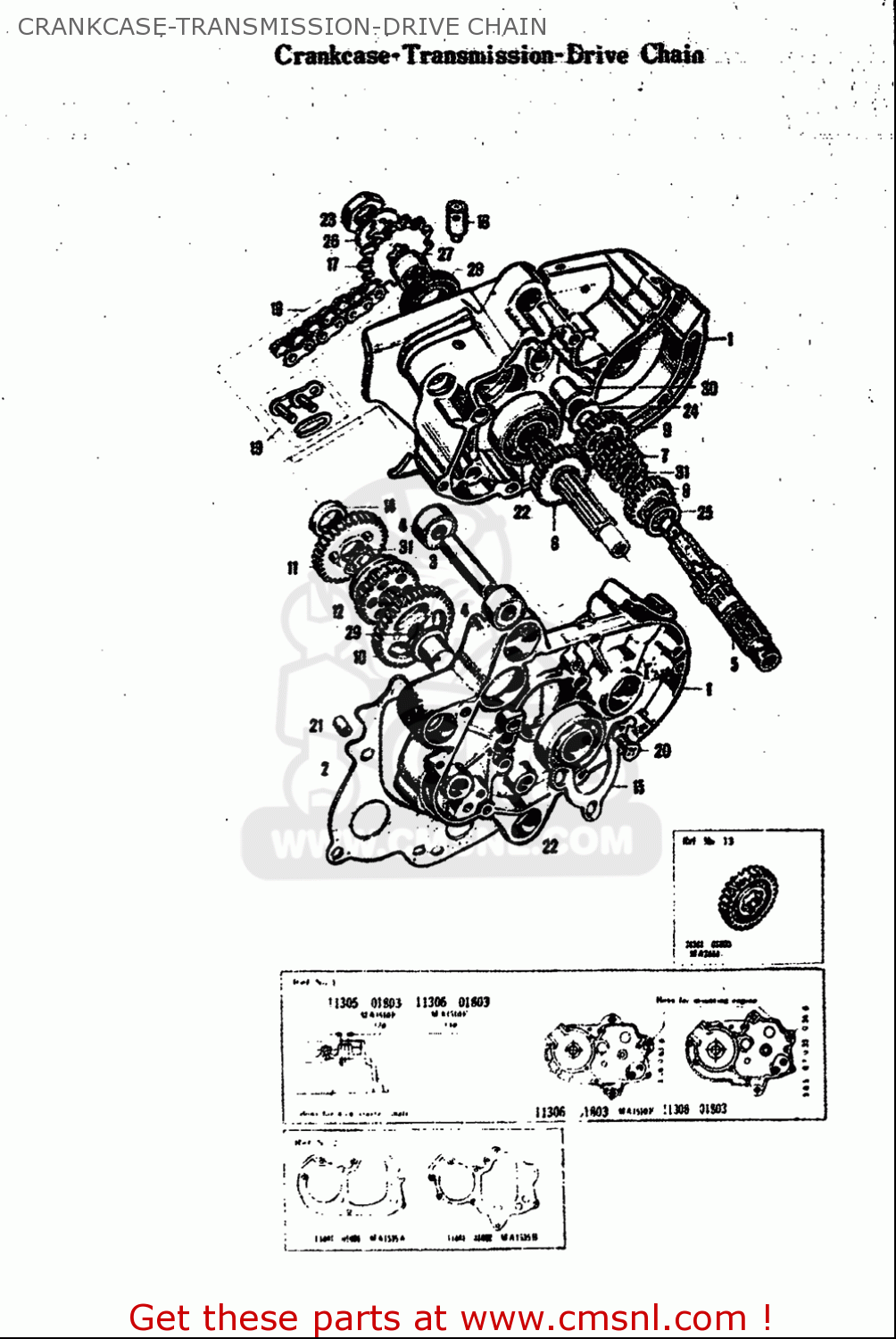

Crankcase-transmission-drive chain diagram M15 M15D M12 1968 USA (E03)
CRANKCASE-TRANSMISSION-DRIVE CHAIN M15 M15D M12 1968 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
16
2482109001
ref: 16
PLUG,T/M BREATHER
€ 5.50
17-1
2751101701
ref: 17-1
SPROCKET,ENGINE
€ 15.50
17-2
2751104000
ref: 17-2
SPROCKET,ENGINE(NT:12)
€ 20.50
19
2762001012
ref: 19
JOINT
€ 5.00
21
0421109129
ref: 21
PIN
€ 2.00
22
0811363030
ref: 22
BEARING
€ 15.50
23
0914016002
ref: 23
NUT
€ 4.00
23-1
0914016001
ref: 23-1
NUT
€ 4.50
24
0916011002
ref: 24
TOP PINION THRUST WASHER (M12MARK2,M15D,M12 OD=22(0.(0.43) T=1.2
€ 1.00
26
0916716001
ref: 26
WASHER,LOCK
€ 1.50
26-1
0916716001
ref: 26-1
WASHER,LOCK
€ 1.50
27
0918017008
ref: 27
SPACER(17X21X13)
€ 7.00
28
0928321001
ref: 28
SEAL,OIL(21X40X7)
€ 14.50
