COWLING (RG250CH/FCH)

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

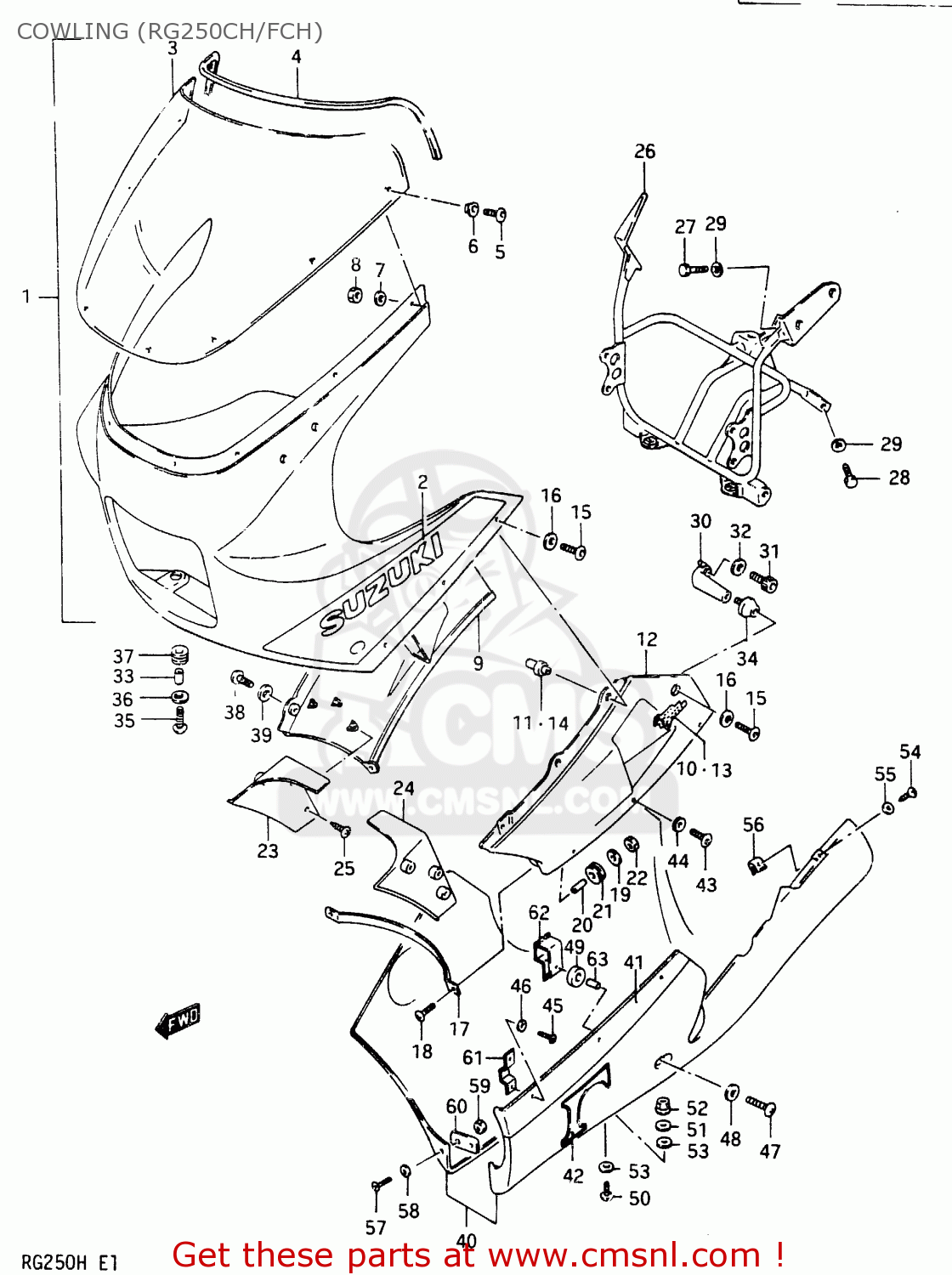

Cowling (rg250ch/fch) diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

COWLING (RG250CH/FCH) RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
COWLING (RG250CH/FCH) RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
COWLING (RG250CH/FCH) RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
prices are in EUR
ref
part #
description
quantity
1
9450040A1033N
ref: 1
FOR 8VZ
COWLING ASSY (BLUE)
€ 686.50
1
9450040A30019
ref: 1
FOR 8WL
COWLING ASSY (BLACK)
9450040A30019
€ 686.50
1
9450040A2033N
ref: 1
E22 FOR 8VZ
COWLING ASSY (BLUE)
€ 686.50
1
9450040A40019
ref: 1
E22 FOR 8WL
COWLING ASSY (BLACK)
€ 0.00
2
6818040A408WB
ref: 2
TAPE SET
€ 49.00
3
9461140A00
ref: 3
WINDOW
€ 332.00
3
9461140A10
ref: 3
E22
WINDOW
€ 0.00
4
9463140A00
ref: 4
MOLDING
9463140A00
€ 18.00
5
0913905024
ref: 5
SCREW(5X14)
0913905024
€ 2.50
6
0932005008
ref: 6
CUSHION
0932005008
€ 5.00
7
0832221055
ref: 7
WASHER,5MM
0832221055
€ 2.50
8
0831921055
ref: 8
NUT 8MM
0831921055
€ 1.50
9
9445040A408VZ
ref: 9
RG250CH
COVER, RH (WHITE/BLUE)
9445040A408VZ
€ 209.50
9
9445040A408WL
ref: 9
RG250CH
COVER, RH (WHITE/RED)
€ 223.50
9
9445040A308VZ
ref: 9
RG250FCH
COVER, RH (WHITE/BLUE)
€ 209.50
9
9445040A308WL
ref: 9
RG250FCH
COVER, RH (WHITE/RED)
€ 209.50
10
6868120A109EL
ref: 10
FOR 8VZ
EMBLEM
6868120A109EL
€ 31.00
10
6868120A1094E
ref: 10
FOR 8WL
EMBLEM
€ 7.50
11
9443416710
ref: 11
NUT,COWLING COVER
9443416710
€ 4.50
12
9446040A408VZ
ref: 12
RG250CH
COVER, LH (WHITE/BLUE)
€ 178.00
12
9446040A408WL
ref: 12
RG250CH
COVER, LH (WHITE/RED)
€ 195.50
12
9446040A308VZ
ref: 12
RG250FCH
COVER, LH (WHITE/BLUE)
€ 178.00
12
9446040A308WL
ref: 12
RG250FCH
COVER, LH (WHITE/RED)
€ 178.00
13
6868120A109EL
ref: 13
FOR 8VZ
EMBLEM
6868120A109EL
€ 31.00
13
6868120A1094E
ref: 13
FOR 8WL
EMBLEM
€ 7.50
14
9443416710
ref: 14
NUT,COWLING COVER
9443416710
€ 4.50
15
0913906028
ref: 15
SCREW(6X20)
0913906028
€ 3.50
16
0916006019
ref: 16
WASHER(6.5X16X1.2)
0916006019
€ 1.50
17
9442140A0030H
ref: 17
PANEL, COWLING LOWER (WHITE)
€ 13.00
18
0214206257
ref: 18
SCREW
€ 3.00
19
0916006027
ref: 19
WASHER (6.5X20X1.2)
0916006027
€ 2.00
20
0918006030
ref: 20
SPACER (6.8X10X10)
0918006030
€ 2.00
21
0932010015
ref: 21
CUSHION
0932010015
€ 2.50
22
0831921068
ref: 22
NUT 6MM
0831921068
€ 2.00
23
9445140A00
ref: 23
GUIDE PLATE, RH
€ 12.00
24
9446140A00
ref: 24
GUIDE PLATE, LH
€ 11.50
25
0321205105
ref: 25
SCREW
0321205105
€ 1.00
26
9451040A02
ref: 26
BRACE, COWLING
9451040A02
€ 96.50
27
0711008205
ref: 27
BOLT
€ 3.00
28
0110708205
ref: 28
BOLT
€ 2.00
29
0832121084
ref: 29
WASHER,LOCK,8.
0832121084
€ 2.50
30
9453140A00
ref: 30
SPACER, COWLING LOWER
€ 15.50
31
0711008168
ref: 31
BOLT
€ 3.00
32
0832211084
ref: 32
WASHER
0832211084
€ 1.50
33
0918006120
ref: 33
SPACER(6.5X11.5X12)
0918006120
€ 2.50
34
9457016701
ref: 34
CUSHION,COWLING
9457016701
€ 16.50
35
0913906028
ref: 35
SCREW(6X20)
0913906028
€ 3.50
36
0916006076
ref: 36
WASHER
€ 2.00
37
0932011008
ref: 37
CUSHION
0932011008
€ 3.00
38
0913906042
ref: 38
SCREW(6X30)
0913906042
€ 7.50
39
0916006019
ref: 39
WASHER(6.5X16X1.2)
0916006019
€ 1.50
40
9447040A509EK
ref: 40
RG250FCH,FOR 33N
COWLING ASSY, UNDER (WHITE/BLUE)
€ 751.00
40
9447040A508YM
ref: 40
RG250FCH,FOR 019
COWLING ASSY, UNDER (WHITE/BLACK)
€ 751.00
41
6819040A2030H
ref: 41
RG250FCH
TAPE SET
€ 0.00
42
6819140A4073H
ref: 42
RG250FCH
EMBLEM
€ 0.00
43
0913906027
ref: 43
RG250FCH
SCREW(6X12)
0913906027
€ 3.00
44
0916006019
ref: 44
RG250FCH
WASHER(6.5X16X1.2)
0916006019
€ 1.50
45
9449920A00
ref: 45
RG250FCH
SCREW
9449920A00
€ 2.00
46
9448920A00
ref: 46
RG250FCH
WASHER
9448920A00
€ 7.50
47
0214206257
ref: 47
RG250FCH
SCREW
€ 3.00
48
0916006019
ref: 48
RG250FCH
WASHER(6.5X16X1.2)
0916006019
€ 1.50
49
9447720A00
ref: 49
RG250FCH
CUSHION
9447720A00
€ 8.50
50
0214205167
ref: 50
RG250FCH
SCREW
0214205167
€ 1.50
51
9446920A00
ref: 51
RG250FCH
WASHER
9446920A00
€ 2.00
52
0831921058
ref: 52
RG250FCH
NUT
€ 1.50
53
9447840A00
ref: 53
RG250FCH
WASHER
9447840A00
€ 5.00
54
0324205169
ref: 54
RG250FCH
SCREW
€ 1.50
55
9447840A00
ref: 55
RG250FCH
WASHER
9447840A00
€ 5.00
56
9447940A00
ref: 56
RG250FCH
NUT
9447940A00
€ 4.00
57
9449920A00
ref: 57
RG250FCH
SCREW
9449920A00
€ 2.00
58
9448920A00
ref: 58
RG250FCH
WASHER
9448920A00
€ 7.50
59
0831022048
ref: 59
RG250FCH
NUT 4MM
€ 2.00
60
9448440A00
ref: 60
RG250FCH
BRACKET
€ 6.50
61
9448540A00
ref: 61
RG250FCH
BRACKET
€ 13.00
62
9448640A00
ref: 62
RG250FCH
BRACKET
€ 20.00
