HEADLAMP

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

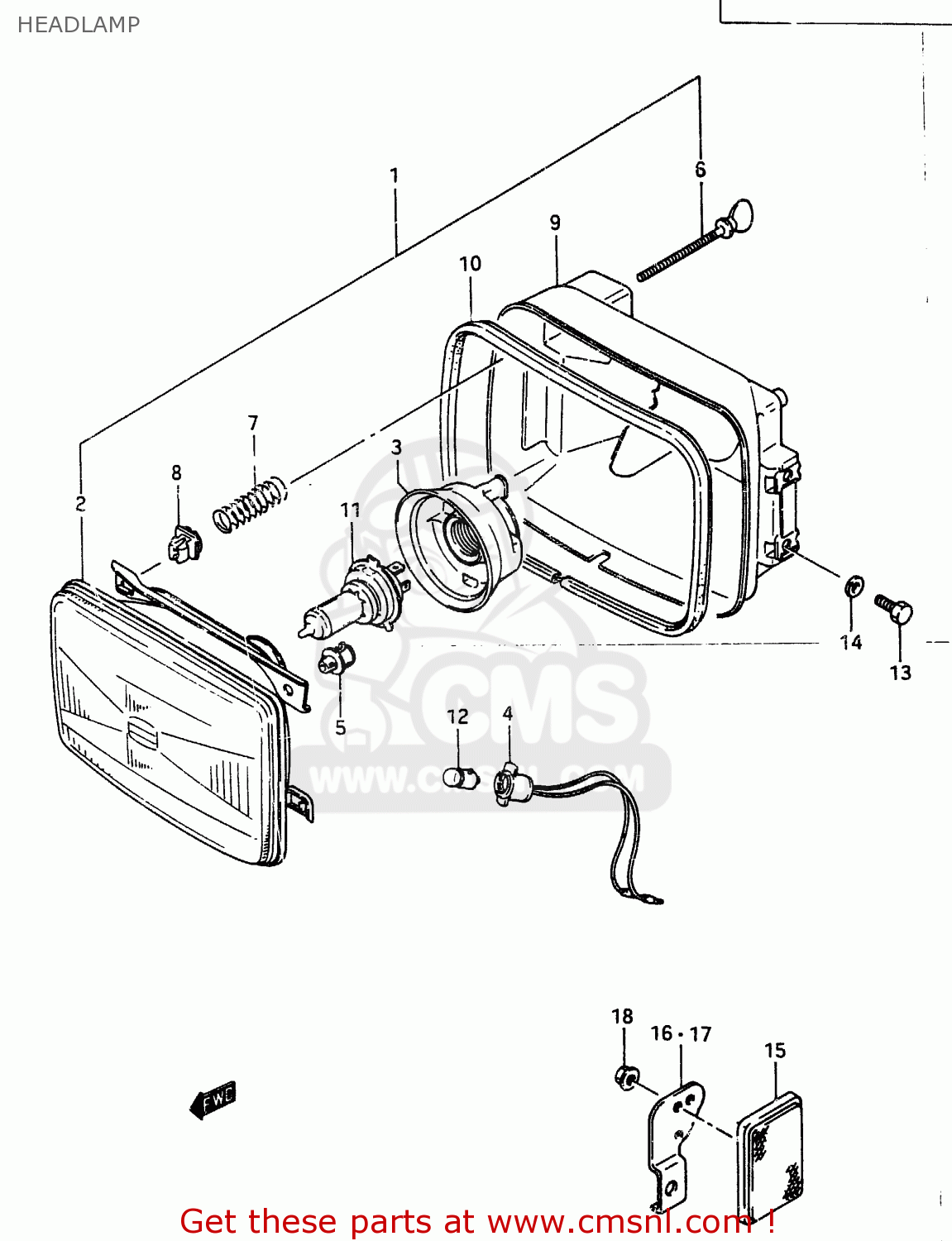

Headlamp diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

HEADLAMP RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
HEADLAMP RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
HEADLAMP RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
prices are in EUR
ref
part #
description
quantity
1
3510020A11999
ref: 1
E1,E6,E24,E30
HEADLAMP ASSY
€ 253.50
1
3510020A01999
ref: 1
E2
HEADLAMP ASSY
€ 97.00
1
3510020A41999
ref: 1
E4
HEADLAMP ASSY
€ 97.00
1
3510020A51999
ref: 1
E15,E16,E21,E22,E25,
HEADLAMP ASSY
€ 97.00
2
3512120A10
ref: 2
E1,E6,E24,E30
UNIT
3512120A10
€ 109.00
2
3512120A00
ref: 2
E2
UNIT
€ 88.50
2
3512120A50
ref: 2
E4,E15,E16,E21,E22,E
UNIT
3512120A50
€ 88.50
3
3517320A01
ref: 3
COVER,SOCKET
3517320A01
€ 14.50
4
3611828660
ref: 4
E2
SOCKET
3611828660
€ 11.50
4
3611827A00
ref: 4
E4,E15,E16,E21,E22,E
SOCKET
3611827A00
€ 11.50
5
3516204A00
ref: 5
SCREW,SPHERICAL
3516204A00
€ 2.00
6
3515304A00
ref: 6
SCREW,ADJUSTER
3515304A00
€ 3.50
7
3515404A00
ref: 7
SPRING
3515404A00
€ 4.00
8
3515227A00
ref: 8
NUT
3515227A00
€ 3.00
9
3524020A00
ref: 9
HOUSING
3524020A00
€ 32.50
10
3524220A00
ref: 10
GASKET (NAS)
3524220A00
€ 15.00
11
0947112060
ref: 11
BULB(12V60/55W,H4)
0947112060
€ 8.00
11
0947112061
ref: 11
E4 EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
12
0947112001
ref: 12
E2
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
12
0947112063
ref: 12
E15,E16,E21,E22,E25,
BULB(12V4W)
0947112063
€ 6.00
13
0110706125
ref: 13
BOLT
€ 2.00
14
0832121064
ref: 14
WASHER,LOCK
0832121064
€ 2.00
15
3595014A50
ref: 15
E39
REFLEX REFLECTOR, REAR SIDE
€ 0.00
16
3595620A00
ref: 16
E39
BRACKET, RH
€ 0.00
17
3595720A00
ref: 17
E39
BRACKET, LH
3595720A00
€ 17.00
18
0831616056
ref: 18
E39
NUT
€ 2.50
