REAR CALIPERS

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

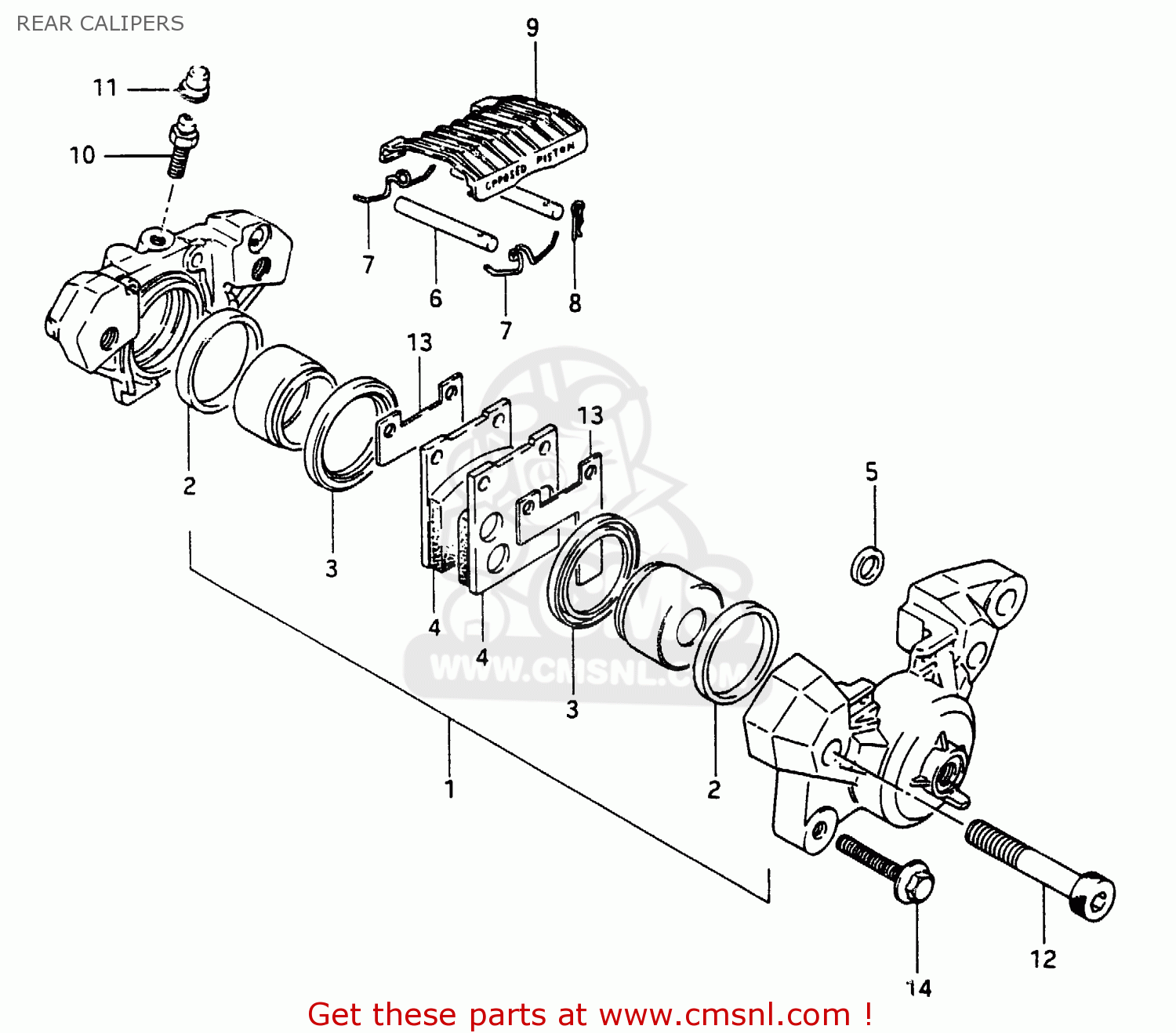

Rear calipers diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

REAR CALIPERS RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

REAR CALIPERS RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

prices are in EUR

ref

part #

description

quantity

0

6910040A00
ref: 0

CALIPERS ASSY, REAR

€ 376.00

1

6910016820
ref: 1

PISTON SET

€ 192.50

2

5910718410
ref: 2

SEAL,PISTON

€ 17.00

3

5910816700
ref: 3

BOOT

€ 16.50

4

5913016720
ref: 4

PAD

€ 23.25

5

6910734200
ref: 5

SEAL,JOINT

€ 12.00

6

6914145000
ref: 6

PIN,PAD

€ 6.50

7

5914316700
ref: 7

SPRING

€ 7.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9

5915116701
ref: 9

COVER

€ 13.50

10

5912118410
ref: 10

BLEEDER

€ 8.00

11

5912218410
ref: 11

CAP,BREATHER

€ 6.00

12

6914516700
ref: 12

BOLT

€ 9.50

13

5937133420
ref: 13

SHIM

€ 14.00

14

0712008305
ref: 14

BOLT

€ 3.50
