MAGNETO

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

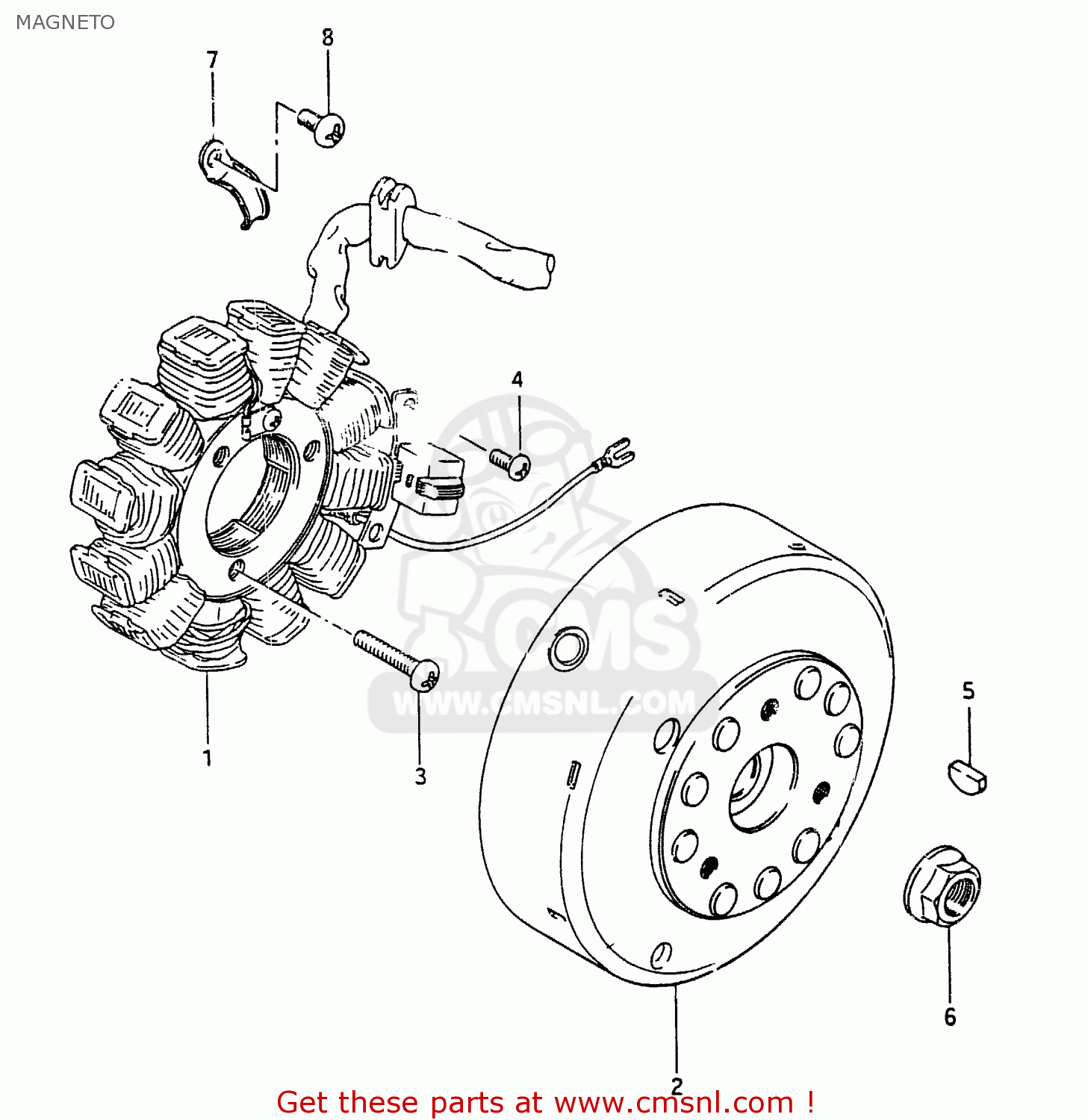

Magneto diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

MAGNETO RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

MAGNETO RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

3210116711
ref: 1

STATOR ASSY

€ 769.50

2

3210216711
ref: 2

ROTOR, FLYWHEEL

€ 359.50

3

0211206256
ref: 3

SCREW

€ 1.50

4

0214205107
ref: 4

SCREW

€ 2.50

5

0834131039
ref: 5

KEY

€ 2.00

6

0831626126
ref: 6

NUT 12MM

€ 3.00

7

0940307309
ref: 7

CLAMP

€ 2.00

8

0211206106
ref: 8

SCREW

€ 1.50
