RADIATOR

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

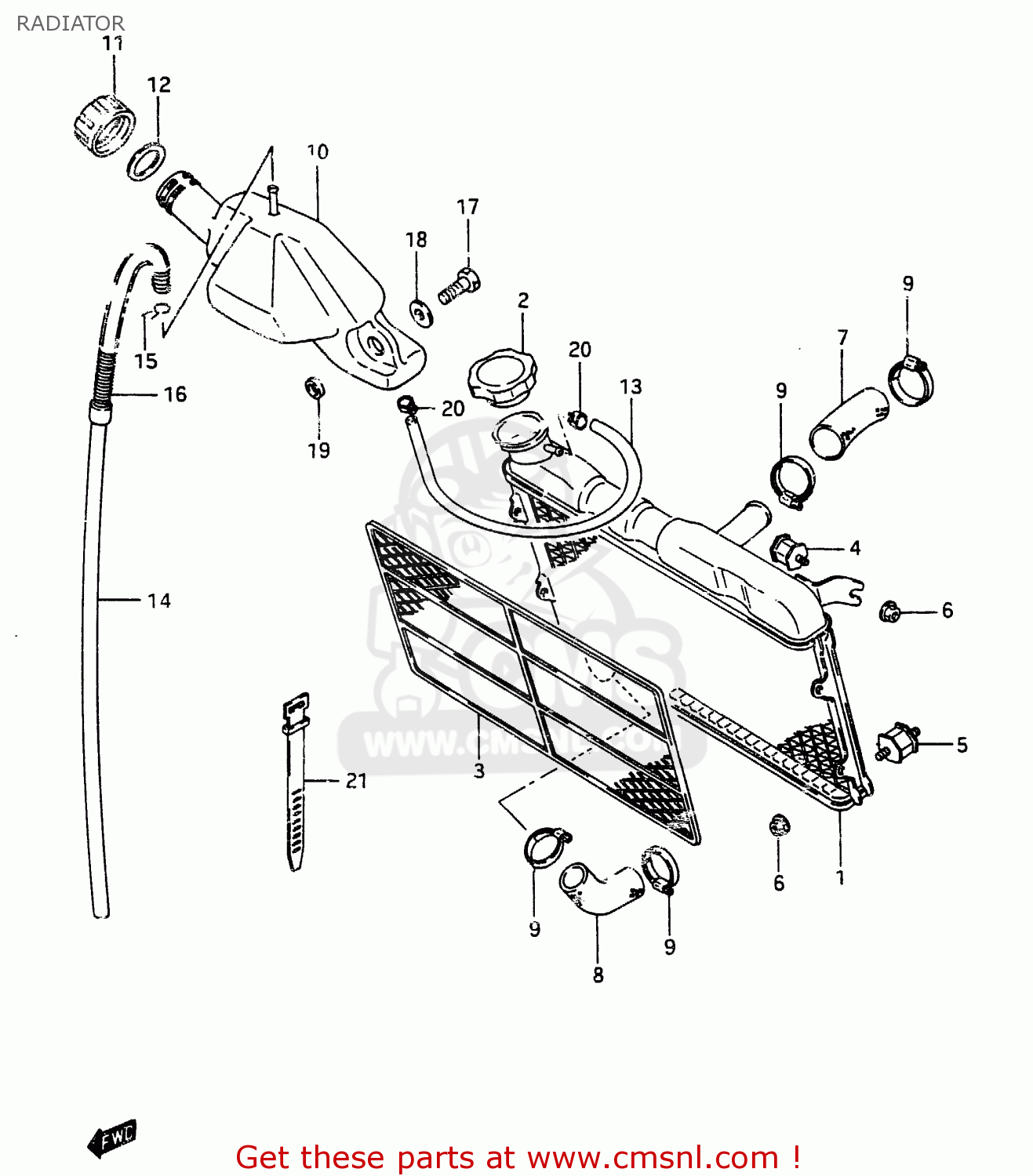

Radiator diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

RADIATOR RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
RADIATOR RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
RADIATOR RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
prices are in EUR
ref
part #
description
quantity
1
1771016711
ref: 1
RADIATOR
€ 675.00
2
1773001A01
ref: 2
CAP,RADIATOR
1773001A01
€ 33.50
3
1799116710
ref: 3
NET,RADIATOR
1799116710
€ 29.50
4
1778816700
ref: 4
BOLT,RADIATOR CUSHION
1778816700
€ 12.00
5
1778840A00
ref: 5
BOLT, RADIATOR CUSHION NO.2
1778840A00
€ 10.50
6
0831616064
ref: 6
NUT 6MM
0831616064
€ 2.50
7
1785116701
ref: 7
HOSE,RADIATOR INLET
€ 17.50
8
1785240A00
ref: 8
HOSE, RADIATOR OUTLET
€ 16.00
9
0940225501
ref: 9
CLAMP
0940225501
€ 8.50
10
1791040A01
ref: 10
TANK ASSY, RESERVOIR
€ 37.00
11
1784513700
ref: 11
CAP,RESERVOIR TANK
1784513700
€ 11.50
12
1784413700
ref: 12
GASKET,RESERVOIR TANK CAP (NAS)
1784413700
€ 2.50
13
1784816701
ref: 13
HOSE, INLET
€ 4.00
14
1784916701
ref: 14
HOSE, OUTLET
€ 28.50
15
0940109301
ref: 15
CLIP
0940109301
€ 1.00
16
0944010009
ref: 16
SPRING
0944010009
€ 10.50
17
0910308014
ref: 17
BOLT (8X16)
€ 3.50
18
0916008010
ref: 18
WASHER (8.2X20X1.6)
0916008010
€ 1.50
19
0918008100
ref: 19
SPACER(8.2X14X4.5)
0918008100
€ 22.50
20
0940108407
ref: 20
CLIP
€ 3.00
21
0940714403
ref: 21
CLAMP(L:125)
0940714403
€ 2.50
