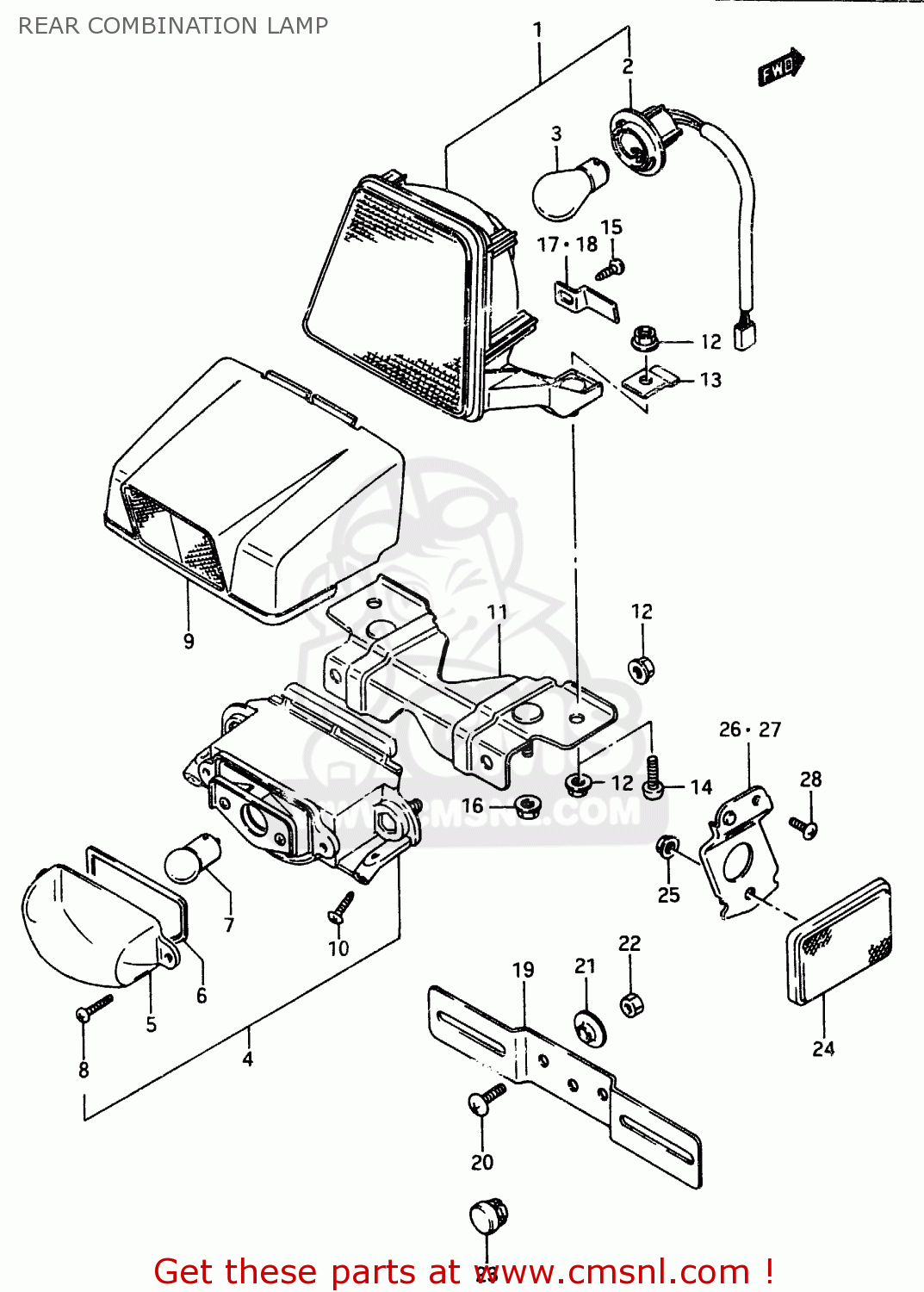

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571020A00
ref: 1
E1,E6,E24,E30

LAMP ASSY, REAR COMBINATION

€ 72.50

1

3571020A50
ref: 1
E2,E4,E15,E16,E21,E2

LAMP ASSY, REAR COMBINATION

€ 105.00

1

3572040A60
ref: 1
E22

LAMP UNIT, REAR COMBINATION

€ 0.00

2

3571820A00
ref: 2
E1,E6,E24,E30

SOCKET

€ 29.00

2

3571820A50
ref: 2
E2,E4,E15,E16,E21,E2

SOCKET

€ 29.00

3

0947112084
ref: 3
E1,E6,E24,E30

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

3

0947112083
ref: 3
E2,E4,E15,E16,E21,E2

BULB(12V21/5W)

€ 6.00

4

3591020A00
ref: 4
E1,E6,E24,E30

LAMP ASSY, LICENSE PLATE

€ 92.00

4

3591020A50
ref: 4
E2,E4,E15,E16,E21,E2

LAMP ASSY, LICENSE PLATE

€ 92.00

5

3591200A10
ref: 5
E1,E6,E24,E30

LENS,LICENSE LAMP

€ 16.00

5

3591200A20
ref: 5
E2,E4,E15,E16,E21,E2

LENS,LICENSE LAMP

€ 24.00

6

3591304A00
ref: 6

GASKET,LICESE LAMP (NAS)

€ 4.00

7

0947112037
ref: 7
E1,E6,E24,E30

BULB

€ 7.00

7

0947112059
ref: 7
E2,E4,E15,E16,E21,E2

BULB

€ 4.00

8

0321104208
ref: 8

SCREW

€ 1.50

9

3591720A00
ref: 9

COVER,LICENSE LAMP

€ 30.50

10

0324104165
ref: 10

SCREW

€ 4.50

11

3572640A00
ref: 11

BRACKET, TAIL LAMP

€ 24.00

12

0831626066
ref: 12

NUT

€ 2.00

13

3571640A00
ref: 13

PLATE,TAIL LAMP

€ 5.50

14

0211206166
ref: 14

SCREW

€ 2.00

15

0354104126
ref: 15

SCREW

€ 1.50

16

0831626066
ref: 16

NUT

€ 2.00

17

3573640A00
ref: 17

PLATE, RH

€ 0.00

18

3573740A00
ref: 18

PLATE, LH

€ 0.00

19

3592744110
ref: 19

PLATE,RR LICENSE

€ 22.50

20

0214206164
ref: 20

SCREW

€ 2.50

21

0916906025
ref: 21

WASHER,LOCK

€ 3.00

22

0831011065
ref: 22

NUT

€ 2.00

23

0932108005
ref: 23

CUSHION

€ 2.50

24

3595014A50
ref: 24
E39

REFLEX REFLECTOR, REAR SIDE

€ 0.00

25

0831616056
ref: 25
E39

NUT

€ 2.50

26

3597540A00
ref: 26
E39

BRACKET, RH

€ 0.00

27

3597640A00
ref: 27
E39

BRACKET, LH

€ 0.00

28

0214205107
ref: 28
E39

SCREW

€ 2.50
