FRONT BRAKE HOSE

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

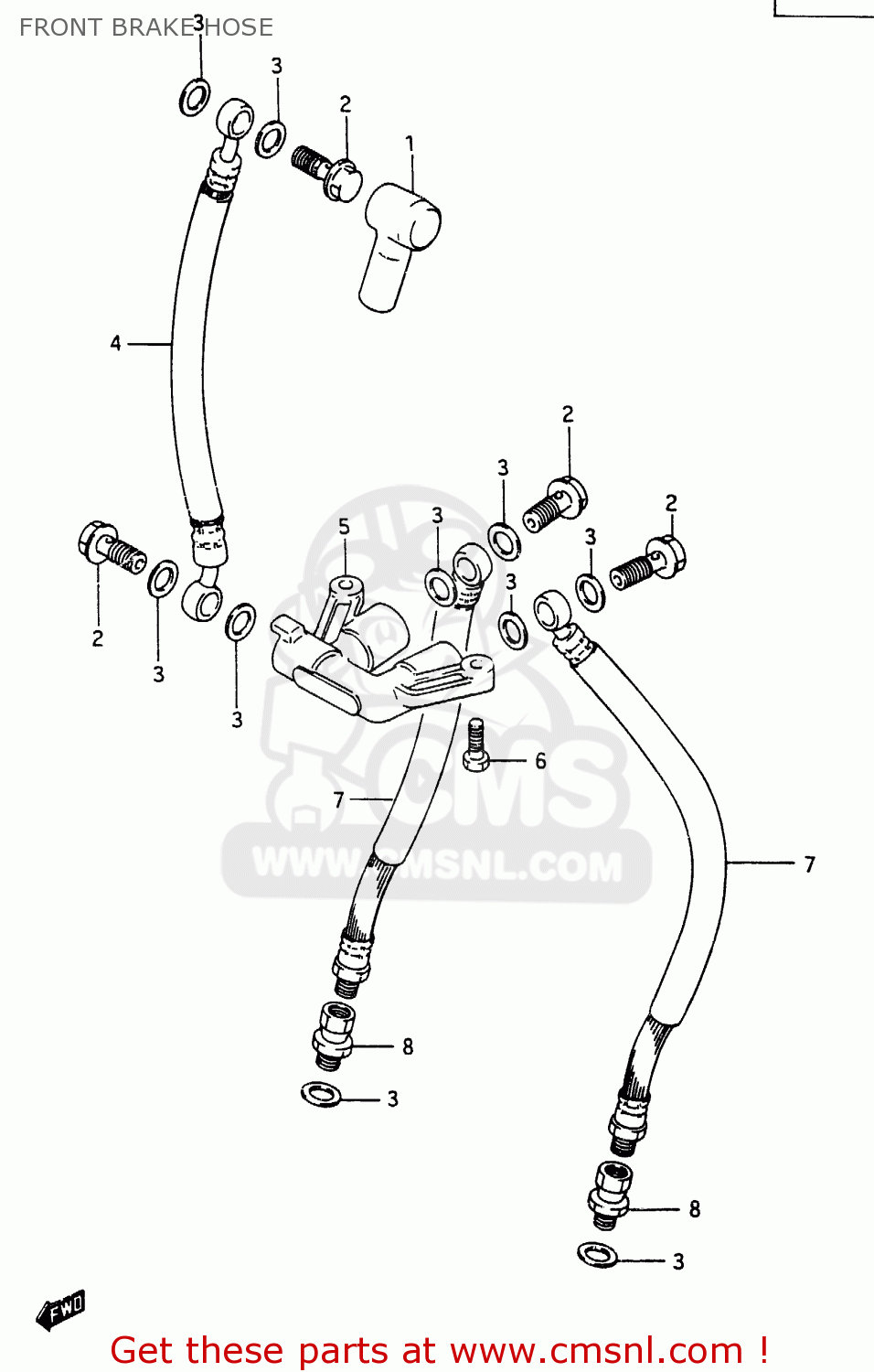

Front brake hose diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

FRONT BRAKE HOSE RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

FRONT BRAKE HOSE RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

5971149300
ref: 1

BOOT

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948040A00
ref: 4

HOSE, FRONT BRAKE NO.1

€ 45.00

5

5949116701
ref: 5

JOINT, BRAKE HOSE

€ 25.50

6

0912806006
ref: 6

BOLT(6X20)

€ 2.00

7

5924016732
ref: 7

HOSE, FRONT BRAKE

€ 55.00

8

5929043500
ref: 8

ADAPTER,BRAKE HOSE

€ 34.50
