FRONT MASTER CYLINDER

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

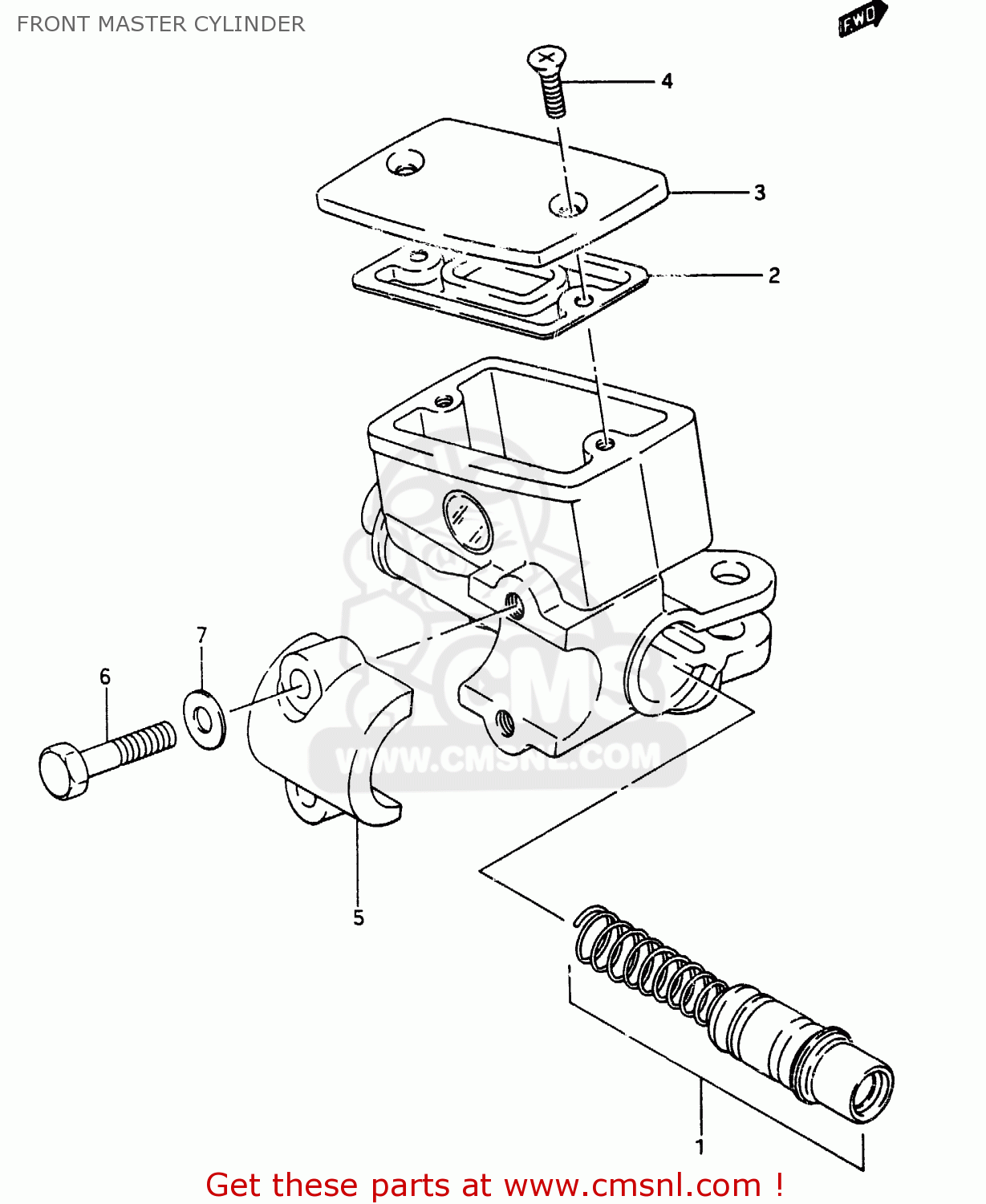

Front master cylinder diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

FRONT MASTER CYLINDER RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

FRONT MASTER CYLINDER RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

prices are in EUR

ref

part #

description

quantity

0

5960044260
ref: 0

CYLINDER ASSY, FRONT MASTER

€ 149.50

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

6966749300
ref: 2

6966749300

3

5966904A10
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967116700
ref: 5

HOLDER,MASTER CYLINDER

€ 18.50

6

0110706255
ref: 6

BOLT

€ 2.50

7

0832221064
ref: 7

WASHER

€ 2.00
