STEERING STEM

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

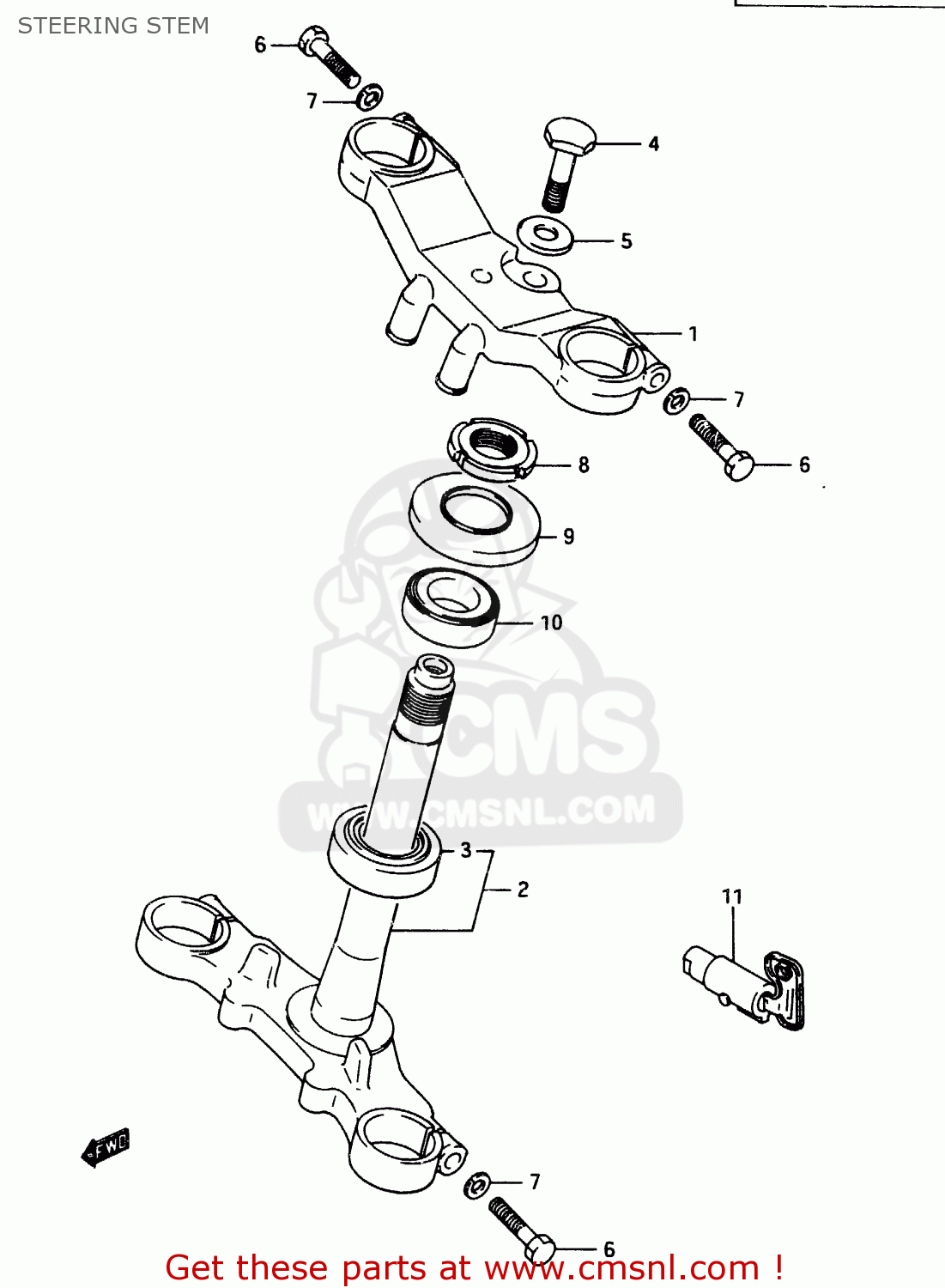

Steering stem diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

STEERING STEM RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

STEERING STEM RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

5131140A00291
ref: 1

STEM HEAD, STEERING (BLACK)

€ 135.00

2

5141040A20019
ref: 2

STEM, STEERING (BLACK)

€ 246.50

3

0926530005
ref: 3

BEARING

€ 49.50

4

5135316700
ref: 4

BOLT, STEERING SHAFT

€ 10.50

5

5135440A00
ref: 5

WASHER

€ 4.00

6

0110708355
ref: 6

BOLT

€ 3.50

7

0832121084
ref: 7

WASHER,LOCK,8.

€ 2.50

8

5163128000
ref: 8

NUT,STEERING STEM(25X44X10)

€ 12.50

9

0928534006
ref: 9

SEAL OIL

€ 16.50

10

0926525008
ref: 10

TAPER,ROLLER BEARING

€ 48.50

11

5190022662
ref: 11
E15,E22

LOCK ASSEMBLY,STEERING (NEI

€ 168.50
