HANDLEBAR

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

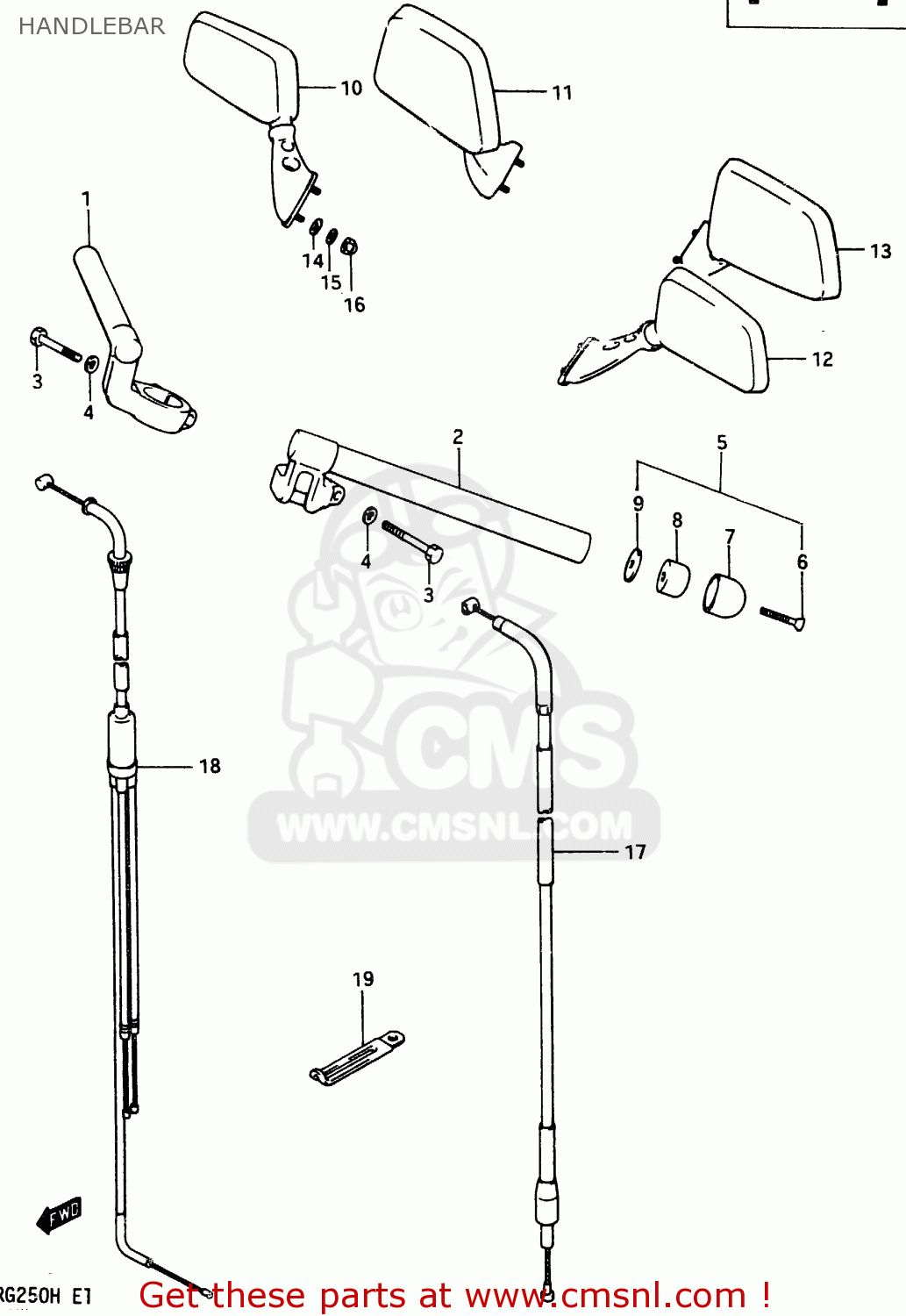

Handlebar diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

HANDLEBAR RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
HANDLEBAR RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
HANDLEBAR RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)
prices are in EUR
ref
part #
description
quantity
1
5611140A01
ref: 1
MODEL G
HANDLEBAR, RH
€ 218.00
1
5611140A10
ref: 1
MODEL H
HANDLEBAR, RH
€ 218.00
1
5611140A20
ref: 1
E22
HANDLEBAR, RH
€ 218.00
2
5615140A01
ref: 2
MODEL G
HANDLEBAR, LH
€ 270.50
2
5615140A10
ref: 2
MODEL H
HANDLEBAR, LH
€ 143.50
2
5615140A20
ref: 2
E22
HANDLEBAR, LH
€ 143.50
3
0110708555
ref: 3
BOLT 8X55
0110708555
€ 3.00
4
0832121084
ref: 4
WASHER,LOCK,8.
0832121084
€ 2.50
5
5620020810
ref: 5
BALANCER SET
5620020810
€ 24.00
6
0213206355
ref: 6
SCREW
0213206355
€ 2.00
7
5627433400
ref: 7
CAP,HANDLE BALANCER
5627433400
€ 43.00
8
5627133400
ref: 8
BALANCER,HANDLEBAR
5627133400
€ 18.50
9
5627534400
ref: 9
SPACER,BALANCER
5627534400
€ 2.50
10
5650020A00
ref: 10
MIRROR ASSY, REAR VIEW RH
5650020A00
€ 40.00
10
5650020A10
ref: 10
E16,E24
MIRROR ASSY, REAR VIEW RH
€ 52.50
11
5650027A10
ref: 11
E2,E4,E21,E34
MIRROR ASSY,RH
5650027A10
€ 53.50
12
5660020A00
ref: 12
MIRROR ASSY L
5660020A00
€ 40.00
12
5660020A10
ref: 12
E16,E24
MIRROR ASSY, REAR VIEW LH
5660020A10
€ 52.50
13
5660027A10
ref: 13
E2,E4,E21,E34
MIRROR ASSY,LH
5660027A10
€ 53.50
14
0832221064
ref: 14
WASHER
0832221064
€ 2.00
15
0832121064
ref: 15
WASHER,LOCK
0832121064
€ 2.00
16
0831311065
ref: 16
NUT 6MM
0831311065
€ 2.00
17
5820040A00
ref: 17
CABLE ASSY,CLUTCH
5820040A00
€ 23.00
18
5830040A00
ref: 18
MODEL G
CABLE ASSY, THROTTLE
€ 47.00
18
5830040A10
ref: 18
MODEL H
CABLE ASSY, THROTTLE
€ 52.00
19
0940406415
ref: 19
MODEL G
CLAMP
€ 3.00
19
0940406404
ref: 19
MODEL H
CLAMP
0940406404
€ 3.00
