ELECTRICAL

RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

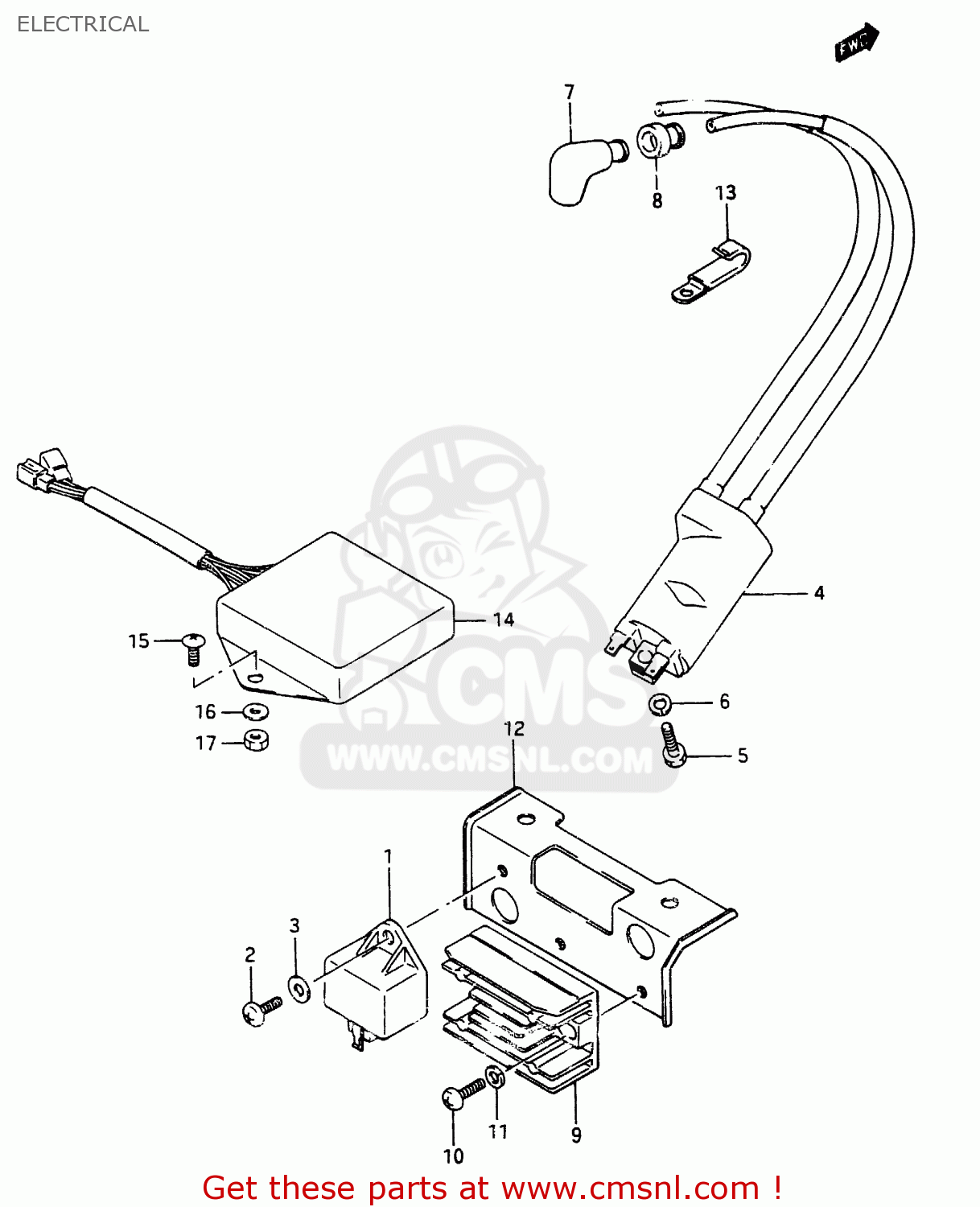

Electrical diagram RG250FC 1987 (H) (E01 E02 E06 E15 E16 E22 E24 E25 E30 E34)

prices are in EUR

ref

part #

description

quantity

3290040A00
ref: 1

CDI UNIT

€ 92.00

0211206126
ref: 2

SCREW

€ 1.50

0832221066
ref: 3

WASHER, LOWER

€ 2.00

3341016701
ref: 4

COIL ASSY,IGNITION

€ 385.00

0912806006
ref: 5

BOLT(6X20)

€ 2.00

0832121067
ref: 6

WASHER,LOCK

€ 2.50

3351020A00
ref: 7

CAP,SPARK PLUG

€ 23.00

3354298000
ref: 8

SEAL,SPARK PLU

€ 4.50

3280040A00
ref: 9

RECTIFIER ASSY

€ 306.50

0211206206
ref: 10

SCREW

€ 2.00

0832121066
ref: 11

WASHER,LOCK

€ 2.00

4741116701
ref: 12

HOLDER, ELECTRIC PARTS

€ 7.50

0940306307
ref: 13

CLAMP

€ 4.50

3291040A00
ref: 14

UNIT, EXHAUST VALVE CONTROL

€ 278.00

0214206126
ref: 15

SCREW

€ 2.00

0832221066
ref: 16

WASHER, LOWER

€ 2.00

0831011066
ref: 17

NUT

€ 2.00

ELECTRICAL

all assemblies
