BATTERY

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

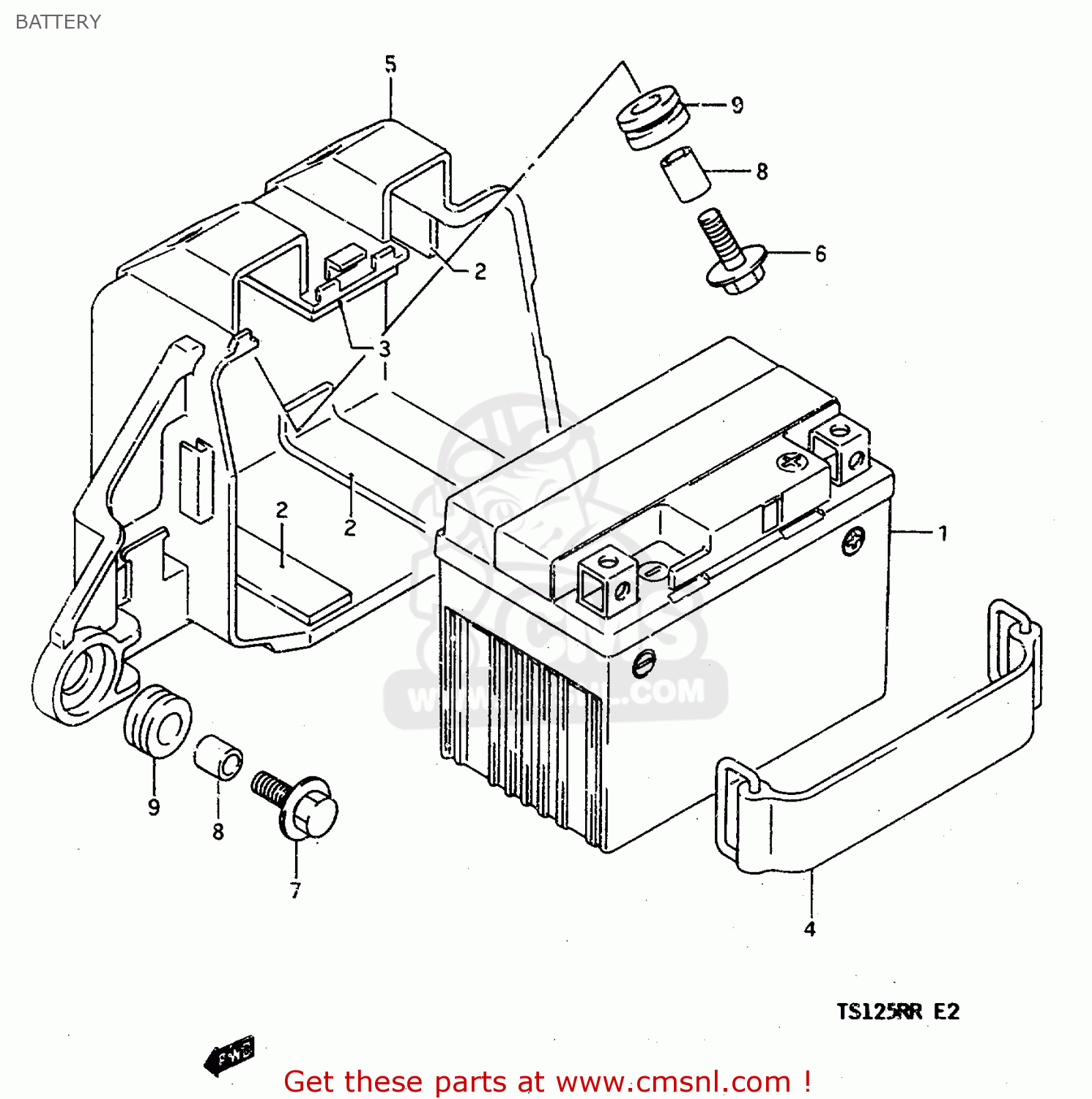

Battery diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3361003D00
ref: 1-1
MODEL K/L

BATTERY,YT4L-B

€ 40.00

1-2

3361014D20
ref: 1-2
MODEL M/N/P/R

BATTERY ASSY (12V) YT4L-BS

€ 40.00

2-1

3365203D00
ref: 2-1

PROTECTOR,BATTERY

€ 5.00

2-2

3365203D00
ref: 2-2
CUT 20X40

PROTECTOR,BATTERY

€ 5.00

3-1

3365203D20
ref: 3-1

PROTECTOR,BATTERY

€ 5.00

3-2

3365137000
ref: 3-2
CUT 30X30

PROTECTOR(170X95X3.0)

€ 5.00

0946200043
ref: 4

BAND

€ 4.50

4154103D00
ref: 5

HOLDER,BATTERY

€ 14.00

0911606130
ref: 6

BOLT(6X16)

€ 2.00

0911606010
ref: 7

BOLT(6X20)

€ 2.00

0918006152
ref: 8

SPACER

€ 3.00

0932009016
ref: 9

CUSHION

€ 2.50
