MAGNETO

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

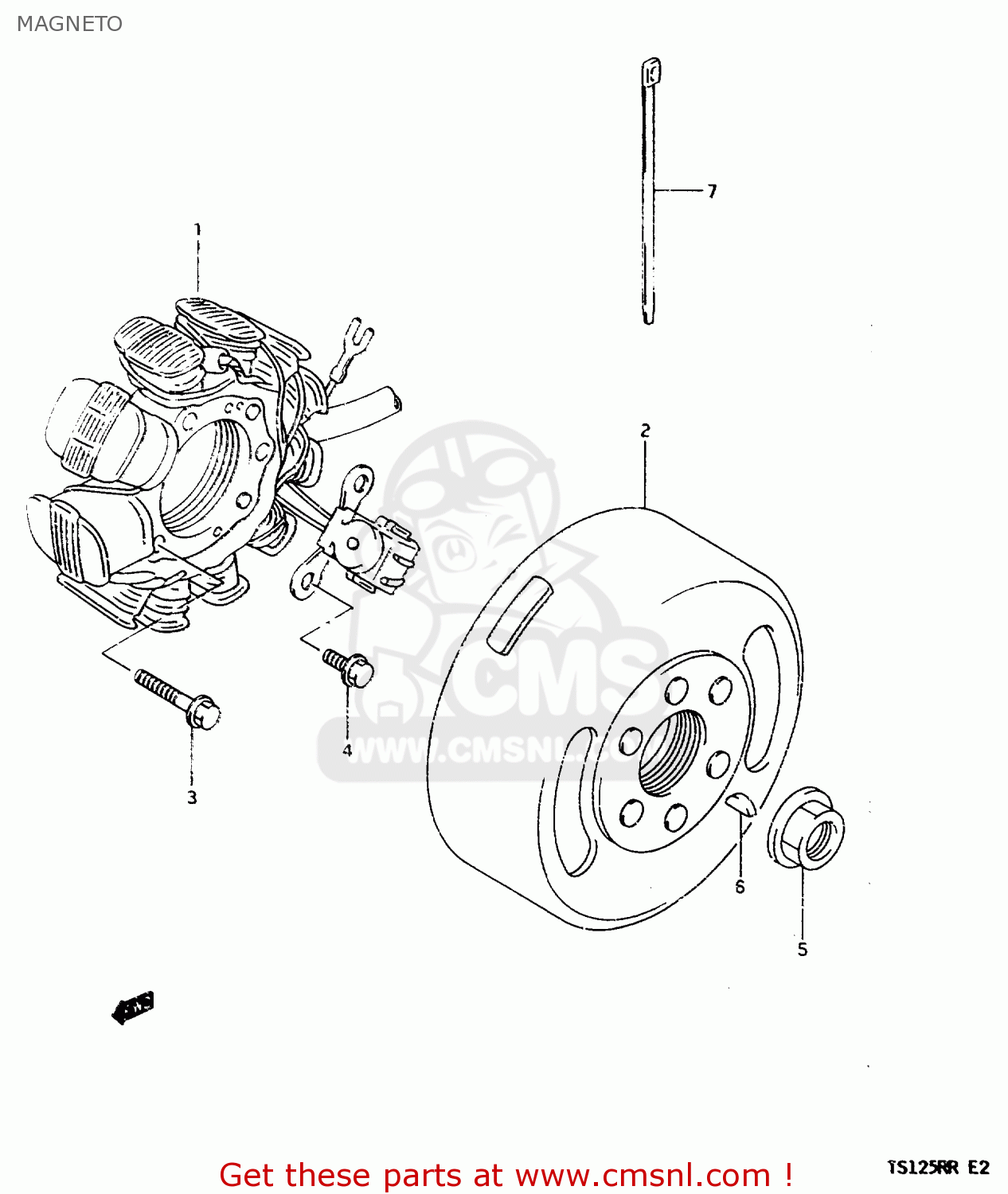

Magneto diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

MAGNETO TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

MAGNETO TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

3210103D00
ref: 1

STATOR ASSY

€ 437.50

2

3210208D20
ref: 2
32102-03D00

ROTOR ASSY

€ 379.00

3

0154705257
ref: 3

BOLT

€ 2.00

4

0154705107
ref: 4

BOLT

€ 1.50

5

0831616128
ref: 5

NUT

€ 2.50

6

0834131039
ref: 6

KEY

€ 2.00

7

0940714407
ref: 7

CLAMP(L:145)

€ 4.00
