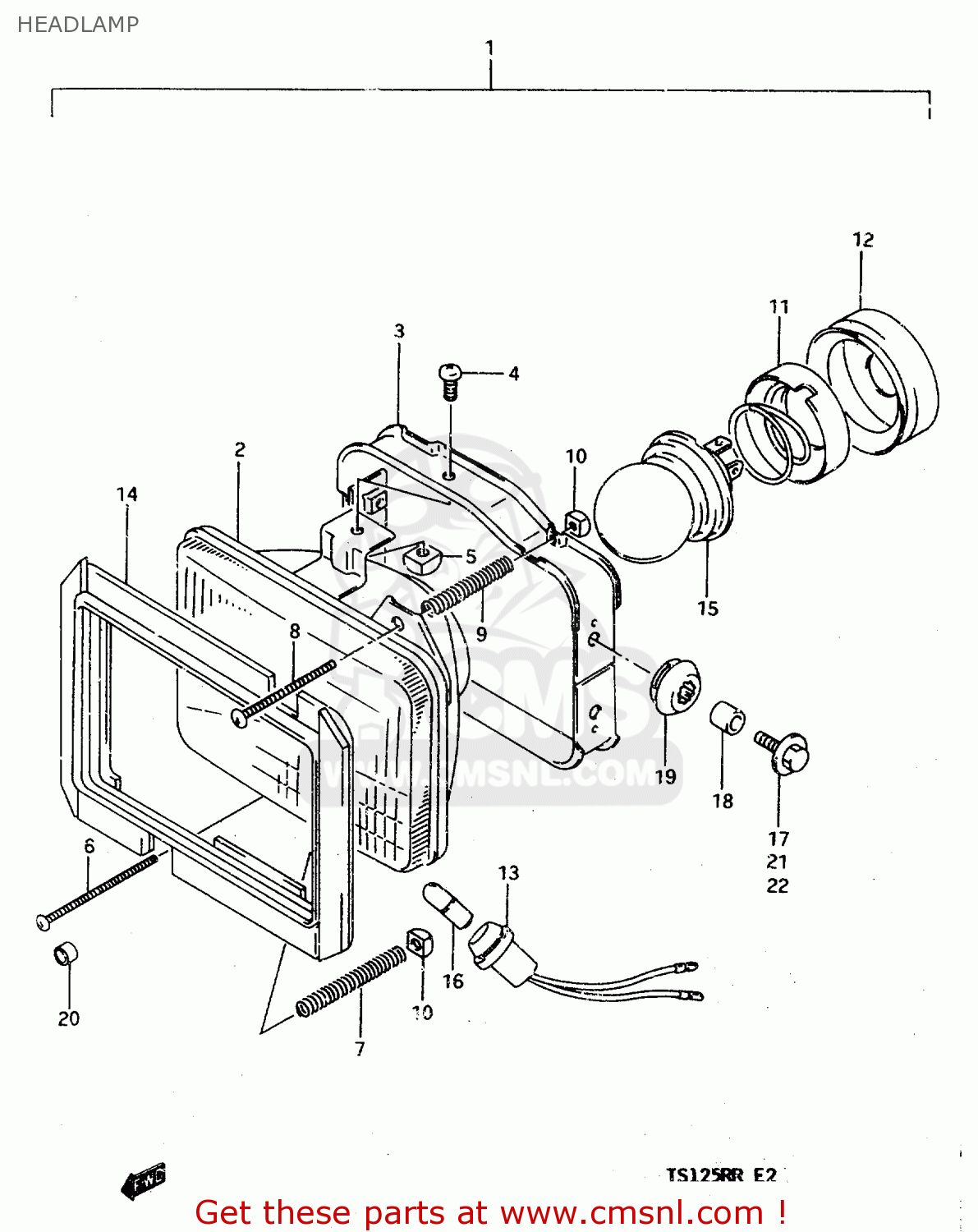

HEADLAMP

ref

part #

description

quantity

1-1

3510001A21999
ref: 1-1
E2

HEADLAMP ASSY

€ 159.50

1-2

3510001A51999
ref: 1-2
E4,E15,E17,E18,E21,E

HEADLAMP ASSY

€ 141.00

2-1

3512101A20
ref: 2-1
E2

UNIT

€ 94.50

2-2

3512101A50
ref: 2-2
E4,E15,E17,E18,E21,E

UNIT

€ 81.50

3

3514101A00
ref: 3

HOUSING

€ 24.50

4

0211205126
ref: 4

SCREW 5X12

€ 1.50

5

3513545900
ref: 5

NUT

€ 2.50

6-1

3515149200
ref: 6-1
MODEL K/L/M/N/P

SCREW,HEADLAMP ADJUST

€ 4.00

6-2

3515145900
ref: 6-2
MODEL R

SCREW

€ 4.00

7

3515449200
ref: 7

SPRING

€ 3.50

8

3515131300
ref: 8

SCREW,HEADLAMP ADJUST

€ 3.00

9

3515431300
ref: 9

SPRING

€ 2.00

10

3513545600
ref: 10

NUT

€ 3.00

11

3513605300
ref: 11

HOLDER,BULB

€ 9.50

12

3517305300
ref: 12

COVER,SOCKET

€ 9.00

13-1

3611845900
ref: 13-1
MODEL K/L/M/N/P

SOCKET,PARKING

€ 13.00

13-2

3611844B00
ref: 13-2
MODEL R

SOCKET

€ 13.00

14

3512901A01
ref: 14

SHADE

€ 20.00

15-1

0947112048
ref: 15-1
EXECUTED LOCALLY

BULB(12V45/40W)

€ 7.50

15-2

0947112049
ref: 15-2
E4, EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

16

0947112063
ref: 16

BULB(12V4W)

€ 6.00

17

0911606011
ref: 17

BOLT 6X20

€ 2.00

18

0918006030
ref: 18

SPACER (6.8X10X10)

€ 2.00

19

0932009018
ref: 19

CUSHION

€ 2.00

20

3515843400
ref: 20

CAP,SCREW

€ 2.00

21

0110706257
ref: 21

BOLT

€ 2.00

22

0916006027
ref: 22

WASHER (6.5X20X1.2)

€ 2.00
