FRONT DAMPER

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

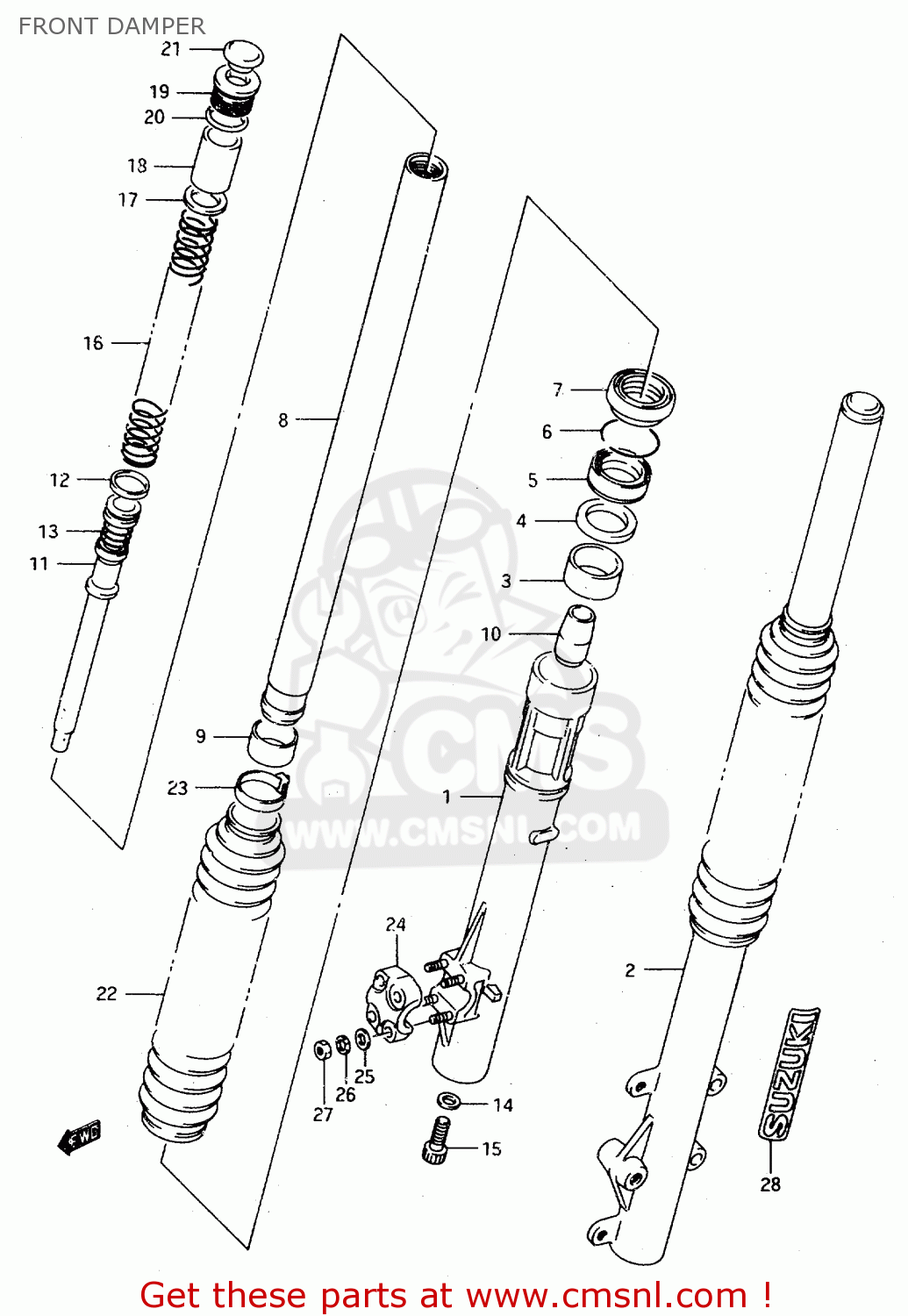

Front damper diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

FRONT DAMPER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
FRONT DAMPER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
FRONT DAMPER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
0
5110303D00
ref: 0
DAMPER ASSY,FR FORK,R
€ 677.50
0
5110303D20
ref: 0
E34
DAMPER ASSY, RH
€ 1,079.00
0
5110403D00
ref: 0
DAMPER ASSY,FR FORK,L
5110403D00
€ 279.50
0
5110403D20
ref: 0
E34
DAMPER ASSY, LH
€ 570.50
1
5113003D00
ref: 1
TUBE, OUTER RH
€ 344.50
2
5114103D00
ref: 2
TUBE,OUTER,L
5114103D00
€ 304.00
3
5115248B31
ref: 3
BUSH,GUIDE
5115248B31
€ 20.00
4
5116838B00
ref: 4
SPACER,SEAL
5116838B00
€ 5.00
5-1
5115303D00
ref: 5-1
MODEL K/L/M
SEAL, OIL
€ 15.50
5-2
5115308D00
ref: 5-2
MODEL N/P/R
SEAL,OIL
5115308D00
€ 15.50
6
5155638B00
ref: 6
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
7
5117303D00
ref: 7
SEAL,DUST
5117303D00
€ 18.50
8-1
5111003D00
ref: 8-1
TUBE,INNER
5111003D00
€ 201.00
8-2
5111003D20
ref: 8-2
E34
TUBE, INNER
€ 248.50
9
5112103D00
ref: 9
BUSH,SLIDE
5112103D00
€ 15.00
10
5119548B31
ref: 10
PIECE,OIL LOCK
5119548B31
€ 19.00
11-1
5114603D00
ref: 11-1
MODEL K/L/M/N/P
CYLINDER
5114603D00
€ 43.50
11-2
5114608D50
ref: 11-2
MODEL R
CYLINDER
€ 43.50
11-3
5114603D20
ref: 11-3
E34
CYLINDER
€ 0.00
12
5119619C00
ref: 12
RING,PISTON
5119619C00
€ 4.50
13
5117712C00
ref: 13
SPRING,REBOUND
5117712C00
€ 8.00
14
5114836011
ref: 14
GASKET (NAS)
5114836011
€ 4.00
15
5114748130
ref: 15
BOLT(8X27)
5114748130
€ 3.50
16-1
5117103D00
ref: 16-1
MODEL K/L/M/N/P
SPRING
€ 38.50
16-2
5117108D50
ref: 16-2
MODEL R
SPRING
5117108D50
€ 38.50
16-3
5117103D20
ref: 16-3
E34
SPRING
€ 0.00
17
5119219C00
ref: 17
JOINT,SPRING
5119219C00
€ 3.50
18
5117612C10
ref: 18
COLLAR,SPRING(32.9X34X50)
5117612C10
€ 11.50
19
5118903D00
ref: 19
BOLT, FORK
€ 0.00
20
5111712C00
ref: 20
O RING
5111712C00
€ 3.00
21
5135103D00
ref: 21
CAP,FORK
5135103D00
€ 6.50
22-1
5157103D0014C
ref: 22-1
MODEL K/L
BOOT (RED)
5157103D0014C
€ 56.50
22-2
5157103D0025Y
ref: 22-2
MODEL K/L
BOOT
5157103D0025Y
€ 56.50
22-3
5157103D00163
ref: 22-3
MODEL M/N/P/R
BOOT (YELLOW)
€ 56.50
22-4
5157103D0034S
ref: 22-4
MODEL K/L
BOOT
5157103D0034S
€ 53.50
22-5
5157103D0038K
ref: 22-5
MODEL R
BOOT (BLUE)
€ 53.50
22-6
5157103D0034S
ref: 22-6
MODEL R
BOOT
5157103D0034S
€ 53.50
23
5157503D00
ref: 23
BAND,BOOT
€ 5.00
24
5113203D00
ref: 24
HOLDER, AXLE RH
€ 24.50
25
0832221067
ref: 25
WASHER
0832221067
€ 2.00
26
0832121067
ref: 26
WASHER,LOCK
0832121067
€ 2.50
27
0831011068
ref: 27
NUT
0831011068
€ 2.50
28
6825103D0017U
ref: 28
MODEL M/N
EMBLEM, SUZUKI
€ 0.00
