FRAME COVER (MODEL P/R)

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

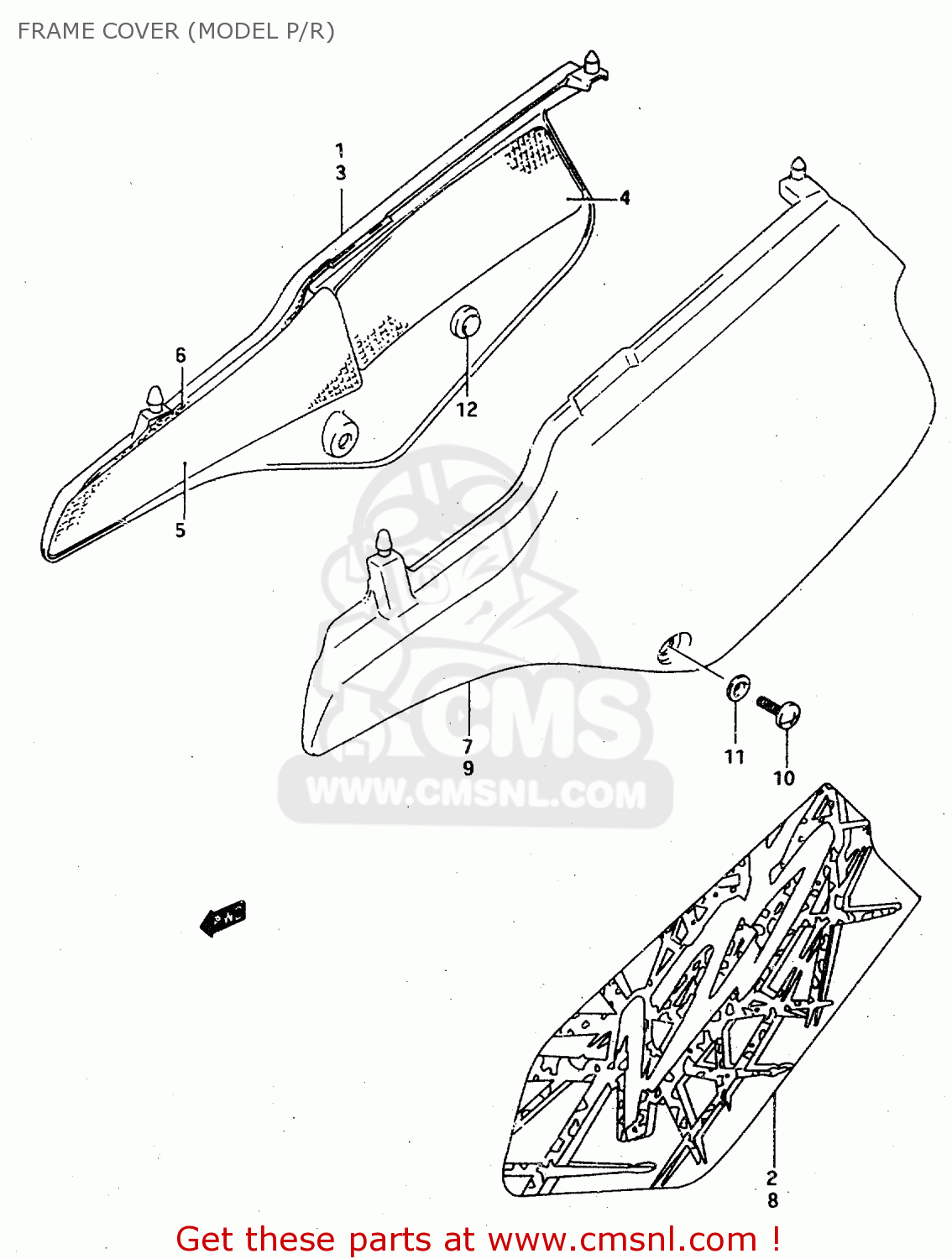

Frame cover (model p/r) diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

FRAME COVER (MODEL P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
FRAME COVER (MODEL P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
FRAME COVER (MODEL P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
4711008D2030H
ref: 1-1
MODEL P FOR 25Y
COVER, FRAME RH (WHITE)
€ 61.50
1-2
4711008D2028X
ref: 1-2
MODEL P FOR 0NF
COVER, FRAME RH (WHITE)
€ 61.50
2-1
6813503D50A4J
ref: 2-1
MODLE P FOR 30H
TAPE, FRAME COVER RH
€ 71.00
2-2
6813503D50A6M
ref: 2-2
MODEL P FOR 28X
TAPE, FRAME COVER RH
€ 71.00
3
4711103D0130H
ref: 3
MODEL R
COVER,FRAME,R(WHITE)
4711103D0130H
€ 61.50
4
4716603D00
ref: 4
HEATSHIELD,FRAME COVER,R
4716603D00
€ 15.50
5
4716708D00
ref: 5
E18
HEATSHIELD,FRAME COVER,R
€ 18.50
6
4716803D00
ref: 6
E18
SHIELD, FRAME COVER RH NO.3
€ 13.00
7-1
4721008D2030H
ref: 7-1
MODEL P FOR 25Y
COVER, FRAME LH (WHITE)
€ 61.50
7-2
4721008D2028X
ref: 7-2
MODEL P FOR 0NF
COVER, FRAME LH (WHITE)
€ 61.50
8-1
6814503D50A4J
ref: 8-1
MODEL P FOR 30H
TAPE, FRAME COVER LH
€ 71.00
8-2
6814503D50A6M
ref: 8-2
MODEL P FOR 28X
TAPE, FRAME COVER LH
€ 0.00
9
4721103D0130H
ref: 9
MODEL R
COVER,FRAME,L(WHITE)
4721103D0130H
€ 61.50
10
0214206167
ref: 10
SCREW
0214206167
€ 2.00
11
0916906028
ref: 11
WASHER
0916906028
€ 2.00
12
0932110018
ref: 12
CUSHION
0932110018
€ 5.00
7
4716603D00
ref: 7
HEATSHIELD,FRAME COVER,R
4716603D00
€ 15.50
8
4716708D00
ref: 8
E18
HEATSHIELD,FRAME COVER,R
€ 18.50
9
4716803D00
ref: 9
E18
SHIELD, FRAME COVER RH NO.3
€ 13.00
10-1
4721003D2114C
ref: 10-1
MODEL L
COVER, FRAME LH (RED)
€ 68.50
10-2
4721003D2125Y
ref: 10-2
MODEL L
COVER, FRAME LH (YELLOW)
€ 71.50
10-3
4721003D210NF
ref: 10-3
MODEL L
COVER, FRAME LH (YELLOW)
€ 69.50
11-1
6814503D207AG
ref: 11-1
MODEL L FOR 14C
TAPE, LH
€ 20.50
11-2
6814503D20B14
ref: 11-2
MODEL L FOR 25Y
TAPE, LH
€ 20.50
11-3
6814503D20B52
ref: 11-3
MODEL L FOR 0NF
TAPE, LH
€ 0.00
12-1
4721003D5030H
ref: 12-1
MODEL M
COVER, FRAME LH (WHITE)
€ 61.50
12-2
4721003D5025Y
ref: 12-2
MODEL M
COVER, FRAME LH (YELLOW)
€ 71.50
12-3
4721003D500NF
ref: 12-3
MODEL M
COVER, FRAME LH (BLUE)
€ 69.50
13-1
6814503D301DW
ref: 13-1
MODEL M FOR 30H
TAPE, LH
€ 74.50
13-2
6814503D301DV
ref: 13-2
MODEL M FOR 25Y
TAPE, LH
€ 82.00
13-3
6814503D301DY
ref: 13-3
MODEL M FOR 0NF
TAPE, LH
€ 74.50
14-1
4721008D1025Y
ref: 14-1
MODEL N
COVER, FRAME LH (YELLOW)
€ 71.50
14-2
4721008D100NF
ref: 14-2
MODEL N
COVER, FRAME LH (BLUE)
4721008D100NF
€ 69.50
15-1
6814503D40N52
ref: 15-1
MODEL N FOR 25Y
TAPE, LH
€ 0.00
15-2
6814503D40N53
ref: 15-2
MODEL N FOR 0NF
TAPE, LH
€ 0.00
16-1
0913906073
ref: 16-1
MODEL L/M
SCREW
€ 5.00
16-2
0214206167
ref: 16-2
MODEL N
SCREW
0214206167
€ 2.00
17
0916906028
ref: 17
WASHER
0916906028
€ 2.00
18-1
0932110013
ref: 18-1
MODEL L/M
CUSHION
0932110013
€ 5.00
18-2
0932110018
ref: 18-2
MODEL N
CUSHION
0932110018
€ 5.00
