FRONT WHEEL (MODEL L/M/N/P/R)

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

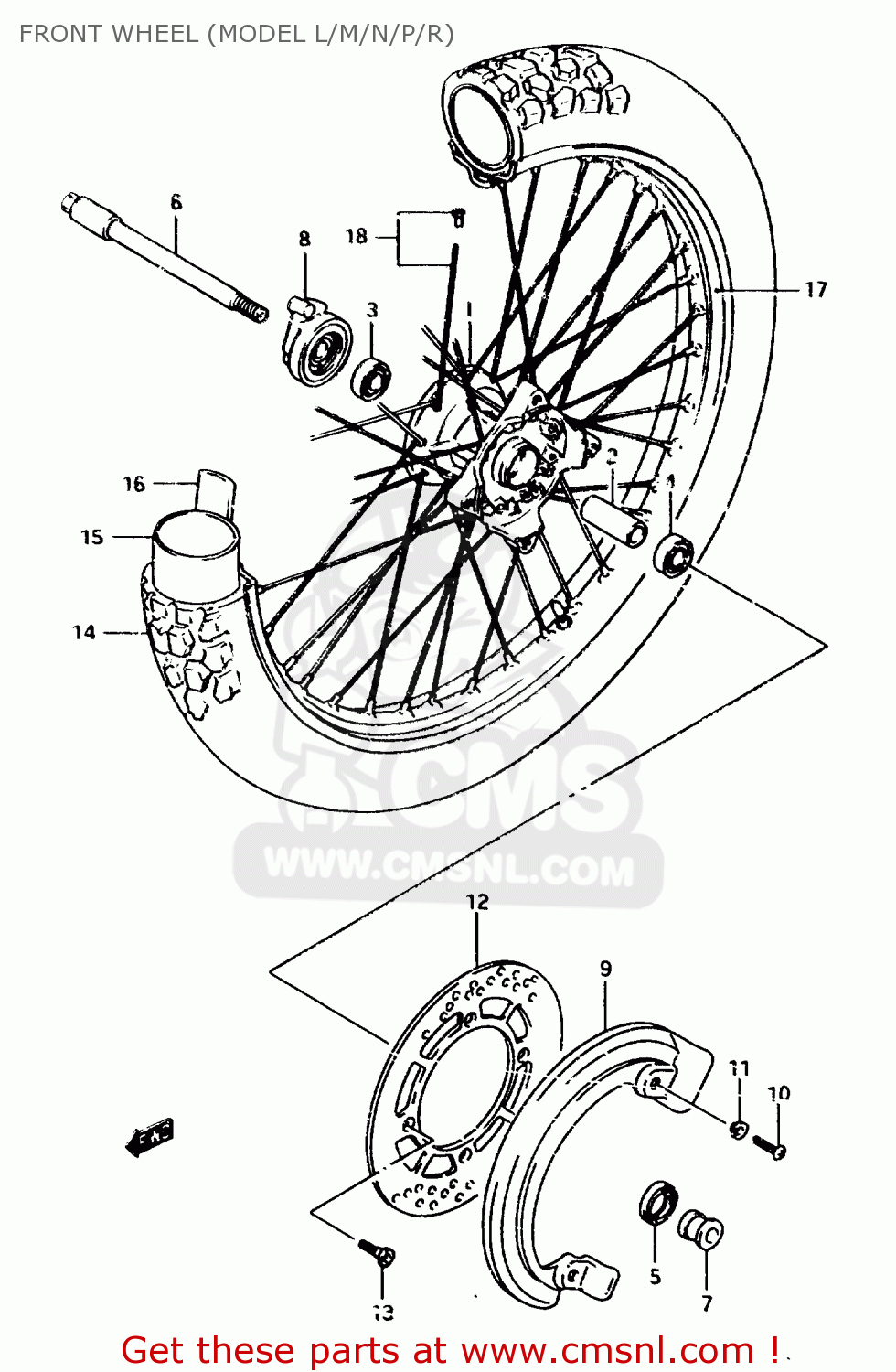

Front wheel (model l/m/n/p/r) diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

FRONT WHEEL (MODEL L/M/N/P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
FRONT WHEEL (MODEL L/M/N/P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
FRONT WHEEL (MODEL L/M/N/P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
5411115D00
ref: 1
HUB,FR WHEEL
5411115D00
€ 185.50
2
5473144B00
ref: 2
SPACER,FR HUB BEARING
5473144B00
€ 11.50
3
0811362027
ref: 3
BEARING
0811362027
€ 14.50
4
0812362027
ref: 4
BEARING
0812362027
€ 14.50
5
0928422004
ref: 5
SEAL,OIL(22X35X5)
0928422004
€ 8.00
6-1
5471114D00
ref: 6-1
MODEL L/M/N
AXLE,FR
5471114D00
€ 66.50
6-2
5471114D10
ref: 6-2
MODEL P/R-54711-14D0
AXLE,FRONT
€ 66.50
7
5475114D00
ref: 7
SPACER,FR AXLE,L
5475114D00
€ 18.50
8
5460014D00
ref: 8
BOX ASSY,SPEEDOMETER GEAR
5460014D00
€ 87.50
9-1
5923103D000NF
ref: 9-1
MODEL L/N FOR 0NF
COVER, FRONT BRAKE DISC (BLUE)
€ 26.50
9-2
5923103D0025Y
ref: 9-2
MODEL L/M/N FOR 25Y
COVER,FR BRAKE DISC
5923103D0025Y
€ 26.50
9-3
5923103D0014C
ref: 9-3
MODEL L/M FOR 14C
COVER, FRONT BRAKE DISC (RED)
€ 26.50
9-4
5923103D0030H
ref: 9-4
MODEL M FOR 30HMODEL
COVER,FR BRAKE DISC
5923103D0030H
€ 26.50
10
0214206167
ref: 10
SCREW
0214206167
€ 2.00
11
0916906033
ref: 11
WASHER
0916906033
€ 1.50
12
5922103D01
ref: 12
DISC,FR BRAKE
5922103D01
€ 152.50
13-1
5942103A01
ref: 13-1
-59421-03A100
BOLT,BRAKE DISC
5942103A01
€ 4.00
13-2
5942103A10
ref: 13-2
BOLT,BRAKE DISC
5942103A10
€ 4.00
14
5511003D00
ref: 14
BRIDGESTONE
TIRE, FRONT (2.75X21)
€ 0.00
15
5520016510
ref: 15
TUBE
5520016510
€ 32.50
16
5526116510
ref: 16
PROTECTOR,WHEEL,INNER
€ 5.00
17
5531101A21
ref: 17
RIM,FR WHEEL(1.60X21)
5531101A21
€ 97.50
18
5532003D10
ref: 18
SPOKE SET
5532003D10
€ 48.50
