Buy Suzuki TS Parts Online


KICK STARTER

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

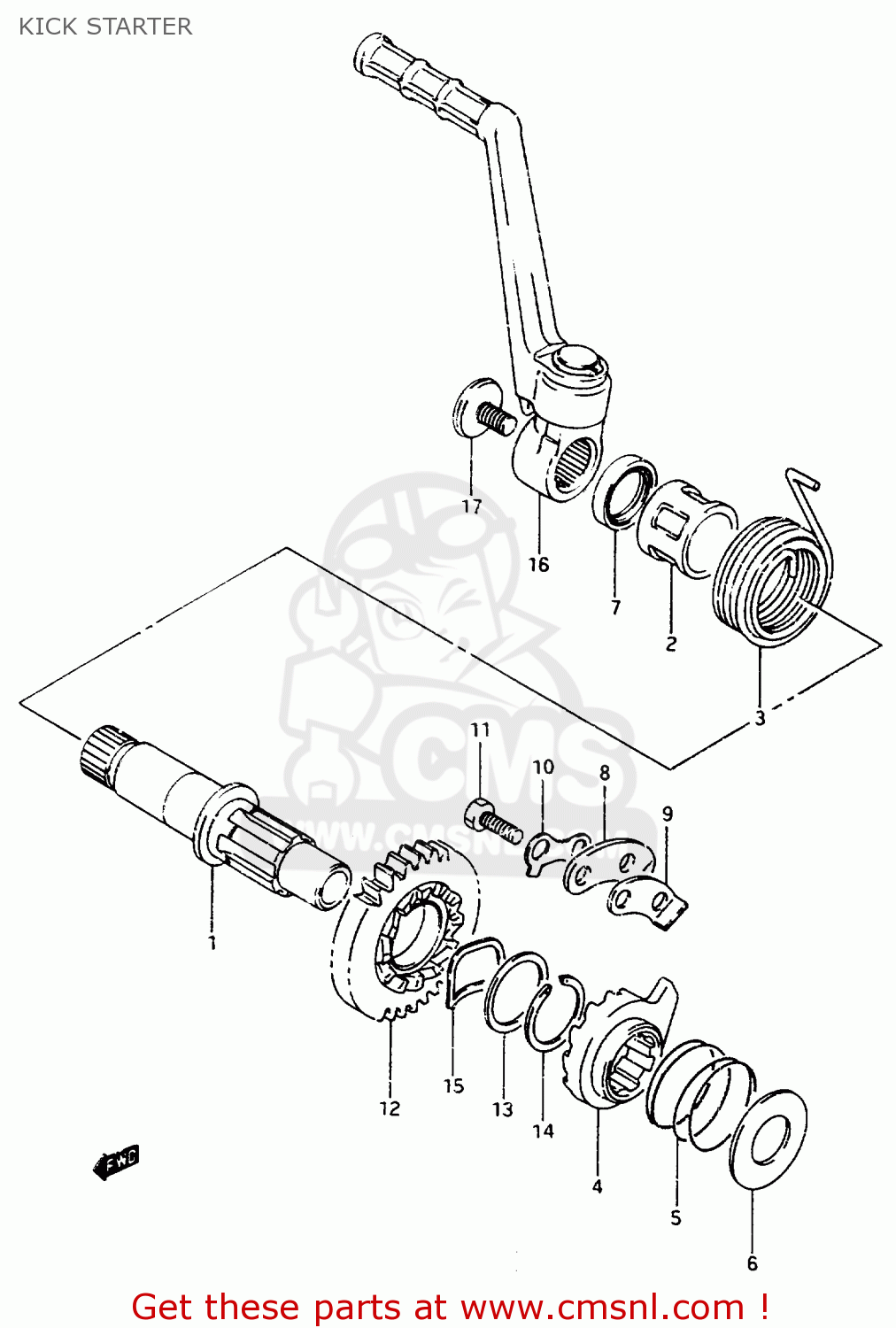

Kick starter diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

KICK STARTER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
KICK STARTER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
KICK STARTER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
2621108D00
ref: 1
SHAFT,KICK STARTER
2621108D00
€ 61.50
2
2622103D00
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 7.50
3
0944843003
ref: 3
SPRING
0944843003
€ 8.00
4
2623103D00
ref: 4
STARTER, KICK
€ 23.50
5
0944032002
ref: 5
SPRING
0944032002
€ 2.00
6
0821117341
ref: 6
WASHER
0821117341
€ 2.00
7
0928320044
ref: 7
SEAL,OIL(20X27X6)
0928320044
€ 8.00
8
2623230000
ref: 8
GUIDE,KICK STARTER
2623230000
€ 6.00
9
2623330000
ref: 9
STOPPER,KICK STARTER
2623330000
€ 4.00
10
0916906003
ref: 10
WASHER
0916906003
€ 1.50
11-1
0110706167
ref: 11-1
MODEL K/L/M/N/P
BOLT
0110706167
€ 3.00
11-2
0150006163
ref: 11-2
MODEL R
BOLT
0150006163
€ 2.00
12
2624003D00
ref: 12
GEAR, KICK STARTER DRIVE (NT:29)
€ 117.00
13-1
0822122286
ref: 13-1
~F.NO.112113
THRUST WASHER
€ 2.50
13-2
0821122281
ref: 13-2
F.NO.112114~
SHIM
0821122281
€ 4.00
14
0938022006
ref: 14
CIRCLIP
0938022006
€ 3.00
15
0916422003
ref: 15
~F.NO.112113
WASHER
0916422003
€ 4.00
16
2630008D00
ref: 16
LEVER ASSY, KICK STARTER
€ 135.50
17-1
0910608073
ref: 17-1
MODEL K, 09106-08098
BOLT
€ 6.50
17-2
0910608098
ref: 17-2
MODEL L/M/N/P/R
BOLT(8X14)
0910608098
€ 6.50
