CYLINDER

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

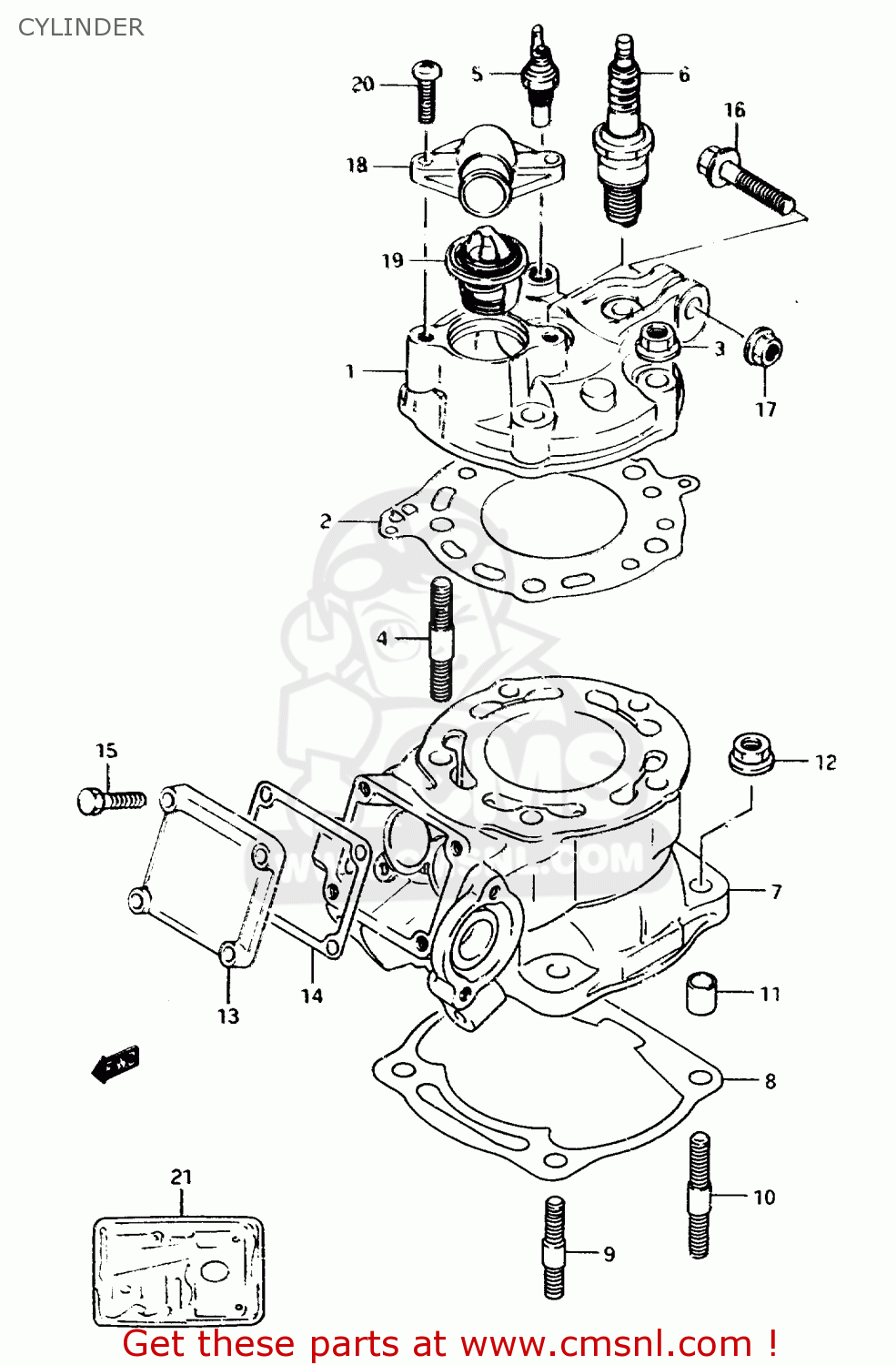

Cylinder diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

CYLINDER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
CYLINDER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
CYLINDER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
1111103D10
ref: 1-1
~E.NO.115346
HEAD, CYLINDER
€ 190.00
1-2
1111103D11
ref: 1-2
E.NO.115347~
HEAD, CYLINDER
€ 190.00
1-3
1111103D00
ref: 1-3
E24
HEAD, CYLINDER
€ 727.50
2
1114103D00
ref: 2
GASKET,CYLINDER HEAD (NAS)
1114103D00
€ 17.00
3-1
0831616088
ref: 3-1
MODEL K/L/M/N/P
NUT
0831616088
€ 2.50
3-2
0831610083
ref: 3-2
MODEL R
NUT
0831610083
€ 3.00
4
0910808198
ref: 4
BOLT,STUD
0910808198
€ 5.00
5
3485082012
ref: 5
EXCEPT E24
GAUGE,WATER,TM
€ 82.50
6-1
0948200127
ref: 6-1
PLUG,SPARK(BR9ES)
€ 2.50
6-2
0948200233111
ref: 6-2
SPARK PLUG (ND, W27ESR)
0948200233111
€ 10.50
7-1
1121003D030F0
ref: 7-1
~E.NO.115401
CYLINDER
€ 564.50
7-2
1121003D040F0
ref: 7-2
E.NO.115402~
CYLINDER
€ 564.50
7-3
1121003D100F0
ref: 7-3
MODEL K E18
CYLINDER
€ 447.50
8
1124103D10
ref: 8
MODEL K E18
GASKET,CYLINDER (NAS)
1124103D10
€ 37.00
9
0910808090
ref: 9
BOLT,STUD L:25
€ 1.50
10
0910808199
ref: 10
BOLT,STUD
0910808199
€ 3.00
11
0421111169
ref: 11
PIN
0421111169
€ 2.00
12-1
0831616088
ref: 12-1
MODEL K/L/M/M/P
NUT
0831616088
€ 2.50
12-2
0831610083
ref: 12-2
MODEL R
NUT
0831610083
€ 3.00
13-1
1124803D01
ref: 13-1
~E.NO.115837
COVER, CYLINDER
€ 22.50
13-2
1124812C01
ref: 13-2
E.NO.115838~
COVER,CYLINDER NO.2
1124812C01
€ 22.50
14
1123801B30H17
ref: 14
GASKET,CYL COVER NO.2 (NAS)
1123801B30H17
€ 6.00
15-1
0110705167
ref: 15-1
MODEL K/L/M/N/P
BOLT
€ 1.50
15-2
0150005163
ref: 15-2
MODEL R
BOLT
0150005163
€ 1.50
16-1
0151708407
ref: 16-1
MODEL K/L/M/N/P
BOLT 8X40
€ 3.50
16-2
0155008403
ref: 16-2
MODEL R
BOLT
0155008403
€ 3.50
17
0831931087
ref: 17
NUT
0831931087
€ 2.50
18
1766136A00
ref: 18
COVER,THERMOSTAT
1766136A00
€ 38.50
19-1
1767001A00
ref: 19-1
MODEL K/LMODEL M/N/P
THERMOSTAT,WATER 65 DEG
1767001A00
€ 35.00
19-2
1767008D00
ref: 19-2
MODEL M/N/P/R
THERMOSTAT COMP,WATER
1767008D00
€ 38.00
20-1
0211206207
ref: 20-1
MODEL K/L/M/N/P
SCREW
0211206207
€ 2.00
20-2
0211206203
ref: 20-2
MODEL R
SCREW, 6X20
0211206203
€ 2.00
21-1
1140103840
ref: 21-1
GASKET SET
€ 54.50
21-2
1140103850
ref: 21-2
E4
GASKET SET
€ 78.50
