HEADLAMP (E24)

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

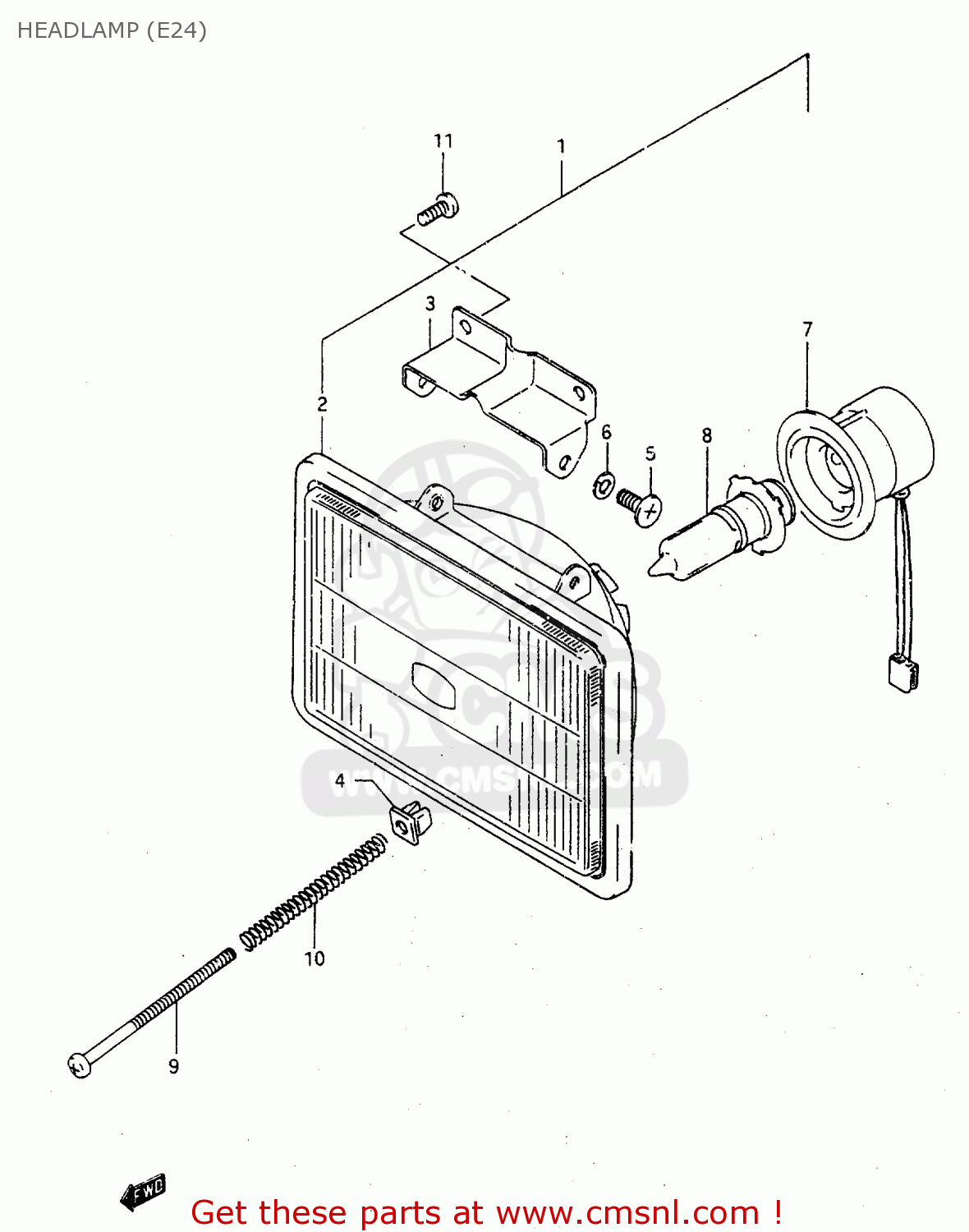

Headlamp (e24) diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3510003D00
ref: 1-1
MODEL K

HEADLAMP ASSY

€ 160.50

1-2

3510003D01
ref: 1-2
MODEL L

HEADLAMP ASSY

€ 160.50

3512103D00
ref: 2

UNIT, LAMP

€ 43.00

3523005D00
ref: 3

BRACKET,LAMP

€ 9.00

3515205C00
ref: 4

NUT,HEADLAMP ADJUSTER

€ 2.50

3513616700
ref: 5

SCREW

€ 3.00

0832121057
ref: 6

LOCK WASHER

€ 2.00

3517103D00
ref: 7

SOCKET

€ 33.00

0947112105
ref: 8

BULB(12V35/36.5W)

€ 75.50

3515105D00
ref: 9

SCREW,HEADLAMP ADJUST

€ 3.00

3515430B00
ref: 10

SPRING,HEAD LAMP ADJUSTER

€ 1.50

0351104106
ref: 11

SCREW

€ 1.50
