Buy Suzuki TS Parts Online


SPEEDOMETER

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

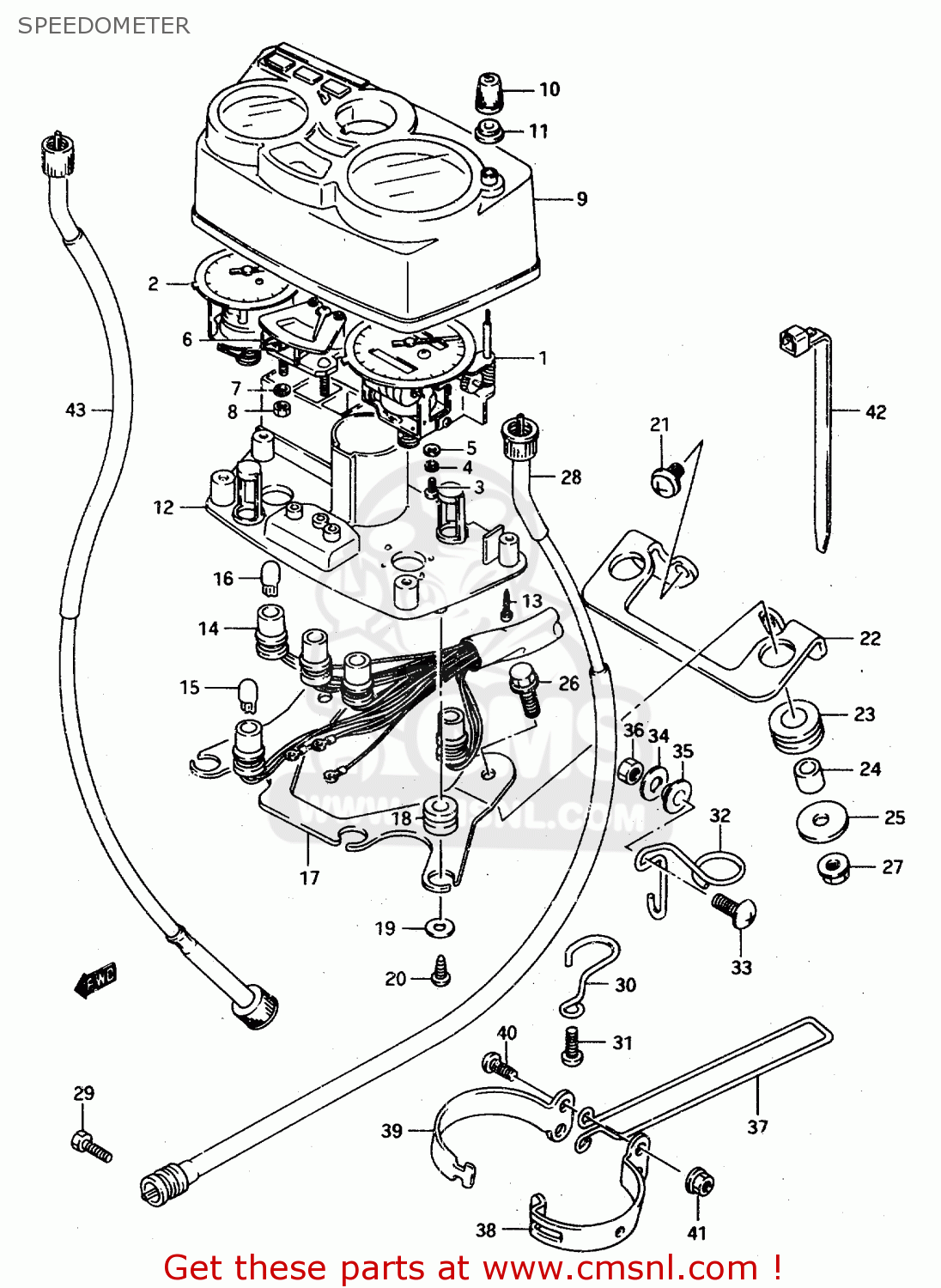

Speedometer diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

SPEEDOMETER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
SPEEDOMETER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
SPEEDOMETER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3412003D10
ref: 1-1
SPEEDOMETER
€ 166.50
1-2
3412003D30
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 0.00
2
3422003D10
ref: 2
TACHOMETER
€ 79.50
3
0211203106
ref: 3
SCREW
€ 1.50
4
0832121036
ref: 4
LOCK WASHER
0832121036
€ 1.50
5
0832221036
ref: 5
WASHER 3.3X8X0
€ 1.50
6
3442001A01
ref: 6
GAUGE,WATER TEMPERATURE
3442001A01
€ 79.00
7
0832121046
ref: 7
LOCK WASHER
0832121046
€ 2.00
8
0831022046
ref: 8
NUT
€ 2.00
9-1
3415001A00
ref: 9-1
HOOD, METER
3415001A00
€ 81.50
9-2
3415003D20
ref: 9-2
E15,E17
HOOD, METER
€ 77.00
10
3412449910
ref: 10
KNOB,TRIP METER
3412449910
€ 10.00
11
3499649910
ref: 11
SEAL,TRIP KNOB
3499649910
€ 4.00
12
3411101A00
ref: 12
CASE,METER
3411101A00
€ 58.00
13
3645601A00
ref: 13
SCREW
3645601A00
€ 2.00
14
3417003D10
ref: 14
SOCKET,METER
3417003D10
€ 43.50
15
0947112082
ref: 15
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
16
0947112077
ref: 16
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
17
3495001A00
ref: 17
BRACKET,METER
3495001A00
€ 31.00
18
3495528010
ref: 18
CUSHION
3495528010
€ 4.00
19
3418103D10
ref: 19
WASHER
€ 2.00
20
0311204125
ref: 20
SCREW
0311204125
€ 1.50
21-1
0211216125
ref: 21-1
MODEL K/L/M/N/P
SCREW
€ 2.00
21-2
0211216123
ref: 21-2
MODEL R
SCREW
0211216123
€ 2.00
22
3416203D01
ref: 22
BRACKET, SPEEDOMETER
3416203D01
€ 7.50
23
0932011008
ref: 23
CUSHION
0932011008
€ 3.00
24
0918006120
ref: 24
SPACER(6.5X11.5X12)
0918006120
€ 2.50
25
0916006072
ref: 25
WASHER (6.5X24X1.6)
0916006072
€ 2.00
26-1
0151706254
ref: 26-1
MODEL K/L/M/N/P
BOLT
€ 2.50
26-2
0155006253
ref: 26-2
MODEL R
BOLT
0155006253
€ 2.50
27-1
0831616064
ref: 27-1
MODEL K/L/M/N/P
NUT 6MM
0831616064
€ 2.50
27-2
0831610063
ref: 27-2
MODEL R
NUT
0831610063
€ 2.50
28-1
3491003D11
ref: 28-1
34910-03010
CABLE ASSY,SPEEDOMETER
3491003D11
€ 72.50
28-2
3491003D30
ref: 28-2
MODEL K E34
CABLE ASSY, SPEEDOMETER
€ 27.50
28-3
3491003D31
ref: 28-3
MODEL L/M/N E34
CABLE ASSY,SPEEDOMETER
€ 27.50
29-1
0110705167
ref: 29-1
MODEL K
BOLT
€ 1.50
29-2
0211205168
ref: 29-2
MODEL L/M/N/P
SCREW
0211205168
€ 2.50
30
3493803D10
ref: 30
GUIDE,SPEEDOMETER CABLE
€ 0.00
31-1
0211205105
ref: 31-1
MODEL K/L/M/N/P
SCREW
€ 2.00
31-2
0211205103
ref: 31-2
MODEL R
SCREW
0211205103
€ 2.00
32-1
3493803D20
ref: 32-1
MODEL K/L/M/N
GUIDE, CABLE NO.2
€ 7.50
32-2
3493803D21
ref: 32-2
MODEL P/R
GUIDE, CABLE NO.2
€ 7.50
33-1
0214206164
ref: 33-1
MODEL K/L/M/N
SCREW
0214206164
€ 2.50
33-2
0214206167
ref: 33-2
MODEL P/R
SCREW
0214206167
€ 2.00
34
0916006057
ref: 34
WASHER
€ 2.00
35
0916906053
ref: 35
WASHER
0916906053
€ 2.00
36
0831012066
ref: 36
NUT
0831012066
€ 2.00
37-1
3493803D30
ref: 37-1
MODEL K/L/M/N
GUIDE, CABLE NO.3
€ 0.00
37-2
3493803D31
ref: 37-2
MODEL P/R
GUIDE,SPEEDOMETER CABLE
€ 0.00
38
3492603D00
ref: 38
BRACKET,CABLE GUIDE
€ 11.50
39
3492703D01
ref: 39
BRACKET,CABLE GUIDE
€ 10.00
40-1
0214205164
ref: 40-1
MODEL K/L/M/N
SCREW
0214205164
€ 2.50
40-2
0214205167
ref: 40-2
MODEL P/R
SCREW
0214205167
€ 1.50
41-1
0831616055
ref: 41-1
MODEL K/L/M/N
NUT ,5MM
€ 2.00
41-2
0831616058
ref: 41-2
MODEL P/R
NUT
€ 2.50
42
0940714403
ref: 42
CLAMP(L:125)
0940714403
€ 2.50
43-1
3494003D00
ref: 43-1
MODEL K
CABLE ASSY, TACHOMETER
3494003D00
€ 49.00
43-2
3494003D01
ref: 43-2
MODEL L/M/N/P/R
CABLE ASSY, TACHOMETER
3494003D01
€ 49.00
