REAR CUSHION LEVER

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

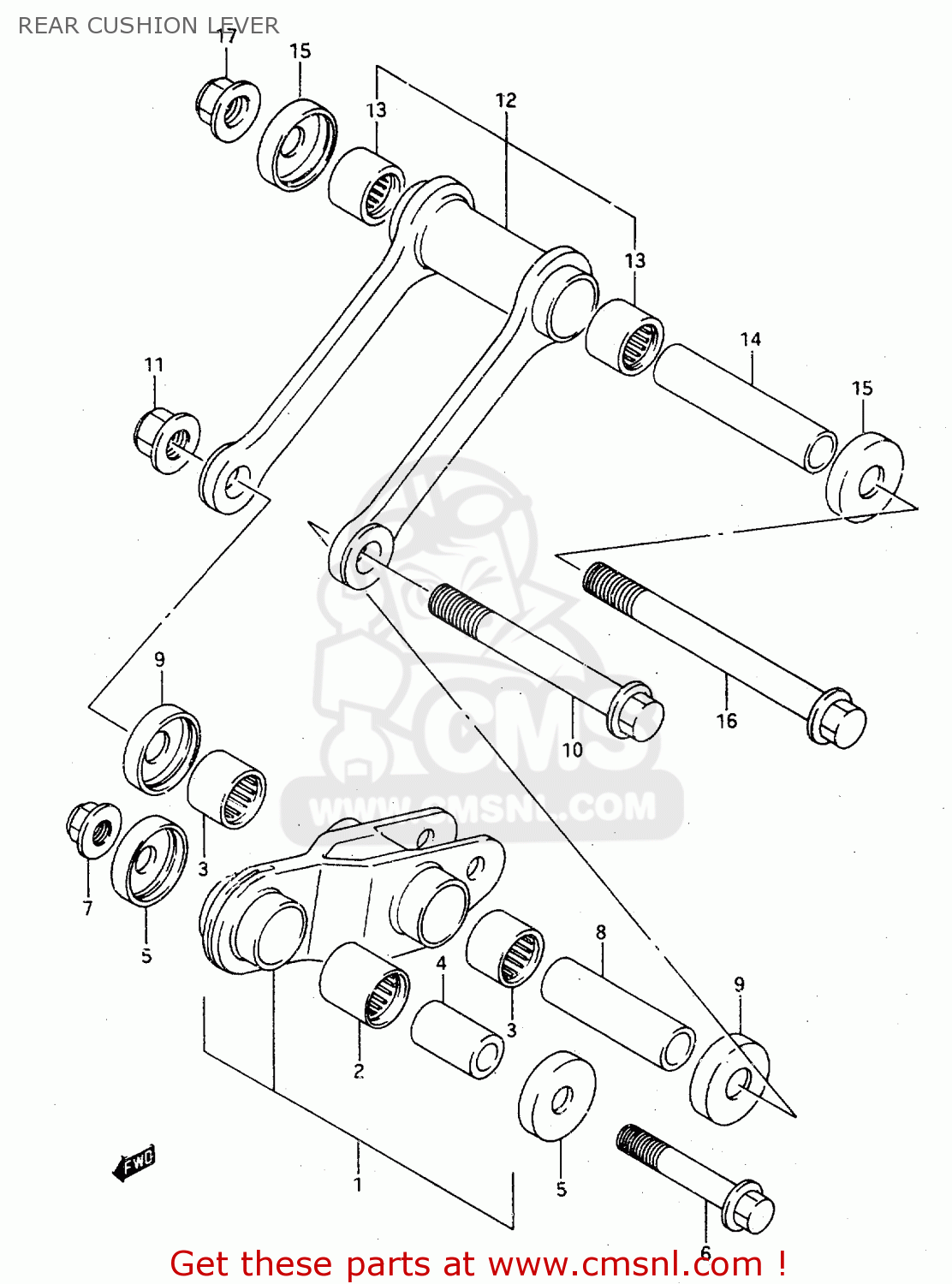

Rear cushion lever diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

prices are in EUR

ref

part #

description

quantity

6260003830
ref: 1

LEVER SET, REAR CUSHION

€ 0.00

0926320074
ref: 2

BEARING(20X27X32)

€ 25.00

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4-1

6231700B20
ref: 4-1
-62317-27C10

SPACER,REAR CUSHION LEVER

€ 9.00

4-2

6231727C10
ref: 4-2

SPACER,RR CUSHION LEVER FR

€ 9.00

6262444B00
ref: 5

SEAL,RR CUSHION LEVER FR DUST

€ 8.50

6265800B20
ref: 6

BOLT,RR CUSHION LEVER FR

€ 8.50

0831931128
ref: 7

NUT 12MM

€ 4.00

0918014017
ref: 8

SPACER (14X20X70)

€ 18.50

6262444B10
ref: 9

SEAL,RR CUSHION LEVER CTR DUST

€ 19.50

0910314013
ref: 10

BOLT(14X106)

€ 0.00

0831931148
ref: 11

NUT

€ 9.00

6260003840
ref: 12

ROD SET,RR CUSHION LEVER

€ 118.00

0926320071
ref: 13

BEARING(20X27X23.5)

€ 21.50

0918014018
ref: 14

SPACER(14X20X102)

€ 20.00

6262444B10
ref: 15

SEAL,RR CUSHION LEVER CTR DUST

€ 19.50

0910314014
ref: 16

BOLT(14X144)

€ 0.00

0831931148
ref: 17

NUT

€ 9.00
