REAR MASTER CYLINDER (MODEL L/M/N/P/R)

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

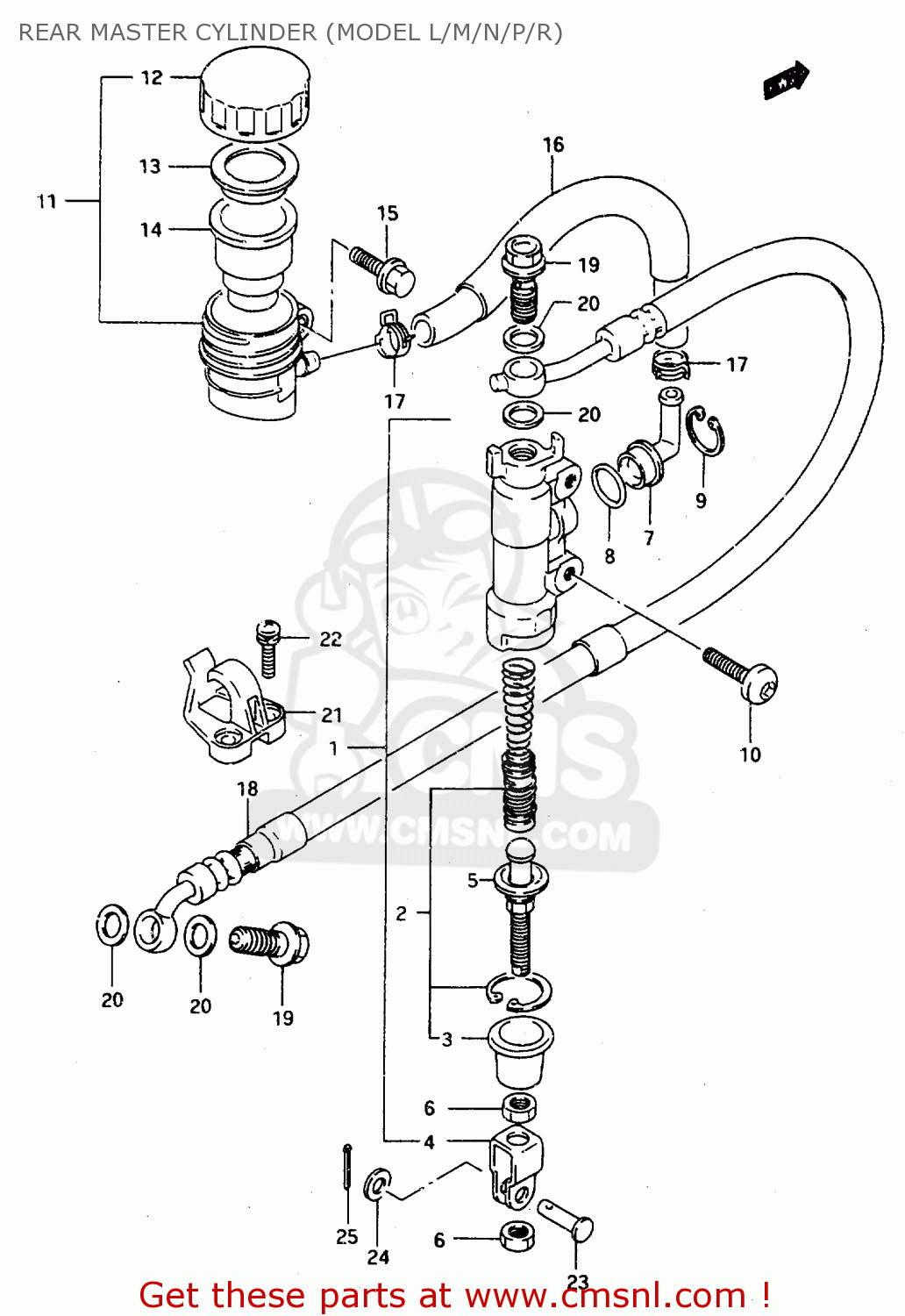

Rear master cylinder (model l/m/n/p/r) diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

REAR MASTER CYLINDER (MODEL L/M/N/P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
REAR MASTER CYLINDER (MODEL L/M/N/P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
REAR MASTER CYLINDER (MODEL L/M/N/P/R) TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
6960003D00
ref: 1
CYLINDER ASSY, REAR MASTER
€ 167.00
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969227A30
ref: 4
YOKE
6969227A30
€ 12.50
5
6967000B21
ref: 5
ROD,PUSH
6967000B21
€ 24.00
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
6967200B20
€ 5.00
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
6967400B20
€ 3.00
10-1
0910606064
ref: 10-1
MODEL L/M/N
BOLT(6X18)
0910606064
€ 6.00
10-2
0913906024
ref: 10-2
MODEL P/R 09139-0606
SCREW
0913906024
€ 3.00
10-3
0913906067
ref: 10-3
SCREW(6X16)
0913906067
€ 3.00
11
6974003D00
ref: 11
TANK ASSY,RR BRAKE RESERVOIR
6974003D00
€ 40.50
12
6966903D00
ref: 12
CAP
6966903D00
€ 11.00
13
6966800B20
ref: 13
PLATE
6966800B20
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
6966700B20
€ 9.50
15-1
0151706128
ref: 15-1
MODEL L/M/N/P
BOLT
€ 2.50
15-2
0155006123
ref: 15-2
MODEL R
BOLT
0155006123
€ 2.50
16-1
6973103D00
ref: 16-1
MODEL L/M
HOSE, RESERVOIR TANK
€ 16.00
16-2
6973103D01
ref: 16-2
MODEL N/P/R
HOSE,RESERVOIR TANK
€ 16.00
17
6973500B20
ref: 17
CLAMP,RESERVOIR HOSE
6973500B20
€ 3.00
18
6948003D10
ref: 18
HOSE,RR BRAKE
6948003D10
€ 98.00
19-1
0936010017
ref: 19-1
MODEL L/M/N/P
BOLT UNION
0936010017
€ 6.50
19-2
0936010039
ref: 19-2
MODEL R
BOLT UNION
€ 6.50
19-3
0936010040
ref: 19-3
MODEL R
BOLT UNION
0936010040
€ 5.00
20
0916110009
ref: 20
WASHER(10X15X1.5)
0916110009
€ 2.00
21
6119603D00
ref: 21
GUIDE,RR BRAKE HOSE
6119603D00
€ 3.00
22-1
0211235168
ref: 22-1
MODEL L/M/N/P
SCREW
€ 2.50
22-2
0211235163
ref: 22-2
MODEL R
SCREW
€ 2.50
23
0920006037
ref: 23
PIN
0920006037
€ 5.00
24-1
0832221067
ref: 24-1
MODEL L/M/N/P
WASHER
0832221067
€ 2.00
24-2
0832201063
ref: 24-2
MODEL R
WASHER
0832201063
€ 2.00
25
0411120158
ref: 25
PIN
0411120158
€ 1.50
