EXHAUST VALVE

TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

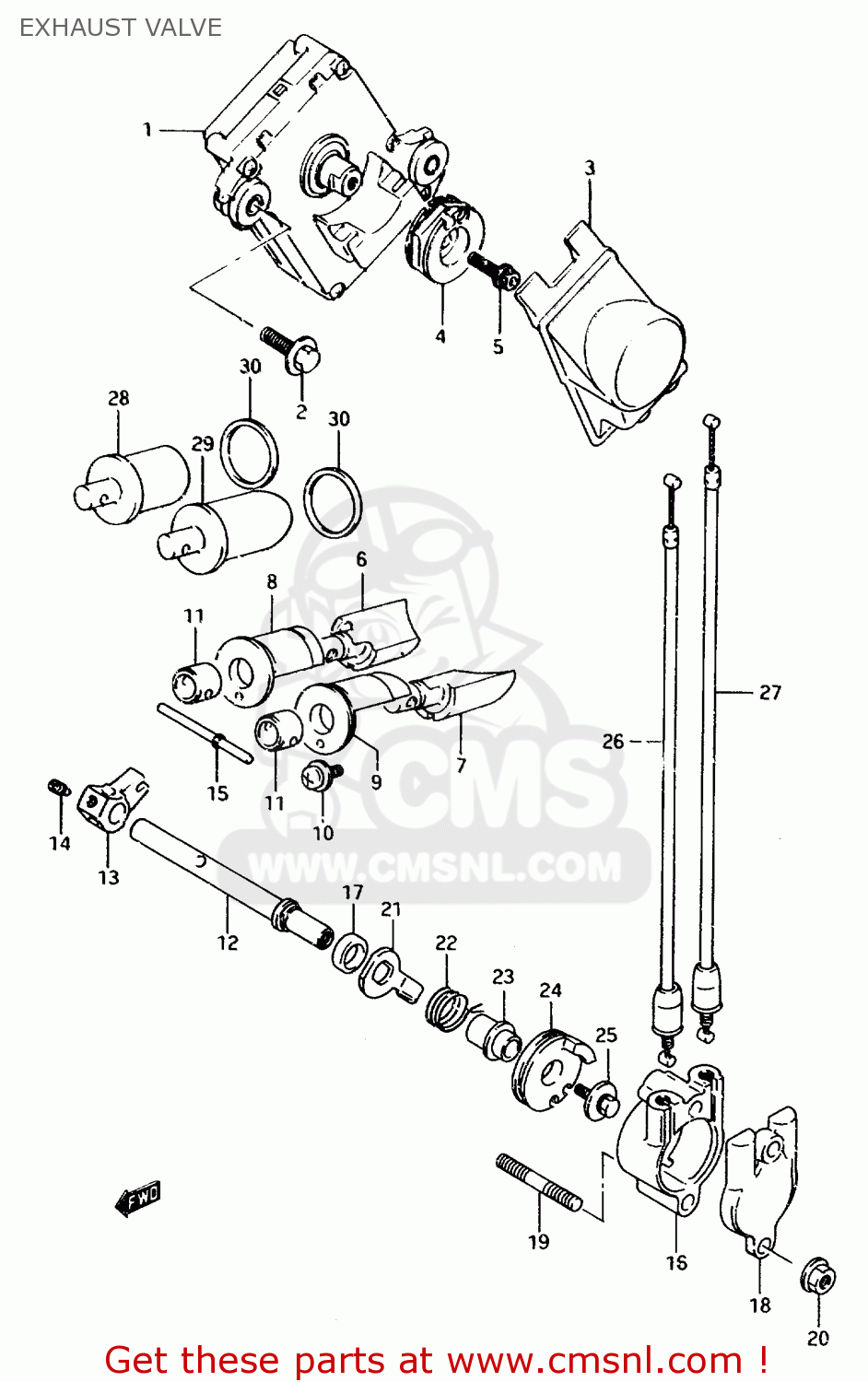

Exhaust valve diagram TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)

EXHAUST VALVE TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
EXHAUST VALVE TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
EXHAUST VALVE TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
3397003D00
ref: 1
ACTUATOR ASSY,EXHAUST VALVE
3397003D00
€ 513.50
2
0911606025
ref: 2
BOLT(6X25)
0911606025
€ 2.50
3
3397303D00
ref: 3
COVER,ACTUATOR
€ 9.50
4
1126920A04
ref: 4
PULLEY,CONTROLLER
1126920A04
€ 32.00
5-1
0712005208
ref: 5-1
MODEL K/L/M/N/P
BOLT
€ 2.00
5-2
0712005203
ref: 5-2
MODEL R
BOLT
0712005203
€ 2.00
6
1125403D01
ref: 6
EXCEPT MODEL K E18
VALVE,EXHAUST,R
1125403D01
€ 127.00
7
1125503D01
ref: 7
EXCEPT MODEL K E18
VALVE,EXHAUST,L
1125503D01
€ 115.00
8
1126103D00
ref: 8
EXCEPT MODEL K E18
GUIDE, EXHAUST VALVE RH
1126103D00
€ 172.50
9
1126203D00
ref: 9
EXCEPT MODEL K E18
GUIDE,EXHAUST VALVE,L
1126203D00
€ 117.50
10-1
0211215128
ref: 10-1
MODEL K/L/M/N/P
SCREW
€ 1.50
10-2
0214205123
ref: 10-2
MODEL R
SCREW 5X12
0214205123
€ 1.50
11
1126312C01
ref: 11
11263-12C00
SPACER,EXHAUST VALVE
1126312C01
€ 29.50
12
1125803D00
ref: 12
SHAFT, EXHAUST VALVE
€ 32.50
13
1126400B23
ref: 13
ARM,EXHAUST VALVE SHAFT
1126400B23
€ 17.00
14
0913406013
ref: 14
SCREW(6X10)
0913406013
€ 4.50
15
1125301B31
ref: 15
PIN,EXHAUST VALVE 48.5MM
1125301B31
€ 20.50
16
1126503D01
ref: 16
HOLDER,EXHAUST VALVE
1126503D01
€ 30.50
17
0928208004
ref: 17
SEAL,OIL(8X16X5)
0928208004
€ 7.50
18
1125903D01
ref: 18
COVER,HOLDER
1125903D01
€ 19.00
19
0142106358
ref: 19
STUD BOLT
0142106358
€ 2.00
20-1
0915906017
ref: 20-1
MODEL K/L/M/N/P
NUT
0915906017
€ 2.50
20-2
0831610063
ref: 20-2
MODEL R
NUT
0831610063
€ 2.50
21
1126703D00
ref: 21
LEVER,EXHAUST VALVE
1126703D00
€ 6.00
22
1128503D00
ref: 22
EXCEPT MODEL K E18
SPRING,EXHAUST VALVE LEVER
1128503D00
€ 6.00
23
1126803D00
ref: 23
SPACER,EXHAUST VALVE PULLEY
1126803D00
€ 9.00
24
1126603D00
ref: 24
PULLEY, EXHAUST VALVE
€ 18.00
25
0911805005
ref: 25
BOLT(5X12)
0911805005
€ 4.00
26
1127603D00
ref: 26
CABLE ASSY,EXHAUST VALVE NO.1
1127603D00
€ 15.50
27
1127703D00
ref: 27
CABLE ASSY,EXHAUST VALVE NO.2
1127703D00
€ 14.50
28
1129703D00
ref: 28
MODEL K E18
PLUG, EXHAUST RH
1129703D00
€ 217.50
29
1129803D00
ref: 29
MODEL K E18
PLUG, EXHAUST LH
€ 228.50
30-1
0918124002
ref: 30-1
MODEL K E18
SHIM(24X27X0.8)
0918124002
€ 3.50
30-2
0918124003
ref: 30-2
MODEL K E18
SHIM,T:0.9
0918124003
€ 7.50
30-3
0918124004
ref: 30-3
MODEL K E18
SHIM(24X27X1)
0918124004
€ 5.50
