AIR CLEANER

TS50XK 1984 (E) (E02 E16 E18 E21)

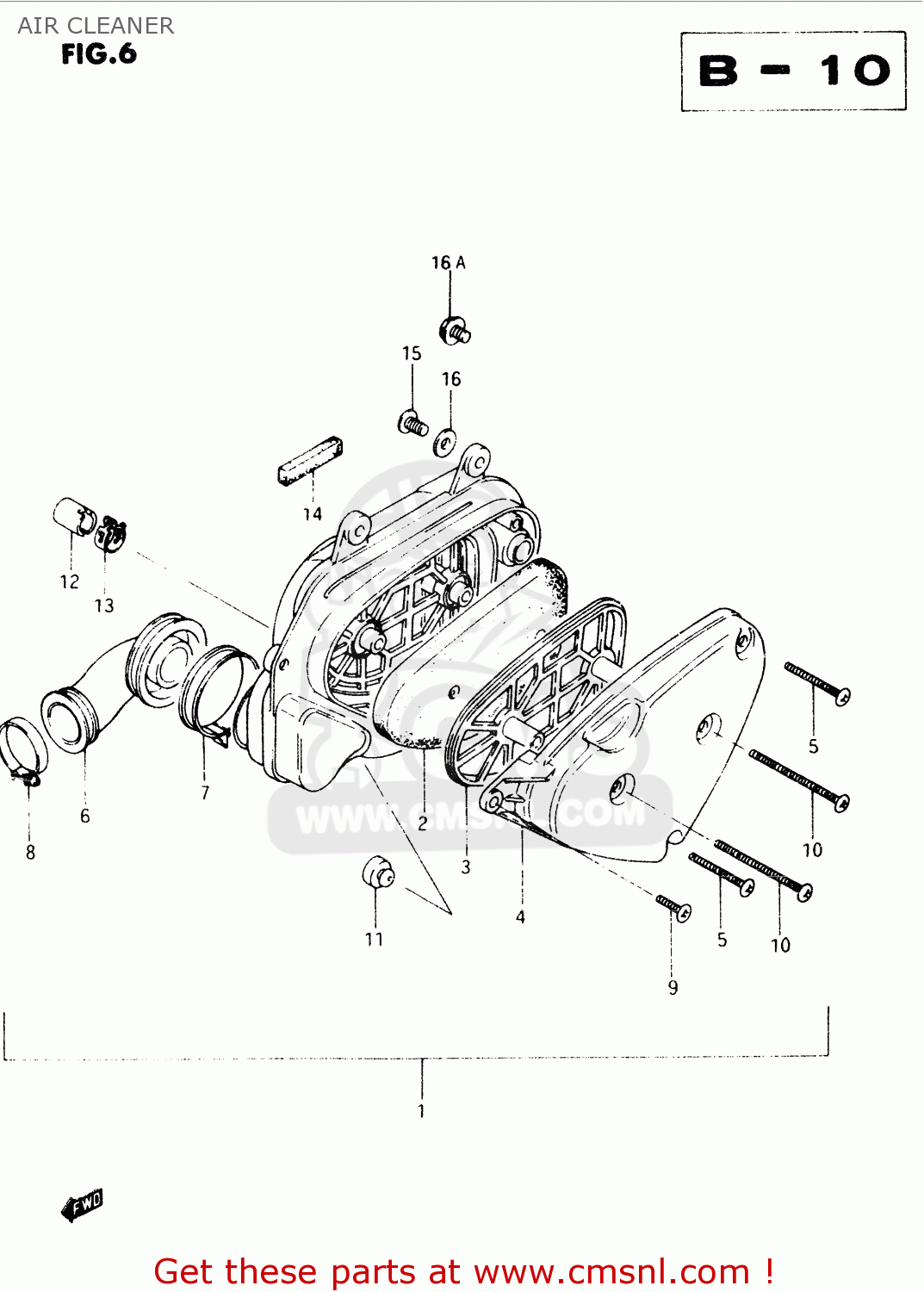

Air cleaner diagram TS50XK 1984 (E) (E02 E16 E18 E21)

AIR CLEANER TS50XK 1984 (E) (E02 E16 E18 E21)
AIR CLEANER TS50XK 1984 (E) (E02 E16 E18 E21)
AIR CLEANER TS50XK 1984 (E) (E02 E16 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
1370013621
ref: 1-1
E2,E16,E17,E18,E25
CLEANER ASSY
€ 93.00
1-2
1370013611
ref: 1-2
E1,E21
CLEANER ASSY, AIR
€ 93.00
1-3
1370013630
ref: 1-3
E22
CLEANER ASSY,AIR
€ 93.00
2-1
1378104700
ref: 2-1
E1,E2,E16,E17,E18,E2
FILTER
1378104700
€ 8.00
2-2
1378113630
ref: 2-2
E22
FILTER,AIR
1378113630
€ 8.00
3
1379204701
ref: 3
HOLDER,AIR FILTER
1379204701
€ 14.00
4
1374004701
ref: 4
CAP,AIR CLEANE
1374004701
€ 17.00
5
0214205405
ref: 5
SCREW
€ 2.00
6
1388113611
ref: 6
TUBE,AIR CLEANER OUTLET
1388113611
€ 16.00
7
0940256208
ref: 7
CLAMP
0940256208
€ 3.50
8
0940234207
ref: 8
CLAMP
€ 6.50
9
0214205164
ref: 9
SCREW
0214205164
€ 2.50
10
0214205705
ref: 10
SCREW
0214205705
€ 2.00
11
1372813605
ref: 11
STOPPER
€ 0.00
12
1387913701
ref: 12
TUBE,DRAIN
1387913701
€ 3.00
13
1382443400
ref: 13
CLIP
€ 2.00
14
1397604700
ref: 14
CUSHION
€ 0.00
15
0214206167
ref: 15
MODEL E/G/H/J/M
SCREW
0214206167
€ 2.00
16
0916006006
ref: 16
MODEL E/G/H/J/M
WASHER
0916006006
€ 2.00
16A
0913606017
ref: 16A
MODEL R
SCREW(6X16)
0913606017
€ 2.50
