HEADLAMP HOUSING (MODEL R)

TS50XK 1984 (E) (E02 E16 E18 E21)

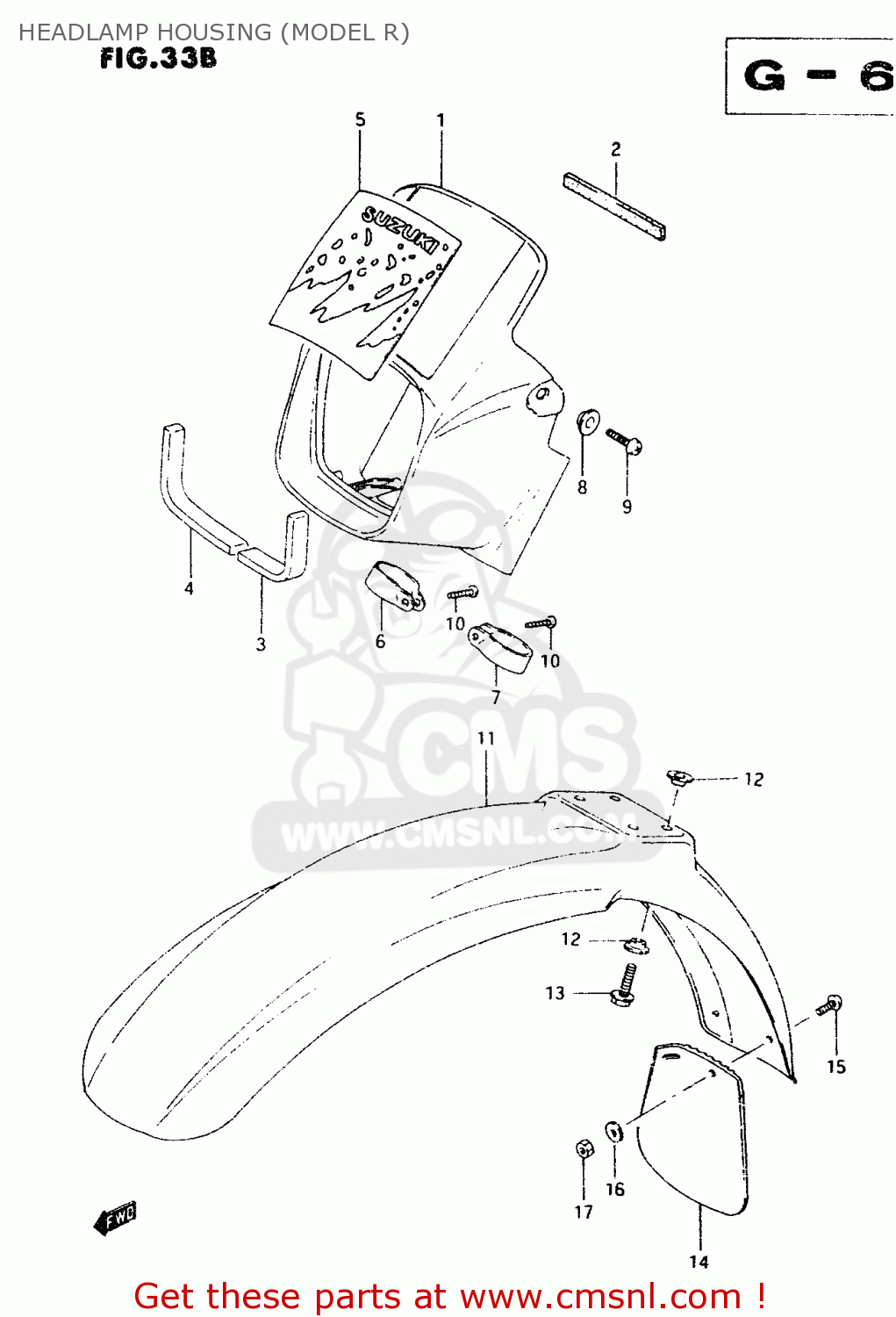

Headlamp housing (model r) diagram TS50XK 1984 (E) (E02 E16 E18 E21)

HEADLAMP HOUSING (MODEL R) TS50XK 1984 (E) (E02 E16 E18 E21)
HEADLAMP HOUSING (MODEL R) TS50XK 1984 (E) (E02 E16 E18 E21)
HEADLAMP HOUSING (MODEL R) TS50XK 1984 (E) (E02 E16 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
51810137000NF
ref: 1-1
FOR 0NF
HOUSING, HEADLAMP (BLUE)
51810137000NF
€ 45.00
1-2
518101370021C
ref: 1-2
FOR 019
HOUSING,HEADLAMP
518101370021C
€ 43.50
1-3
51810137100NF
ref: 1-3
E17 FOR 0NF
HOUSING, HEADLAMP (BLUE)
€ 0.00
1-4
518101371021C
ref: 1-4
E17 FOR 019
HOUSING, HEADLAMP (BLACK)
€ 0.00
2
5182713700
ref: 2
CUSHION,HEADLAMP HOUSING
€ 6.00
3
5182813700
ref: 3
CUSHION,HEADL.
€ 6.00
4
5182913700
ref: 4
CUSHION,HEAD L
€ 6.00
5-1
6872513610B7L
ref: 5-1
FOR 019
TAPE,HEADLAMP HOUSING
6872513610B7L
€ 9.50
5-2
6872513610B7M
ref: 5-2
FOR 0NF
TAPE, HEADLAMP COVER
€ 9.50
6
5197113700
ref: 6
CLAMP,HEADLAMP HOUSING,R
5197113700
€ 9.50
7
5197213700
ref: 7
CLAMP, HEADLAMP HOUSING, LH
5197213700
€ 9.50
8
0916906011
ref: 8
WASHER
0916906011
€ 6.50
9
0211236167
ref: 9
SCREW
0211236167
€ 2.00
10
0321105163
ref: 10
SCREW
0321105163
€ 1.50
11-1
53111137000NF
ref: 11-1
FOR 0NF
FENDER, FRONT (BLUE)
€ 76.00
11-2
531111370021C
ref: 11-2
FOR 019
FENDER, FRONT (BLACK)
€ 76.00
11-3
53111136200NF
ref: 11-3
E22 FOR 0NF
FENDER,FR
€ 76.00
11-4
531111362021C
ref: 11-4
E22 FOR 019
FENDER,FR
531111362021C
€ 76.00
11-5
5311134B000NF
ref: 11-5
E25 FOR 0NF
FENDER,FRONT
€ 81.00
11-6
5311134B0021C
ref: 11-6
E25 FOR 019
FENDER,FR
5311134B0021C
€ 67.00
11-7
53111136100NF
ref: 11-7
E18 FOR 0NF
FENDER, FRONT (BLUE)
€ 0.00
11-8
531111361021C
ref: 11-8
E18 FOR 019
FENDER, FRONT (BLACK)
€ 56.50
12
0916906053
ref: 12
WASHER
0916906053
€ 2.00
13-1
0155006163
ref: 13-1
BOLT
0155006163
€ 2.50
13-2
0157006163
ref: 13-2
E18
BOLT
0157006163
€ 2.50
14
5331140002
ref: 14
E18
GUARD,MUD
5331140002
€ 8.00
15
0214205123
ref: 15
E18
SCREW 5X12
0214205123
€ 1.50
16
0832201053
ref: 16
E18
WASHER
0832201053
€ 2.50
17
0831000053
ref: 17
E18
NUT
€ 2.50
