STAND - FOOTREST (MODEL E/G)

TS50XK 1984 (E) (E02 E16 E18 E21)

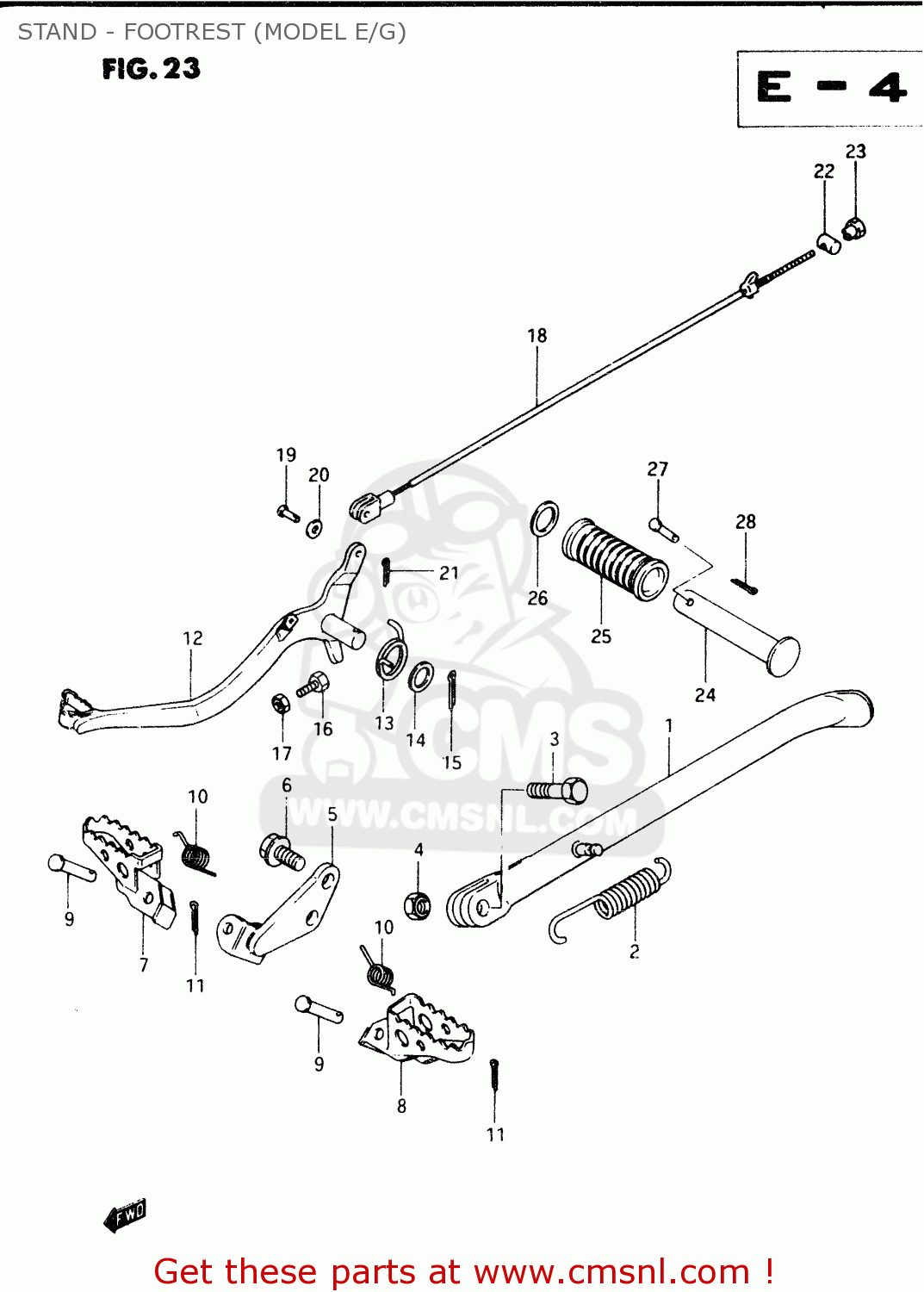

Stand - footrest (model e/g) diagram TS50XK 1984 (E) (E02 E16 E18 E21)

STAND - FOOTREST (MODEL E/G) TS50XK 1984 (E) (E02 E16 E18 E21)
STAND - FOOTREST (MODEL E/G) TS50XK 1984 (E) (E02 E16 E18 E21)
STAND - FOOTREST (MODEL E/G) TS50XK 1984 (E) (E02 E16 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
4231013621019
ref: 1-1
E21,E25,MODEL E E2 F
STAND,SIDE
4231013621019
€ 29.00
1-2
423101362119F
ref: 1-2
E21,E25,MODEL E E2 F
STAND,PROP
€ 29.00
1-3
4231013631019
ref: 1-3
E16,E18 FOR 14C,08Y
STAND,SIDE
€ 41.50
1-4
423101363119F
ref: 1-4
E16,E18 FOR 21C,163
STAND, PROP (BLUE)
€ 41.50
2-1
0944318011
ref: 2-1
E21,E25,MODEL E E2
SPRING
0944318011
€ 15.50
2-2
0944315007
ref: 2-2
E16,E18,MODEL G E2
SPRING
€ 6.00
3-1
0910010067
ref: 3-1
E21,E25,MODEL E E2
BOLT(10X30)
0910010067
€ 3.50
3-2
0911110019
ref: 3-2
E16,E18,MODEL G E2
BOLT L:30
0911110019
€ 4.50
4
0831022107
ref: 4
NUT
0831022107
€ 2.50
5-1
4351013602019
ref: 5-1
FOR 14C,08Y
HOLDER,FR FOOTREST,R(BLACK)
4351013602019
€ 24.00
5-2
435101360219F
ref: 5-2
FOR 21C,163
HOLDER, FOOTREST RH (BLUE)
435101360219F
€ 23.50
6
0151710255
ref: 6
BOLT
€ 3.00
7-1
4355013600019
ref: 7-1
FOR 14C,08Y
FOOTREST, FRONT RH (BLACK)
4355013600019
€ 21.00
7-2
435501360019F
ref: 7-2
FOR 21C,163
FOOTREST, FRONT RH (BLUE)
435501360019F
€ 21.00
8-1
4356013600019
ref: 8-1
FOR 14C,08Y
FOOTREST,FR.L.
€ 17.00
8-2
435601360019F
ref: 8-2
FOR 21C,163
FOOTREST, FRONT LH (BLUE)
435601360019F
€ 14.50
9
0920008002
ref: 9
PIN
0920008002
€ 2.00
10
0944814012
ref: 10
SPRING
0944814012
€ 3.00
11
0411125208
ref: 11
PIN 25X20
0411125208
€ 2.00
12
4311013701
ref: 12
PEDAL,BRAKE
4311013701
€ 31.00
13
0944825012
ref: 13
SPRING
0944825012
€ 5.50
14
0916015002
ref: 14
WASHER(15.5X26X2.3)
0916015002
€ 2.00
15
0411130308
ref: 15
COTTER PIN
0411130308
€ 1.50
16
0110706205
ref: 16
BOLT
0110706205
€ 2.00
17
0831022065
ref: 17
NUT
€ 1.50
18-1
5851013650
ref: 18-1
~F.NO.101367
CABLE,RR BRAKE
5851013650
€ 16.00
18-2
5851013651
ref: 18-2
F.NO.101368~
CABLE,RR BRAKE
5851013651
€ 17.00
19
0920005001
ref: 19
PIN(L:17.5)
0920005001
€ 1.50
20
0832201067
ref: 20
WASHER
0832201067
€ 2.00
21
0411120208
ref: 21
PIN 20X20
0411120208
€ 1.50
22
0920911002
ref: 22
PIN(11X18)
0920911002
€ 2.00
23
0915006009
ref: 23
NUT (6MM)
0915006009
€ 3.50
24
4361003001
ref: 24
BAR,FOOTREST RUBBER
4361003001
€ 5.50
25
4361203001
ref: 25
RUBBER,PILLION FOOTREST
4361203001
€ 3.50
26
0916019006
ref: 26
WASHER (19.5X32X2)
0916019006
€ 2.00
27
0920006010
ref: 27
PIN
0920006010
€ 2.50
28
0411120208
ref: 28
PIN 20X20
0411120208
€ 1.50
