FRAME (MODEL E/G)

TS50XK 1984 (E) (E02 E16 E18 E21)

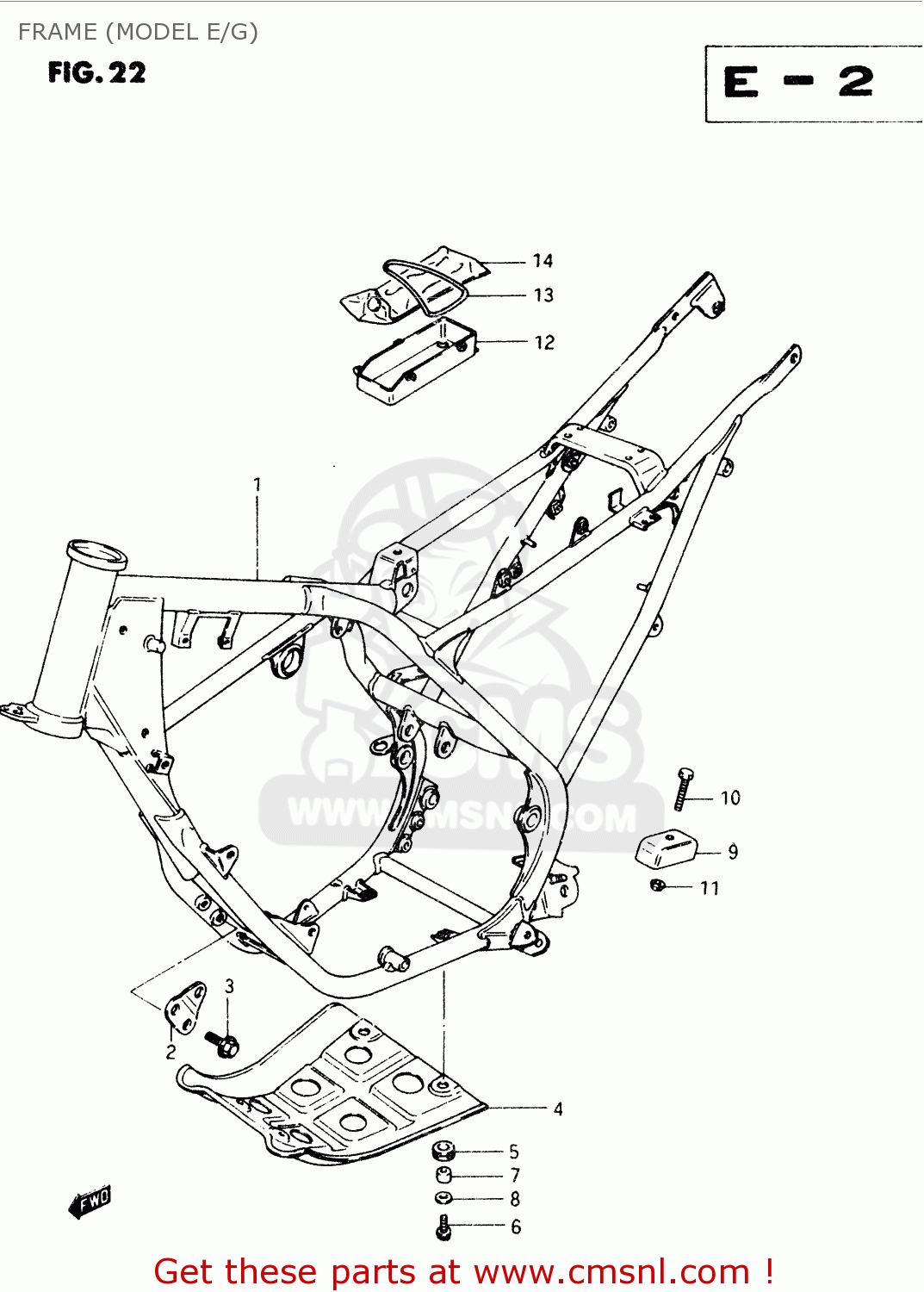

Frame (model e/g) diagram TS50XK 1984 (E) (E02 E16 E18 E21)

FRAME (MODEL E/G) TS50XK 1984 (E) (E02 E16 E18 E21)
FRAME (MODEL E/G) TS50XK 1984 (E) (E02 E16 E18 E21)
FRAME (MODEL E/G) TS50XK 1984 (E) (E02 E16 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
4110013614019
ref: 1-1
E21,MODEL E E2 FOR 1
FRAME (BLACK)
€ 531.00
1-2
411001361419F
ref: 1-2
E21,MODEL E E2 FOR 2
FRAME (BLUE)
€ 511.50
1-3
4110013624019
ref: 1-3
E16,E18,MODEL G E2 F
FRAME (BLACK)
€ 721.50
1-4
411001362419F
ref: 1-4
E16,E18,MODEL G E2 F
FRAME (BLUE)
€ 721.50
1-5
4110034B0019F
ref: 1-5
MODEL G E25
FRAME (BLUE)
€ 511.50
2-1
4199113600019
ref: 2-1
PLATE,ENG MTG
4199113600019
€ 3.50
2-2
4199113600126
ref: 2-2
PLATE, ENGINE MOUNT (PEARL)
€ 3.50
3
0151708165
ref: 3
BOLT, LOWER
0151708165
€ 3.00
4
4251113701
ref: 4
<-45211-13700
PROTECTOR, ENGINE
€ 28.50
5
0932008030
ref: 5
CUSHION
0932008030
€ 3.00
6
0151706164
ref: 6
BOLT
€ 2.50
7
0918006109
ref: 7
SPACER (6X9X5)
€ 2.00
8
0916006056
ref: 8
WASHER(6.5X18X1)
0916006056
€ 2.00
9
4391213700
ref: 9
GUIDE,CHAIN CONTROL
4391213700
€ 19.00
10
0155006203
ref: 10
BOLT
0155006203
€ 2.50
11
0831931067
ref: 11
NUT
0831931067
€ 2.50
12
4155113601
ref: 12
HOLDER, TOOL
4155113601
€ 8.50
13
0928070004
ref: 13
O RING(D:3.53,ID:69.44)
0928070004
€ 3.50
14
0980021026
ref: 14
<-09800-00283
TOOL ASSY
0980021026
€ 9.00
