KICK STARTER
TS50XK 1984 (E) (E02 E16 E18 E21)

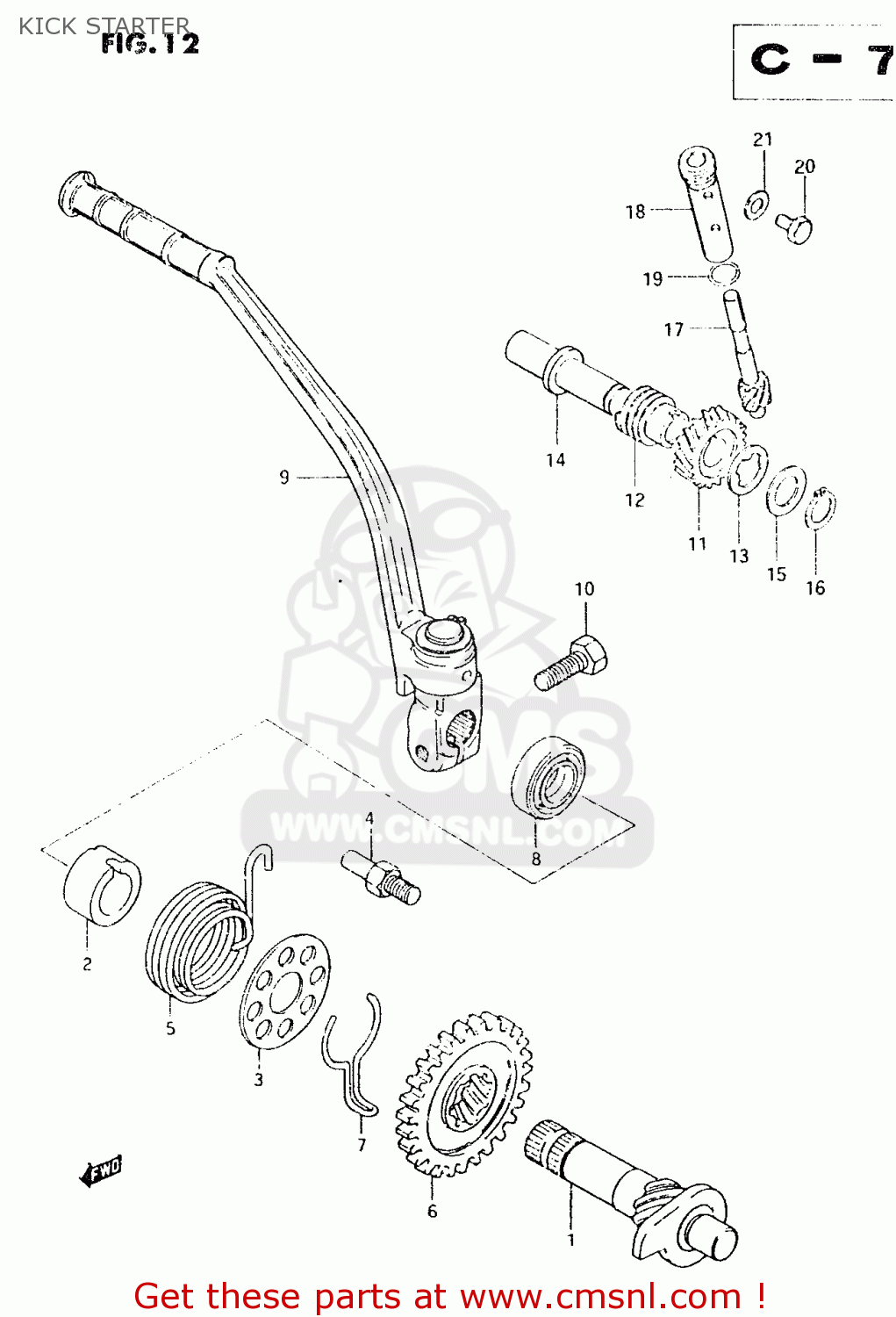

Kick starter diagram TS50XK 1984 (E) (E02 E16 E18 E21)
KICK STARTER TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
2621004700
ref: 1
SHAFT,KICK STARTER
€ 60.50
2
2622120400
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 2.50
3
2622220400
ref: 3
HOLDER,KICK STARTER SHAFT SPR
€ 4.00
4
2623720400
ref: 4
BOLT,KICK START SHAFT SPR HOOK
€ 5.00
5
0944840005
ref: 5
SPRING
€ 8.50
6
2624104700
ref: 6
GEAR, KICK STARTER DRV.
€ 39.50
7
2623404700
ref: 7
SPRING,KICK STARTER RETAINER
€ 3.00
8
0928514001
ref: 8
SEAL,OIL(14X24X6)
€ 9.00
9
2630013600
ref: 9
LEVER ASSY,KICK STARTER
€ 269.50
10-1
0110706205
ref: 10-1
MODEL E/G/H/J/M
BOLT
€ 2.00
10-2
0150006203
ref: 10-2
MODEL R
BOLT
€ 2.00
11
2642146101
ref: 11
GEAR,TACHOMETER DRIVE(NT:19)
€ 28.00
12
2642346100
ref: 12
GEAR,TACH DRIVE NO.2(NT:3)
€ 19.50
13
2642446110
ref: 13
RETAINER,TACH DR GEAR NO.1
€ 3.00
14
2642222701
ref: 14
SHAFT,TACHOMETER DRIVEN GEAR
€ 14.00
15
0821110201
ref: 15
WASHER,THRUST
€ 2.00
16
0833131106
ref: 16
CIRCLIP,10MM
€ 2.00
17
2643146100
ref: 17
GEAR,TACHOMETER DRIVEN(NT:12)
€ 16.50
18
2644146100
ref: 18
SLEEVE
€ 19.00
19
0928010001
ref: 19
O RING(D:1.3,ID:9.6)
€ 2.00
20
0913506013
ref: 20
BOLT
€ 2.50
21
0916806004
ref: 21
GASKET(6.2X11X1).2 (NAS)
€ 1.50
