TURN SIGNAL LAMP (E22)
TS50XK 1984 (E) (E02 E16 E18 E21)

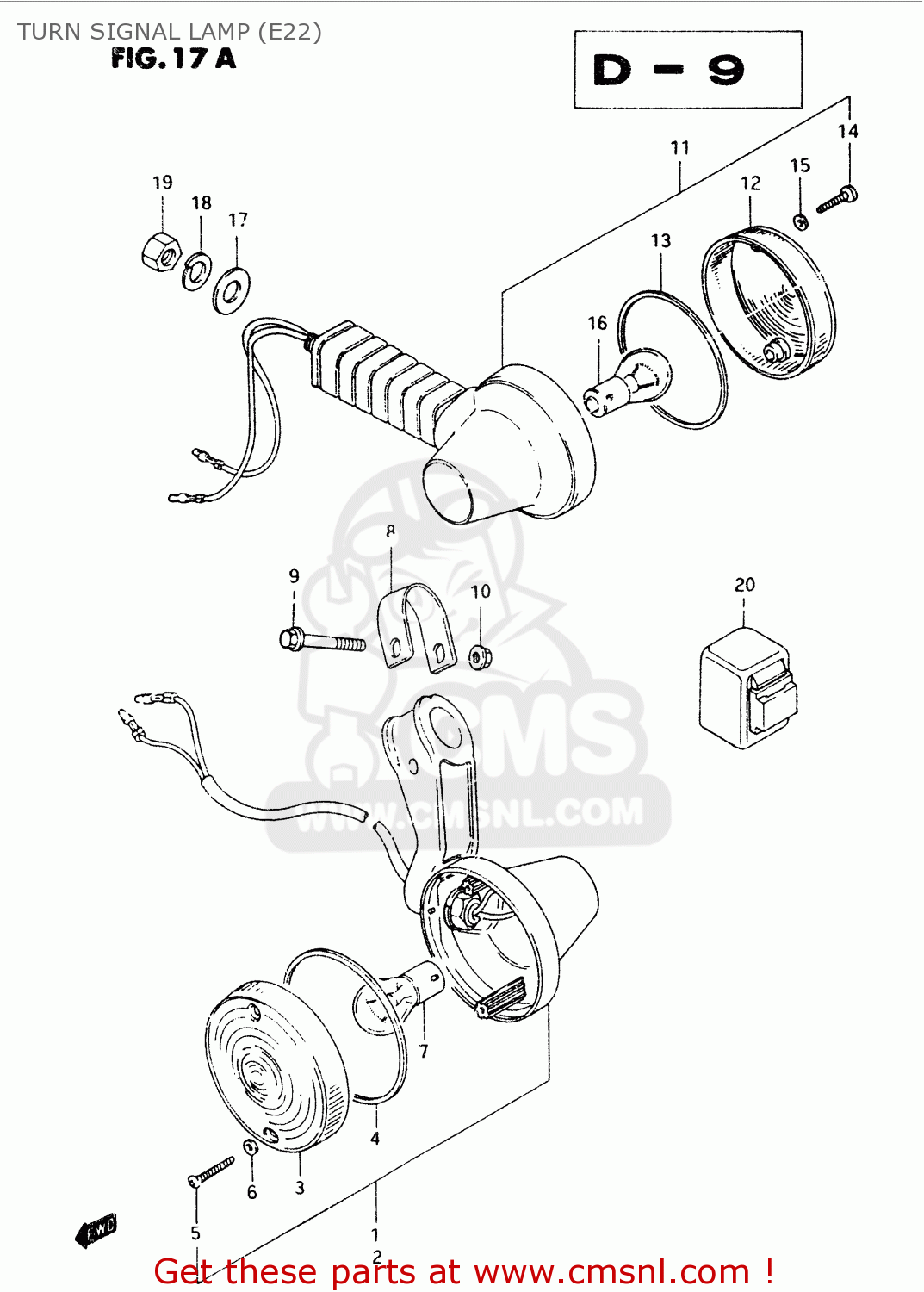

Turn signal lamp (e22) diagram TS50XK 1984 (E) (E02 E16 E18 E21)
TURN SIGNAL LAMP (E22) TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
3560113690
ref: 1
LAMP, FRONT TURN SIGNAL RH
€ 39.50
2
3560213690
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 57.50
3
3561213690
ref: 3
LENS
€ 6.00
4
3561328620
ref: 4
GASKET (NAS)
€ 7.00
5
3562513690
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947112045
ref: 7
PURCHASE LOCALLY
BULB(12V21W)
€ 5.00
8
3561605210
ref: 8
PLATE
€ 5.50
9
0910305003
ref: 9
BOLT 5X42
€ 2.50
10-1
0831616055
ref: 10-1
MODEL M
NUT ,5MM
€ 2.00
10-2
0831610053
ref: 10-2
MODEL R
NUT
€ 2.50
11-1
3560313692
ref: 11-1
MODEL M
LAMP ASSY, REAR TURN SIGNAL
€ 0.00
11-2
3560313A60
ref: 11-2
MODEL R
LAMP ASSY,FRONT TURNSIGNAL
€ 0.00
12
3561213690
ref: 12
LENS
€ 6.00
13
3561328620
ref: 13
GASKET (NAS)
€ 7.00
14
3562513690
ref: 14
SCREW
€ 1.50
15
3562743010
ref: 15
GASKET (NAS)
€ 2.00
16
0947112045
ref: 16
PURCHASE LOCALLY
BULB(12V21W)
€ 5.00
17
0916012048
ref: 17
WASHER (12.5X26X1.6)
€ 2.00
18
0832121125
ref: 18
WASHER
€ 2.50
19-1
0831012125
ref: 19-1
MODEL M
NUT 12MM
€ 2.50
19-2
0831000123
ref: 19-2
MODEL R
NUT
€ 2.50
20
3861045091
ref: 20
RELAY ASSY,TUR
€ 67.50
