FRONT WHEEL
TS50XK 1984 (E) (E02 E16 E18 E21)

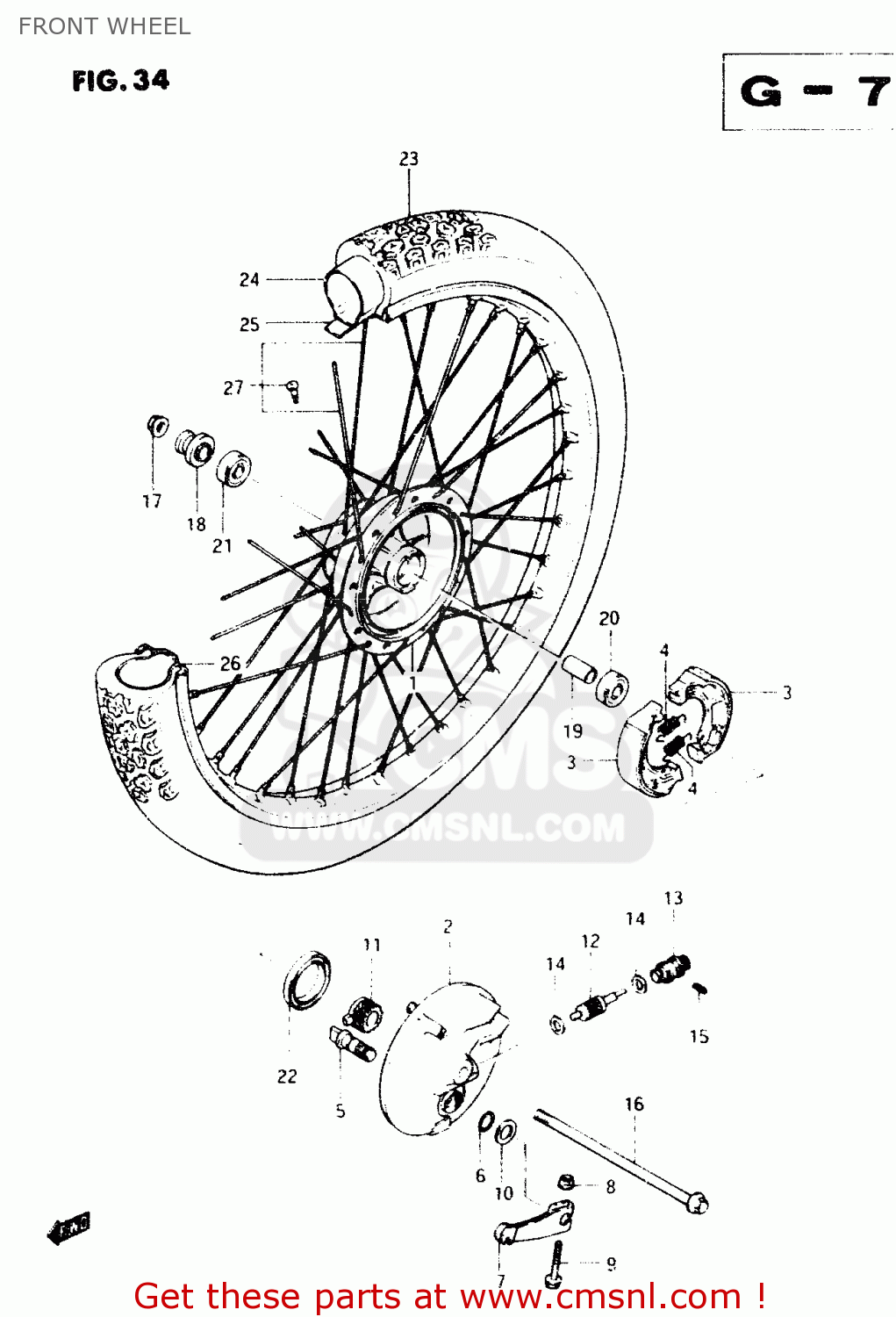

Front wheel diagram TS50XK 1984 (E) (E02 E16 E18 E21)
FRONT WHEEL TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
5411013602
ref: 1
HUB,FR WHEEL
€ 792.50
2-1
5421013600
ref: 2-1
MODEL E/G/H/J/M
PANEL, FRONT BRAKE ANKER
€ 85.50
2-2
5421013601
ref: 2-2
MODEL R
PANEL,FR BRAKE ANCHOR
€ 85.50
3-1
6441040200
ref: 3-1
->64410-13600
SHOE,BRAKE
€ 32.00
3-2
6441013600
ref: 3-2
SHOE SET,BRAKE (MCA)
€ 32.00
3-3
6441013600
ref: 3-3
MODEL M/R E17,E22
SHOE SET,BRAKE (MCA)
€ 32.00
4
0944307001
ref: 4
SPRING(L:34)
€ 2.50
5
5444126512
ref: 5
CAM,FRONT BRAKE
€ 11.50
6
0928014003
ref: 6
O-RING (D:2.4 ID:13.8)
€ 3.50
7-1
5445113600
ref: 7-1
MODEL E/G/H/J
LEVER,FRONT BRAKE CAM
€ 10.50
7-2
5445113701
ref: 7-2
MODEL M/R
LEVER,FR BRAKE CAM
€ 13.00
8-1
0915906017
ref: 8-1
MODEL E/G/H/J/M
NUT
€ 2.50
8-2
0831610063
ref: 8-2
MODEL R
NUT
€ 2.50
9-1
0151706358
ref: 9-1
MODEL E/G/H/J/M
BOLT 6X35
€ 2.50
9-2
0155006353
ref: 9-2
MODEL R
BOLT
€ 2.50
10-1
0916014001
ref: 10-1
MODEL E/G/H/J
WASHER (14.5X22X1.6)
€ 2.50
10-2
0916014003
ref: 10-2
MODEL M/R
WASHER (14.2X22X1)
€ 1.00
11
5461113600
ref: 11
GEAR,SPEEDOMETER(NT:26)
€ 7.50
12
5462126401
ref: 12
PINION,SPEEDOMETER(NT:9)
€ 12.50
13-1
5463201001
ref: 13-1
MODEL E/G/H/J/M FOR
BUSH,METER GEAR OUTER
€ 9.00
13-2
5463202201
ref: 13-2
MODEL R FOR 54210-13
BUSH,SPEEDOMETER PINION OUTER
€ 6.50
14
0916005001
ref: 14
WASHER (5.1X9X0.4)
€ 2.00
15
0913403101
ref: 15
MODEL E/G/H/J/M FOR
SCREW
€ 1.50
16
5471113601
ref: 16
<-54711-13600
AXLE,FR
€ 25.50
17
0831931107
ref: 17
NUT
€ 3.00
18
5474020400
ref: 18
SPACER,FRONT AXLE,RIGHT
€ 14.00
19
0918010012
ref: 19
SPACER(10.2X16X47)
€ 6.50
20
0814362007
ref: 20
BEARING
€ 11.50
21
0926210011
ref: 21
BEARING
€ 12.00
22
0928543001
ref: 22
OIL SEAL (43X58X7)
€ 10.00
23
5510026400
ref: 23
TIRE, FRONT (2.50-21) IRC
€ 89.50
24
5520026410
ref: 24
TUBE ASSY,FR WHEEL INNER
€ 24.50
25
5526116510
ref: 25
PROTECTOR,WHEEL,INNER
€ 5.00
26-1
5531113600
ref: 26-1
MODEL E MODEL R E1,E
RIM,FR WHEEL(1.40X21)
€ 74.50
26-2
5531113610
ref: 26-2
MODEL G/H/J/M MODEL
RIM, FRONT WHEEL (1.40X21) GOLD
€ 109.50
27-1
5532013600
ref: 27-1
MODEL E/G/H
SPORK ASSY, FRONT WHEEL
€ 56.50
27-2
5532013610
ref: 27-2
MODEL J/M/R
SPOKE ASSY,FR WHEEL
€ 56.50
