CRANKSHAFT
TS50XK 1984 (E) (E02 E16 E18 E21)

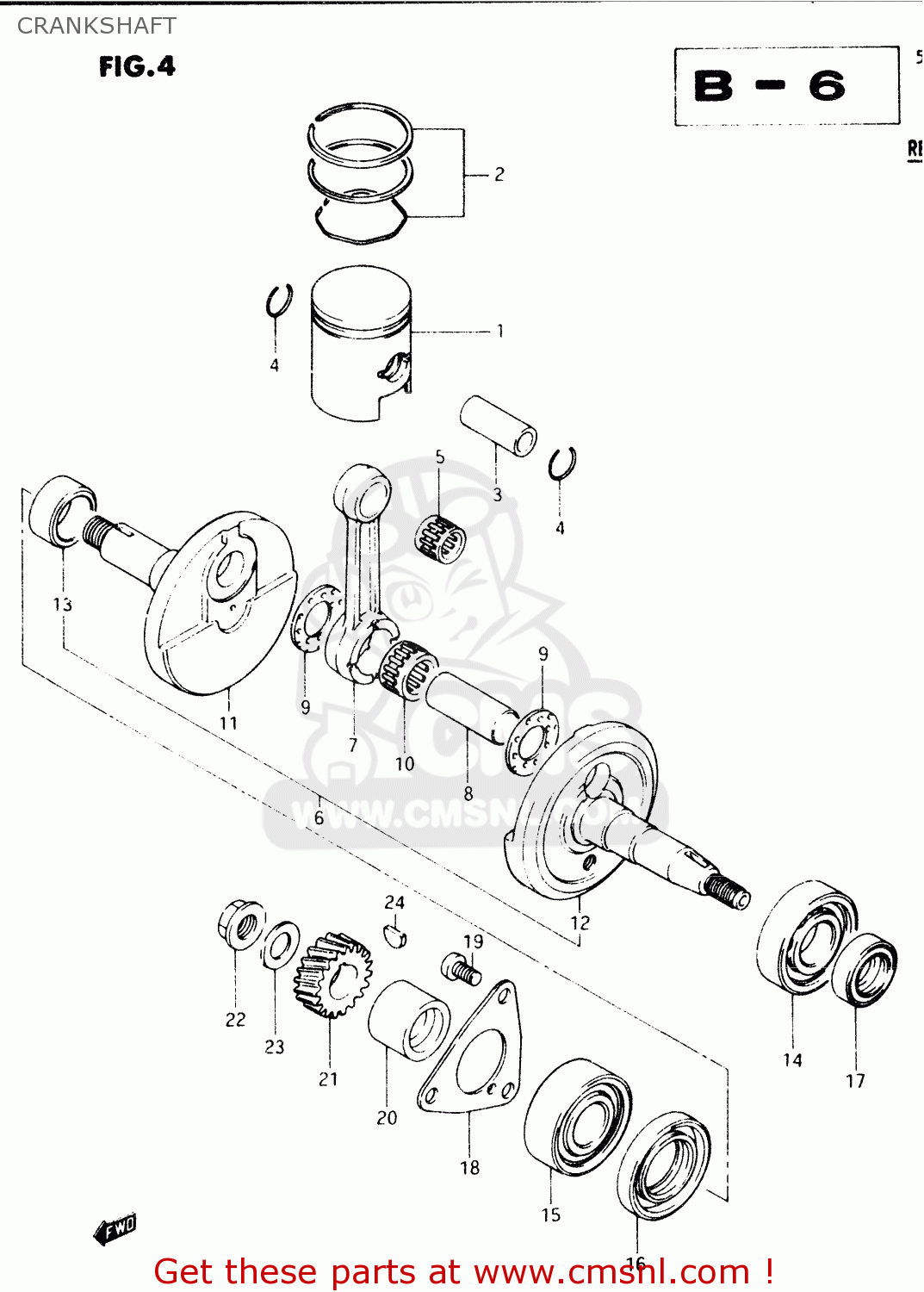

Crankshaft diagram TS50XK 1984 (E) (E02 E16 E18 E21)
CRANKSHAFT TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211043000
ref: 1-1
E2,E6,E16,E18,E22,E2
PISTON (41.00MM)
€ 44.00
1-2
1211043000050
ref: 1-2
OPT,E2,E6,E16,E18,E2
PISTON (41.50MM)
€ 84.50
1-3
1211043000100
ref: 1-3
OPT,E2,E6,E16,E18,E2
PISTON (42.00MM)
€ 71.50
1-4
1211013631
ref: 1-4
E1,E21
PISTON (41.00MM)
€ 49.50
1-5
1211013631050
ref: 1-5
E1,E21 OPT
PISTON, (41.50
€ 69.50
1-6
1211013631100
ref: 1-6
E1,E21 OPT
PISTON (OS:1.0)
€ 537.00
1-7
12110461300F0
ref: 1-7
E17 <-12110-46104
PISTON(41.00MM)
€ 44.00
1-8
1211046130050
ref: 1-8
OPT,E17 <-12110-4610
PISTON (OS:0.5)
€ 71.50
1-9
1211046130100
ref: 1-9
OPT,E17 <-12110-4610
PISTON
€ 79.00
2-1
1214016B10
ref: 2-1
E2,E6,E16,E18,E22,E2
RING SET,PISTON
€ 31.00
2-2
1214046110
ref: 2-2
E17
RING SET,PISTON
€ 55.50
2-3
1214046110050
ref: 2-3
OPT,E2,E6,E16,E17,E1
RING SET,PISTON(OS:0.50)
€ 24.50
2-4
1214046110100
ref: 2-4
OPT,E2,E6,E16,E17,E1
RING SET,PISTON(OS:1.0)
€ 53.00
2-5
1214004721
ref: 2-5
E1,E21
RING SET,PISTON
€ 47.50
2-6
1214004721050
ref: 2-6
E1,E21 OPT
RING SET, PISTON (OS:0.5)
€ 12.50
2-7
1214004721100
ref: 2-7
E1,E21 OPT
RING SET, PISTON (OS:1.0)
€ 30.00
3
1215104700
ref: 3
PIN,PISTON
€ 9.00
4
0938112001
ref: 4
RING,SNAP
€ 1.50
5
0926312020
ref: 5
ROLLER BEARING (12X16X1
€ 9.00
6
1220004730
ref: 6
CRANKSHAFT
€ 248.50
7
1216104710
ref: 7
ROD,CONNECTING
€ 52.50
8
1221104711
ref: 8
PIN,CRANK
€ 14.50
9
0916016021
ref: 9
WASHER(16X29X1)
€ 4.50
10
0926316016
ref: 10
BEARING
€ 19.00
11
1222104711
ref: 11
CRANKSHAFT, RH
€ 95.50
12
12261047120A0
ref: 12
CRANKSHAFT,LH
€ 92.50
13
0918020089
ref: 13
SPACER(20X28X10)
€ 7.00
14
09262201290A0A
ref: 14
BEARING(20X47X14)
€ 36.00
15
0926220064
ref: 15
BEARING(20X47X14)
€ 21.00
16
0928328013
ref: 16
SEAL,OIL(28X47X7.3)
€ 8.00
17
0928318004
ref: 17
SEAL,OIL(18X30X8)
€ 5.00
18
1254113700
ref: 18
RETAINER
€ 6.00
19-1
0211206128
ref: 19-1
MODEL E/G/H/J/M
SCREW 6X12
€ 2.00
19-2
0211206123
ref: 19-2
MODEL R
SCREW
€ 1.50
20
0918016028
ref: 20
SPACER
€ 7.50
21
2111104700
ref: 21
GEAR,PRIMARY DRIVE
€ 31.00
22
0915912005
ref: 22
NUT
€ 4.00
23
0916412016
ref: 23
WASHER
€ 5.00
24
0834131039
ref: 24
KEY
€ 2.00
