REAR SWINGING ARM (MODEL E/G/H/J E1,E2,E21,E25,MODEL J E18)

TS50XK 1984 (E) (E02 E16 E18 E21)

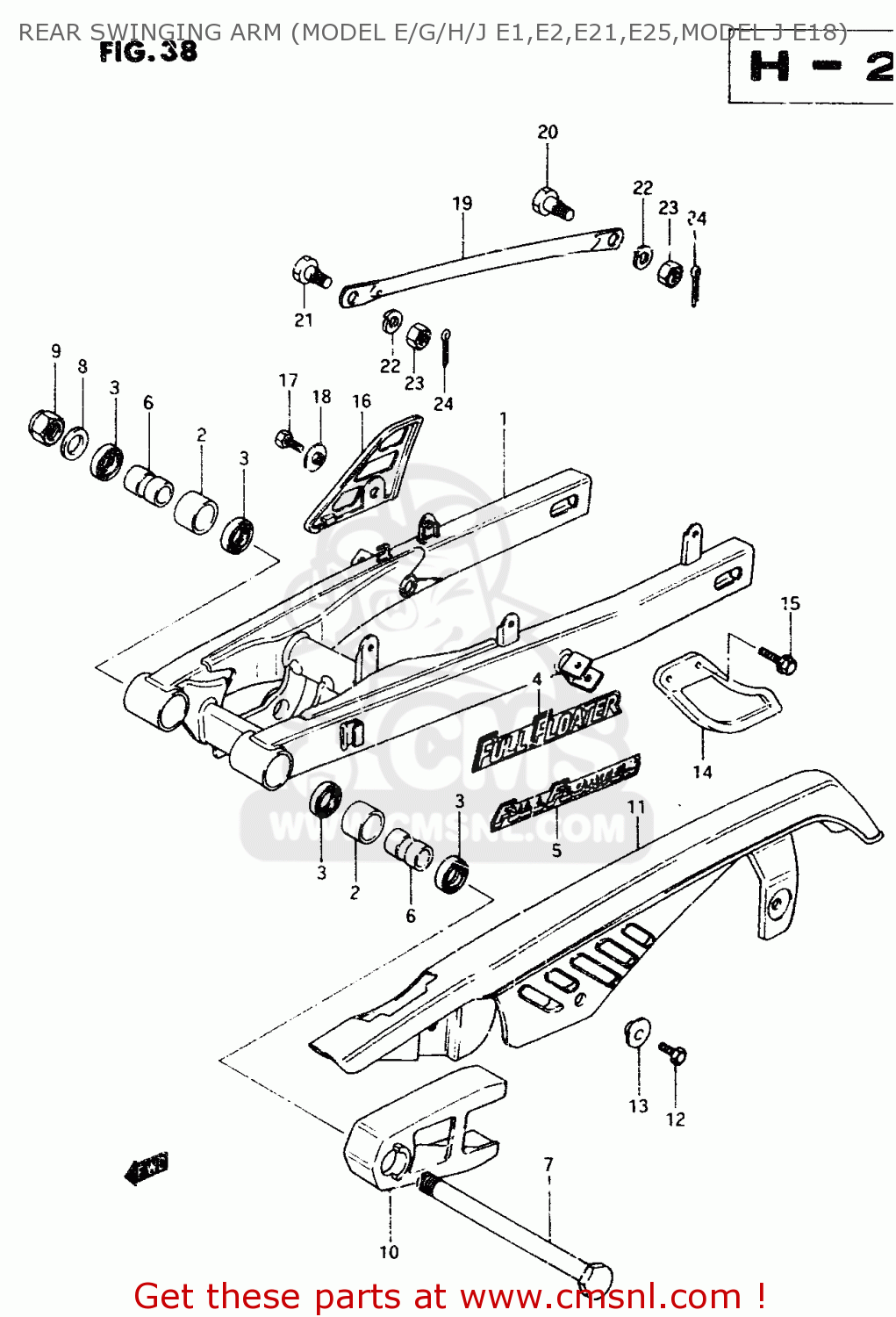

Rear swinging arm (model e/g/h/j e1,e2,e21,e25,model j e18) diagram TS50XK 1984 (E) (E02 E16 E18 E21)

REAR SWINGING ARM (MODEL E/G/H/J E1,E2,E21,E25,MODEL J E18) TS50XK 1984 (E) (E02 E16 E18 E21)
REAR SWINGING ARM (MODEL E/G/H/J E1,E2,E21,E25,MODEL J E18) TS50XK 1984 (E) (E02 E16 E18 E21)
REAR SWINGING ARM (MODEL E/G/H/J E1,E2,E21,E25,MODEL J E18) TS50XK 1984 (E) (E02 E16 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
610001362408C
ref: 1-1
MODEL E ->61000-1366
SWINGING ARM ASSY, REAR (GOLD)
€ 334.00
1-2
610001366113L
ref: 1-2
MODEL G/H/J <-61000-
SWINGING ARM ASSY, REAR (SILVER)
610001366113L
€ 334.00
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
6126113700
€ 8.00
3
0928520005
ref: 3
OIL SEAL
0928520005
€ 5.00
4
683812092097J
ref: 4
MODEL E
EMBLEM
€ 0.00
5
683810341097J
ref: 5
MODEL G/H/J
EMBLEM,SWING ARM
683810341097J
€ 7.00
6
6125113700
ref: 6
SPACER,RR SWINGING ARM PIVOT
6125113700
€ 19.50
7
6121113700
ref: 7
SHAFT,RR
6121113700
€ 14.00
8
0832211148
ref: 8
WASHER
0832211148
€ 2.00
9
0831921148
ref: 9
NUT 14MM
0831921148
€ 3.00
10
6127313610
ref: 10
BUFFER,CHAIN TOUCH DEFENCE
6127313610
€ 20.50
11
6131113610291
ref: 11
CASE,CHAIN
6131113610291
€ 29.50
12
0110706104
ref: 12
BOLT
€ 2.00
13
0916906026
ref: 13
WASHER
0916906026
€ 2.00
14-1
6134105250
ref: 14-1
E1,E2,E21
GUIDE,CHAIN
6134105250
€ 13.00
14-2
6134113710
ref: 14-2
E18,E25
GUIDE,CHAIN
6134113710
€ 14.00
15
0151706164
ref: 15
BOLT
€ 2.50
16
6139113610291
ref: 16
GUARD, FOOT (BLACK)
6139113610291
€ 12.00
17
0110706104
ref: 17
BOLT
€ 2.00
18
0916906026
ref: 18
WASHER
0916906026
€ 2.00
19-1
643114870008C
ref: 19-1
MODEL E
LINK,REAR TORQUE
€ 11.50
19-2
643114870013L
ref: 19-2
MODEL G/H/J
TORQUE LINK,RR
643114870013L
€ 11.50
20
0911108013
ref: 20
BOLT(8X26.5)
0911108013
€ 3.00
21
0911108015
ref: 21
BOLT(8X22)
0911108015
€ 3.00
22
0832121088
ref: 22
LOCK WASHER
0832121088
€ 2.00
23
0914008008
ref: 23
NUT
0914008008
€ 1.50
24
0411120208
ref: 24
PIN 20X20
0411120208
€ 1.50
