SPEEDOMETER - TACHOMETER
TS50XK 1984 (E) (E02 E16 E18 E21)

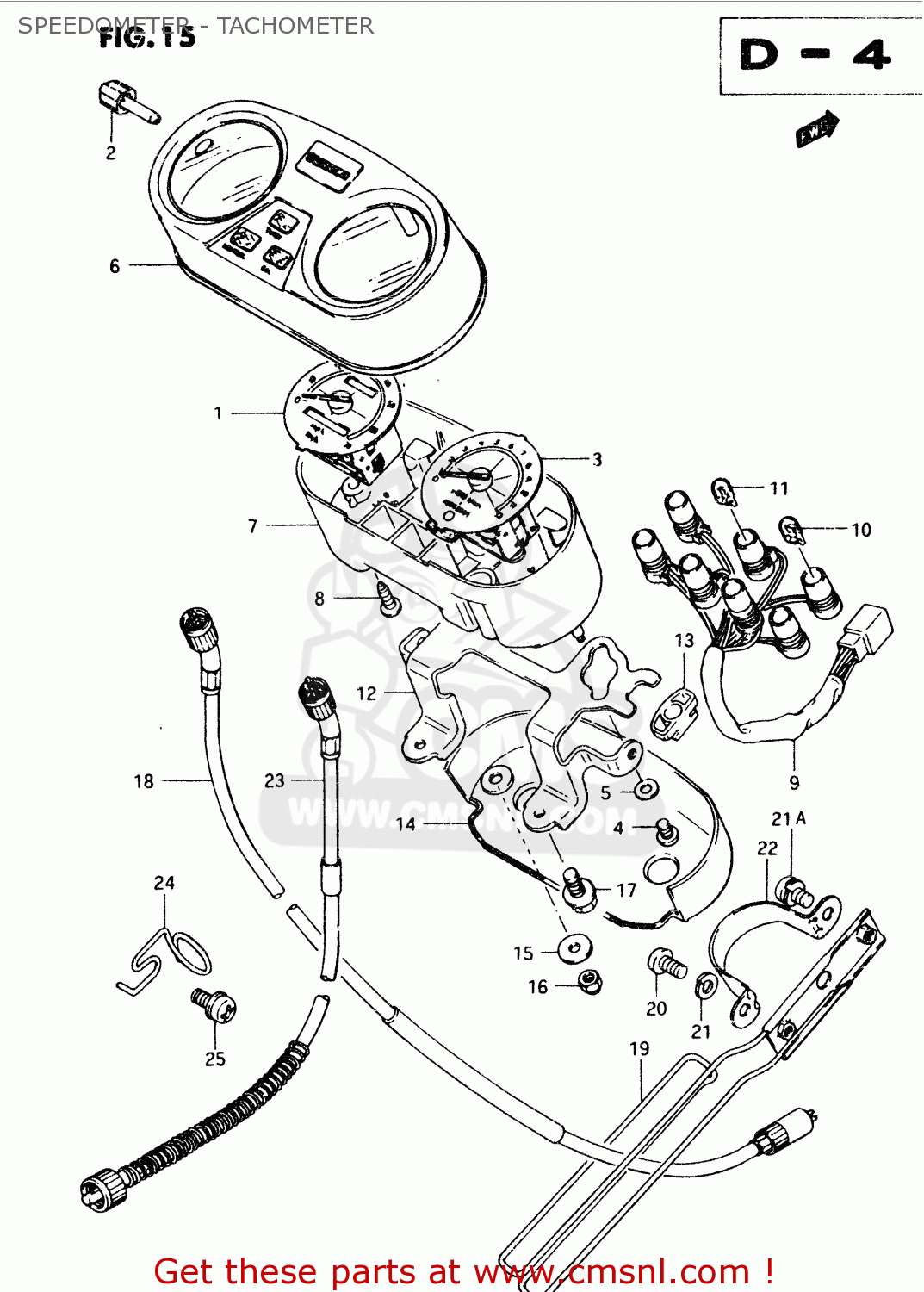

Speedometer - tachometer diagram TS50XK 1984 (E) (E02 E16 E18 E21)
SPEEDOMETER - TACHOMETER TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412013690
ref: 1-1
E2
METER,SPEED (KM/MPH)
€ 190.50
1-2
3412013670
ref: 1-2
E1,E16,E17,E18,E21,E
SPEEDOMETER (KILO)
€ 169.50
2
3498013600
ref: 2
KNOB,TRIP METER
€ 5.00
3
3422013670
ref: 3
TACHOMETER
€ 197.50
4
0211204087
ref: 4
SCREW
€ 1.50
5
0832221047
ref: 5
WASHER 4MM
€ 2.00
6
3415113670
ref: 6
HOOD,METER
€ 48.00
7
3411113700
ref: 7
CASE,METER
€ 32.50
8
0324204169
ref: 8
SCREW
€ 4.50
9
3417313690
ref: 9
SOCKET
€ 35.50
10
0947112077
ref: 10
BULB(12V1.7W,T10,WB121)
€ 1.00
11
0947112028
ref: 11
BULB(12V3.4W,T10)
€ 3.50
12
3495013670
ref: 12
BRACKET,METER
€ 38.00
13
3418932400
ref: 13
CUSHION
€ 4.00
14
3415213670
ref: 14
COVER,LWR
€ 17.00
15
0916005031
ref: 15
WASHER
€ 1.50
16
0831311055
ref: 16
NUT
€ 2.00
17-1
0111406168
ref: 17-1
MODEL E/G/H/J/M
BOLT
€ 1.50
17-2
0156006163
ref: 17-2
MODEL R
BOLT
€ 2.00
18
3491013600
ref: 18
CABLE ASSEMBLY,SPEEDOMETER
€ 34.00
19
3493037412
ref: 19
GUIDE,CABLE
€ 14.00
20
0211206207
ref: 20
MODEL E/G/H/J/M
SCREW
€ 2.00
21
0832121067
ref: 21
MODEL E/G/H/J/M
WASHER,LOCK
€ 2.50
21A
0211236203
ref: 21A
MODEL R
SCREW
€ 2.00
22
3499713610
ref: 22
CLAMP,CABLE GUIDE
€ 4.00
23
3494013610
ref: 23
CABLE ASSY,TACHOMETER
€ 37.00
24
3499713600
ref: 24
GUIDE,TACHOMETER CABLE
€ 3.00
25-1
0211216125
ref: 25-1
MODEL E/G/H/J/M
SCREW
€ 2.00
25-2
0211216123
ref: 25-2
MODEL R
SCREW
€ 2.00
