CARBURETOR
TS50XK 1984 (E) (E02 E16 E18 E21)

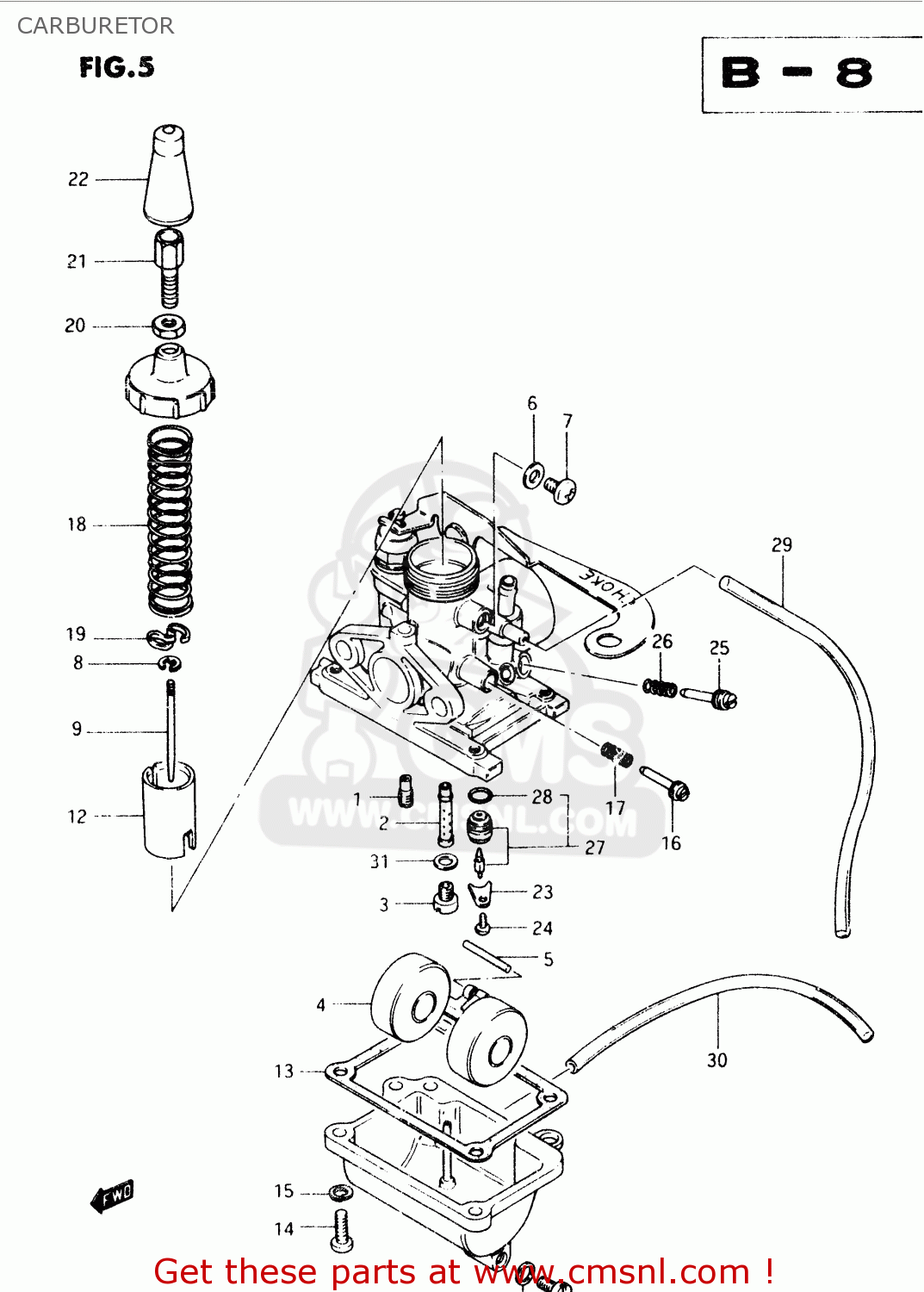

Carburetor diagram TS50XK 1984 (E) (E02 E16 E18 E21)
CARBURETOR TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
0
1320013620
ref: 0
MODEL E/G/H/J/M E2,E
CARBURETOR ASSY (VM15)
€ 198.00
0
1320013690
ref: 0
MODEL R E2,E16
CARBURETOR ASSY
€ 134.50
0
1320013620
ref: 0
MODEL E/H E18
CARBURETOR ASSY (VM15)
€ 198.00
0
1320013610
ref: 0
E1,E21
CARB.ASSY
€ 127.00
0
1320013640
ref: 0
MODEL J E18
CARBURETOR ASSY
€ 130.00
0
1320013680
ref: 0
MODEL M/R E18
CARBURETOR ASSY
€ 130.00
0
1320013650
ref: 0
E17
CARBURETOR ASSY
€ 129.50
0
1320013670
ref: 0
MODEL M E22
CARBURETOR ASS
€ 154.50
0
1320013690
ref: 0
MODEL R E22
CARBURETOR ASSY
€ 134.50
0
1320034B00
ref: 0
E25
CARBURETOR ASSY
€ 88.50
1-1
0949217006
ref: 1-1
JET,PILOT(17.5)
€ 7.50
1-2
0949225002
ref: 1-2
E17
JET
€ 8.50
1-3
0949212005
ref: 1-3
MODEL M/R E18
JET,PILOT(12.5)
€ 8.00
1-4
0949212006
ref: 1-4
E22
JET, PILOT (12.5)
€ 8.00
2-1
0949400443
ref: 2-1
E2,E16,MODEL E/H/J E
JET
€ 16.00
2-2
0949400734
ref: 2-2
E17
JET, NEEDLE (E-6)
€ 0.00
2-3
0949400735
ref: 2-3
MODEL M/R E18
JET, NEEDLE (F-0)
€ 31.50
2-4
0949400419
ref: 2-4
E1,E21
JET,NEEDLE
€ 12.00
2-5
0949400758
ref: 2-5
E22
JET,NEEDLE(F-5)
€ 0.00
2-6
0949400534
ref: 2-6
E25
JET, NEEDLE (D-8)
€ 13.50
3-1
0949167003
ref: 3-1
E2,E16,E18
JET,MAIN(67.5)
€ 9.00
3-2
0949170012
ref: 3-2
E17
JET,PILOT AIR(70)
€ 7.50
3-3
0949180009
ref: 3-3
E1,E21
JET,MAIN(80)
€ 9.50
3-4
0949170010
ref: 3-4
E22
JET,MAIN(70)
€ 9.00
3-5
0949167004
ref: 3-5
E25
JET,MAIN(67.5)
€ 6.00
4-1
1325246110
ref: 4-1
FLOAT
€ 24.00
4-2
1325002500
ref: 4-2
MODEL M E17,E22 MODE
FLOAT
€ 16.50
5
1325420010
ref: 5
PIN,FLOAT
€ 3.00
6
1352346110
ref: 6
GASKET,DRAIN PLUG (NAS)
€ 3.00
7
0211205063
ref: 7
SCREW
€ 2.00
8
1339412110
ref: 8
CLIP,NEEDLE
€ 3.00
9-1
1338313620
ref: 9-1
E2,E16,MODEL E/H/J E
NEEDLE,JET
€ 9.50
9-2
1338302100
ref: 9-2
E17
NEEDLE, JET
€ 13.50
9-3
1338313680
ref: 9-3
MODEL M/R E18
NEEDLE,JET
€ 11.50
9-4
1338313610
ref: 9-4
E1,E21
NEEDLE,JET
€ 9.50
9-5
1338313670
ref: 9-5
E22
NEEDLE,JET
€ 13.50
9-6
1338326900
ref: 9-6
E25
NEEDLE,JET
€ 11.50
10
1324705010
ref: 10
PLUG
€ 6.00
11
1324905010
ref: 11
GASKET,DRAIN,PLUG (NAS)
€ 1.50
12-1
1355146750
ref: 12-1
E2,E16,E18,E22
VALVE,THROTTLE(CA:2.0)
€ 38.00
12-2
1355146780
ref: 12-2
E17
VALVE, PISTON (CA:2.5)
€ 0.00
12-3
1355113610
ref: 12-3
E1,E21
VALVE,THROTTLE
€ 18.50
12-4
1355146180
ref: 12-4
E25
VALVE,THROTTLE
€ 26.50
13
1325102410
ref: 13
GASKET (NAS)
€ 4.50
14
0211204167
ref: 14
SCREW
€ 1.00
15
0832121047
ref: 15
WASHER,LOCK 4M
€ 2.00
16
1326701010
ref: 16
SCREW,THROTTLE STOP
€ 6.00
17
1326801010
ref: 17
SPRING
€ 3.50
18
1357346710
ref: 18
SPRING,THROTTLE VALVE RETURN
€ 3.00
19
1358107910
ref: 19
PLATE
€ 6.50
20
1366116600
ref: 20
NUT
€ 5.00
21-1
1357722600
ref: 21-1
ADJUSTER,CABLE
€ 6.00
21-2
1357748110
ref: 21-2
E25,MODEL M E17,E22
ADJUSTER,CABLE
€ 8.00
22-1
1368133010
ref: 22-1
CAP,CABLE ADJUSTER
€ 8.00
22-2
1368116600
ref: 22-2
E25,MODEL M E17,E22
CAP,RUBBER
€ 7.00
23
1337346710
ref: 23
PLATE,NEEDLE VALVE FITING
€ 4.50
24
0211203086
ref: 24
SCREW
€ 1.50
25-1
1326904010
ref: 25-1
EXCEPT MODEL J/M E18
SCREW,AIR
€ 10.00
25-2
1326903A72
ref: 25-2
E22
SCREW,AIR
€ 7.50
26
1326801010
ref: 26
EXCEPT MODEL J/M E18
SPRING
€ 3.50
27
1337046710
ref: 27
VALVE ASSY,NEEDLE
€ 44.00
28
1337446710
ref: 28
O RING
€ 4.50
29
1368336A00
ref: 29
1:300->200
HOSE
€ 8.00
30
1368336A00
ref: 30
1:300->160 E1,E21 L:
HOSE
€ 8.00
31
1338604700
ref: 31
PACKING,MAIN JET (NAS)
€ 2.50
